Power Bipolar Junction Transistor BJT

TL;DR

Power bipolar junction transistors handle high voltage and current with fast operation, crucial for high-frequency applications.

Transcript

hello friends today we are going to discuss about power bipolar junction transistor as we all discussed about power diode so the term power gets included with any power semiconductor device because when we use power diode or power bjt that means it is capable of handling high voltage and high current and again it is very fast because the reverse re... Read More

Key Insights

• 💨 Power bipolar junction transistors handle high voltage/current with fast switching due to low reverse recovery time.

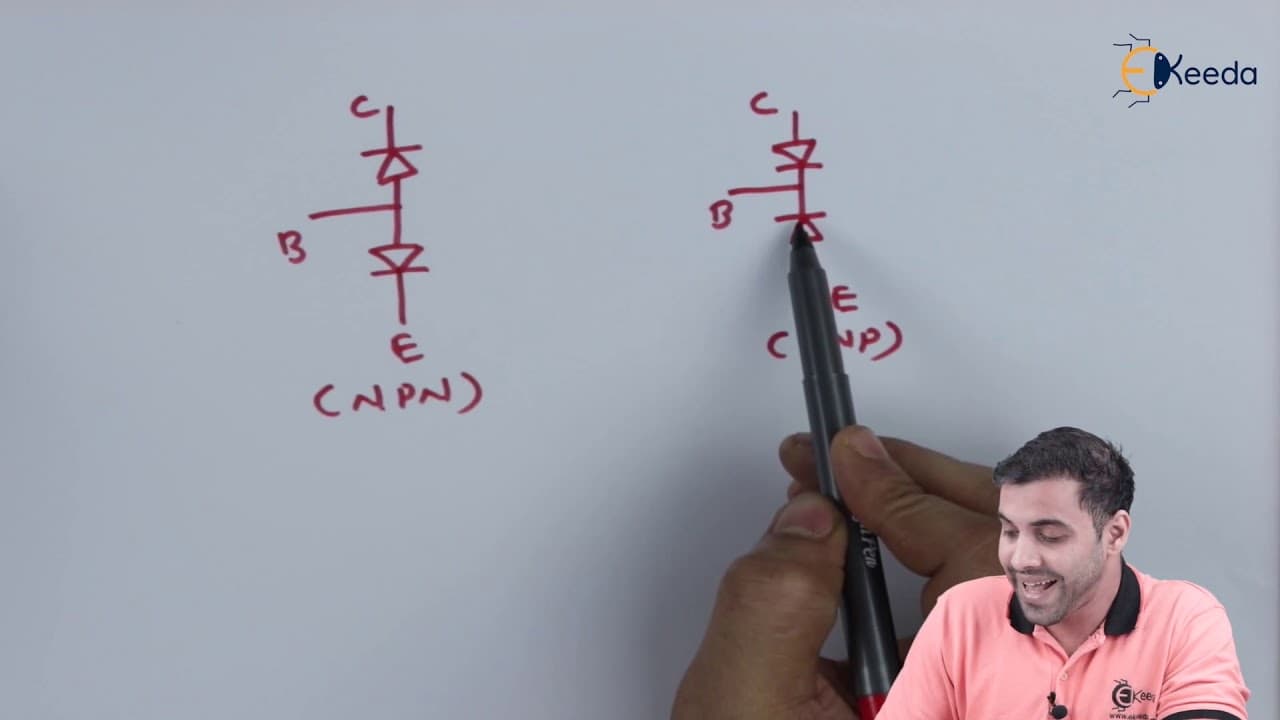

• 👷 Construction differs between NP and PNP transistors, affecting current flow direction.
• ⚡ The presence of an N- region allows power bipolar junction transistors to withstand high current/voltage.

Questions & Answers

Q: What is the significance of using power bipolar junction transistors in high-frequency applications?

Power bipolar junction transistors have low reverse recovery time, making them suitable for high-frequency operations due to their fast switching capabilities.

Q: How does the construction of an NP and PNP transistor differ?

NP transistors have diodes connected with opposite-facing anodes, while PNP transistors have diodes connected with cathodes, allowing for different current flow directions.

Q: What sets power bipolar junction transistors apart from normal transistors?

Power bipolar junction transistors can handle higher current and voltage due to the N- region, making them suitable for high-power applications compared to normal transistors.

Q: What are the key applications of power bipolar junction transistors?

Power bipolar junction transistors are used in power converter circuits, electric motor control drives, and high-frequency applications due to their fast operation and high current/voltage capabilities.

Summary & Key Takeaways

• Power bipolar junction transistors handle high voltage and current with fast operation due to low reverse recovery time.

• They consist of NP and PNP transistors, each with different symbolic and junction diagrams.

• The presence of an N- region allows power bipolar junction transistors to withstand high current and voltage.
