Single and Multi Channel Data Acquisition System

TL;DR

Data acquisition systems collect, process, and store data from the physical world for analysis.

Transcript

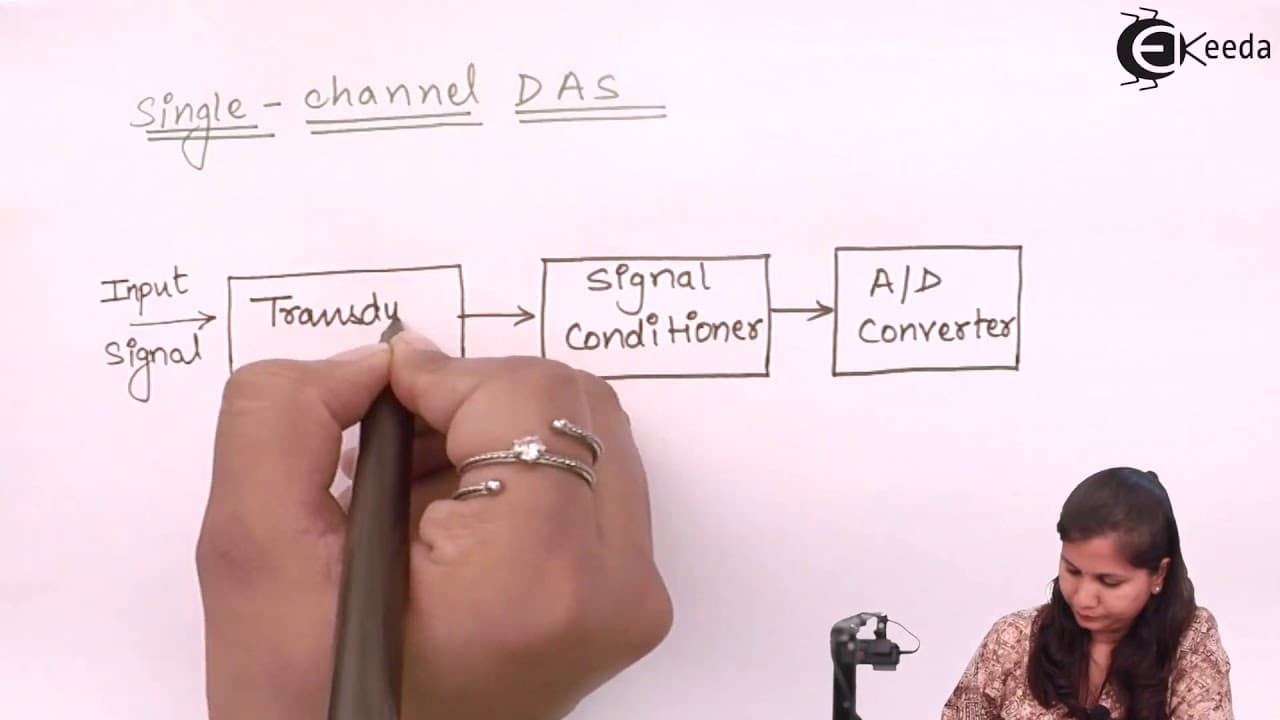

hello friends in this video we will study about single channel and multi-channel data acquisition systems here we will study the block diagram of single channel and multi-channel das then we will see its applications and the function of its various components so let us start with our topic before starting with the two types of the data acquisition ... Read More

Key Insights

• 🏪 Data acquisition systems collect, process, and store data for analysis and monitoring in industries.
• 😄 Transducers, sensors, and A/D converters are essential components in data acquisition systems.
• 🔠 Single channel systems have one input source, while multi-channel systems handle multiple inputs.
• ✖️ A multiplexer in multi-channel systems streamlines data collection from various input sources.
• 💁 A/D converters convert analog signals into digital format for easy storage and analysis.
• 📡 Amplification of weak signals and signal conditioning are crucial in data acquisition systems.
• 😄 Dual slope and successive approximation techniques are used in A/D converters, depending on signal requirements.

Questions & Answers

Q: What is the primary function of a data acquisition system?

The main purpose of a data acquisition system is to collect, process, and store data from the physical world for analysis and monitoring purposes in various industries.

Q: What are the components of a data acquisition system?

Components include transducers, sensors, signal conditioning units, A/D converters, and recording/display devices, all involved in data collection, processing, and storage.

Q: What distinguishes a single channel from a multi-channel data acquisition system?

Single channel systems have one input source, while multi-channel systems can handle multiple input sources through a multiplexer unit, streamlining data collection and processing.

Q: How do A/D converters work in data acquisition systems?

A/D converters convert analog signals from transducers into digital signals for storage or display, essential for processing and analyzing captured data.

Summary & Key Takeaways

• Data acquisition systems gather, process, and store data from the physical world.

• They are vital in industrial settings where real-time data monitoring is crucial.

• Systems can be single channel or multi-channel, each with specific components and functions.
