Mat Foundation Design

TL;DR

Learn how to design a mat foundation step by step using standard foundation software.

Transcript

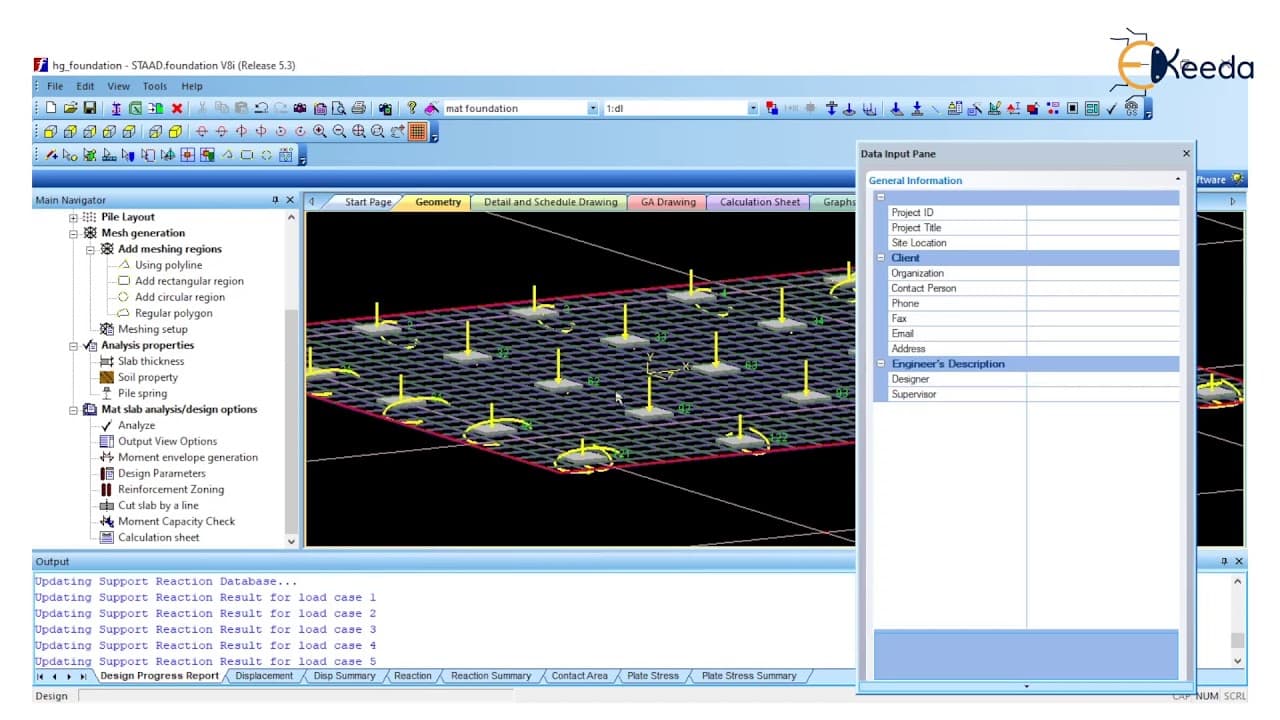

hey guys welcome back in this lecture we will learn how to design a mat foundation by standard foundation software for this just create a geometry of your building and go to general provide all the properties property of beam column and slab thickness to the structure then go to support and provide all the supports then go to load and definition an... Read More

Key Insights

• ❣️ The mat foundation design process involves creating a building geometry, providing properties, supports, loads, and analyzing for zero error.
• 📶 Design parameters such as material strengths, cover thickness, bar sizes, spacing, and reinforcement zones are critical for a robust mat foundation.
• ❣️ Moment capacity checks are essential to validate the structural integrity and safety of the mat foundation design.
• 🤢 Proper reinforcement zoning ensures the distribution of steel bars for optimal load-bearing capacity in the mat foundation.
• ❣️ Soil conditions, subgrade modulus, and density play a significant role in determining the foundation properties for the mat design.
• ❣️ Utilizing standard foundation software simplifies the design process and ensures accurate calculations for the mat foundation.
• 💌 The mat foundation design involves mesh generation, analysis, and moment envelope generation to evaluate structural performance.

Questions & Answers

Q: What are the key steps involved in designing a mat foundation using standard foundation software?

The key steps include creating a building geometry, providing properties, supports, loads, analyzing for zero error, configuring design parameters and reinforcement zones, and performing moment capacity checks.

Q: How is slab thickness determined in the mat foundation design process?

Slab thickness is determined by providing the desired thickness in the foundation design software, considering the structural requirements, soil conditions, and load calculations for optimal performance.

Q: Why is it important to analyze the structure for zero error before proceeding with foundation design?

Analyzing the structure for zero error ensures the accuracy of calculations, load distributions, and overall stability of the mat foundation, preventing potential design flaws and structural failures.

Q: What factors are considered when configuring design parameters for mat foundation design?

Factors such as material strengths, cover thickness, bar sizes, spacing, and reinforcement zones are crucial in configuring design parameters to meet the structural requirements and ensure the integrity of the mat foundation.

Summary & Key Takeaways

• Design a mat foundation by creating a geometry of the building, providing properties, supports, and loads.

• Analyze the structure for zero error before proceeding to foundation design.

• Configure design parameters, reinforcement zones, and perform moment capacity checks for a robust mat foundation.
