How to Calculate Currents in a Voltage Divider Circuit

TL;DR

To solve a voltage divider circuit with an NPN transistor, use the formula ib = (vcc * r2) / (r1 + r2) - (vbe * r1) / (r1 + r2 + (beta + 1) * re) to find base current. The collector current ic equals beta times ib, while the emitter current ie is the sum of ib and ic. For midpoint biasing, ensure vce is approximately half of the collector supply voltage.

Transcript

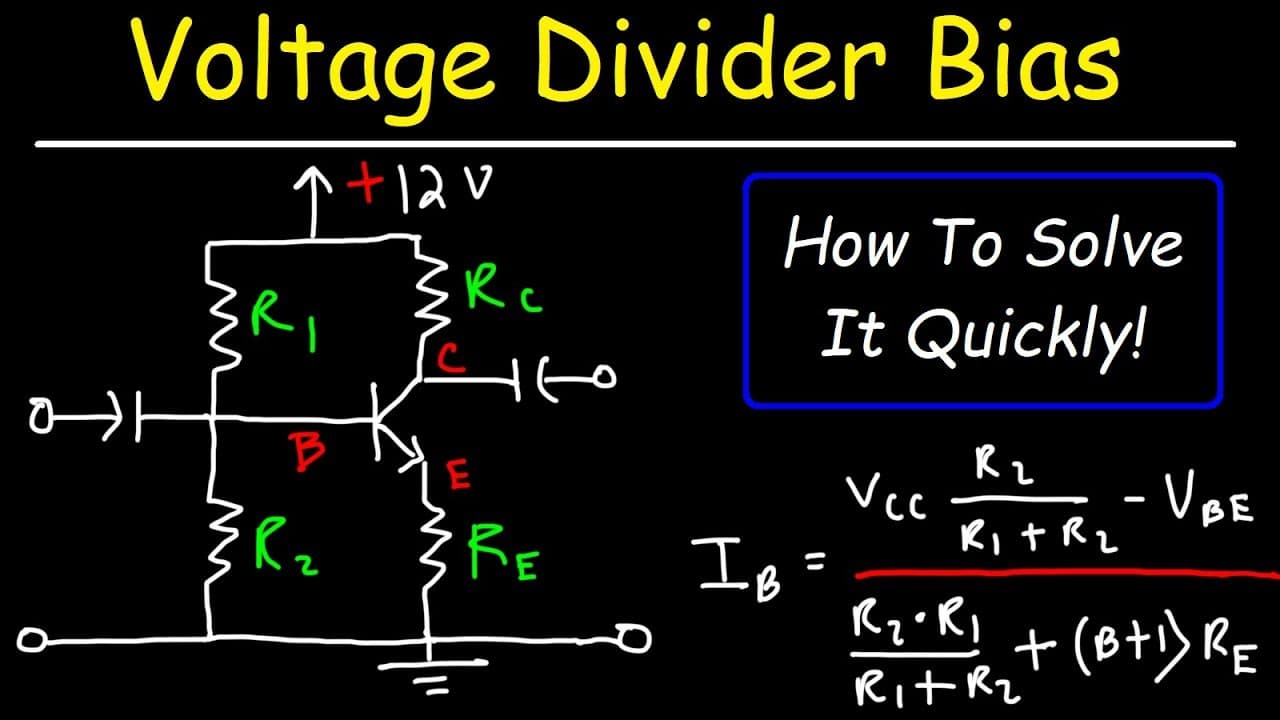

in this video we're going to talk about how to solve the voltage divider by a circuit so we're given the values of r1 r2 rc and re and we have an npn transistor which you can call q1 and our goal is to calculate the values of ib ic i1 i2 vb vc ve vce basically we're going to solve the whole circuit and then we're going to determine if this particul... Read More

Key Insights

• ⚡ The formula for calculating the base current (ib) in a voltage divider circuit with an NPN transistor takes into account the supply voltage, resistances, and the base-emitter voltage.
• ✖️ The collector current (ic) is determined by multiplying the base current (ib) by the transistor's beta value.
• 🍹 The emitter current (ie) is the sum of the base current (ib) and the collector current (ic).
• 😥 The potentials at points e, b, and c can be calculated using the emitter current, the base-emitter voltage, and the collector supply voltage.
• ⚡ The transistor amplifier in the circuit is midpoint biased if the voltage drop between the collector and emitter is approximately one half of the collector supply voltage.

Questions & Answers

Q: How do you calculate the base current in the voltage divider circuit?

The base current (ib) can be calculated using the formula: ib = (vcc * r2) / (r1 + r2) - (vbe * r1) / (r1 + r2 + (beta + 1) * re). This formula takes into account the supply voltage (vcc), resistances (r1, r2, re), and the base-emitter voltage (vbe).

Q: What is the collector current in the circuit?

The collector current (ic) is equal to the product of the base current (ib) and the transistor's beta value. So, ic = beta * ib.

Q: Can you explain how to find the value of the emitter current (ie)?

The emitter current (ie) is the sum of the base current (ib) and the collector current (ic). So, ie = ib + ic.

Q: How can you determine if the transistor amplifier in the circuit is midpoint biased?

The transistor amplifier is midpoint biased if the voltage drop between the collector and emitter (vce) is approximately one half of the collector supply voltage (vcc). Calculate vce by subtracting the potential at point e (ve) from the potential at point c (vc), and compare it to vcc/2.

Summary & Key Takeaways

• The video explains how to solve a voltage divider circuit with an NPN transistor and calculate the values of ib, ic, i1, i2, vb, vc, and ve.

• The formula to calculate ib is ib = (vcc * r2) / (r1 + r2) - (vbe * r1) / (r1 + r2 + (beta + 1) * re).

• The collector current ic is equal to beta times the base current ib.

• The emitter current ie is the sum of ib and ic.

• The potentials at points e, b, and c can be calculated using the emitter current, vb = ve + vbe, and vc = vcc - (ic * rc).
