How Do Power Zener Diodes Regulate Voltage Effectively?

TL;DR

Power Zener diodes regulate voltage effectively by maintaining a steady output voltage, typically around 12V, regardless of variations in input voltage or load resistance. As the current through the diode changes, it slightly affects the output voltage, but it remains relatively constant due to the diode's design, allowing it to operate in reverse bias mode.

Transcript

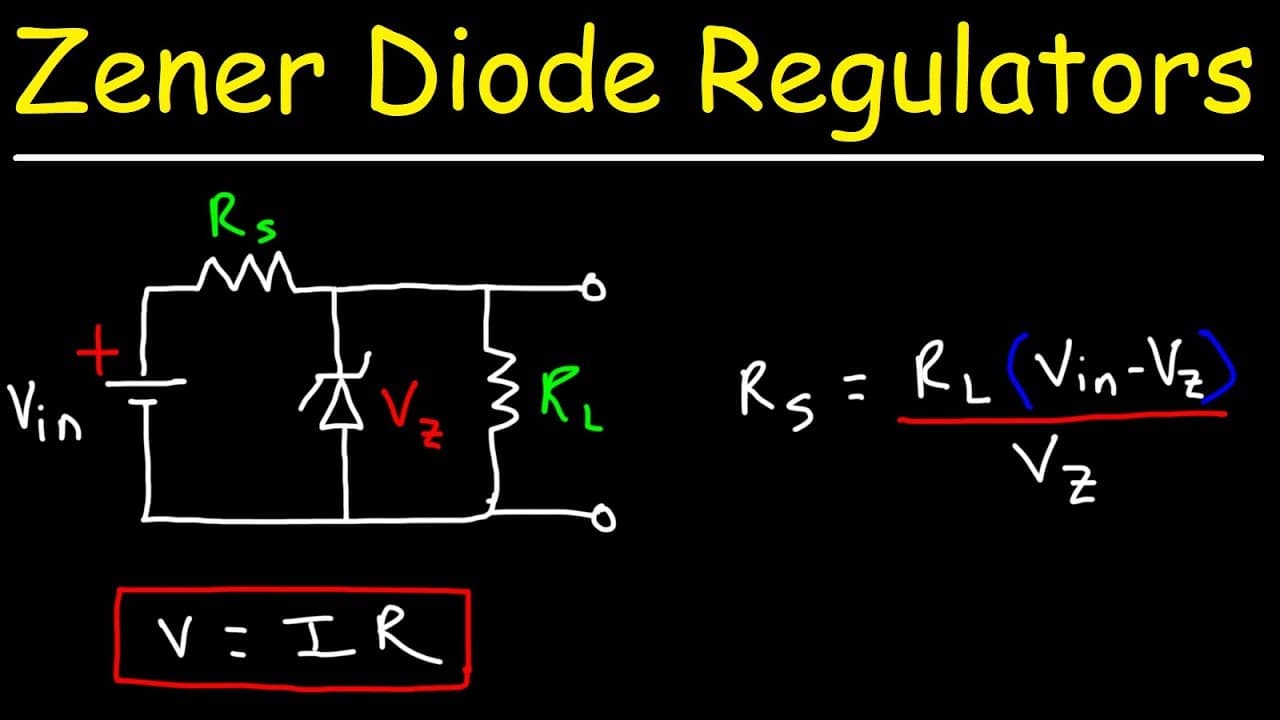

in this video we're going to focus on power zener diodes as a voltage regulators because not all xenodiodes are the same some are more effective than others at regulating the voltage so what we're going to do in this video is we're going to see the relationship between the output voltage across the zener diode with the current flowing through it th... Read More

Key Insights

• ⚡ Power Zener diodes can effectively regulate voltage by maintaining a relatively constant output voltage.
• ⚡ The output voltage remains around 12V, regardless of changes in input voltage or load resistance.
• 👻 The Zener diode operates in reverse bias mode, allowing current flow to stabilize the output voltage.
• 🙂 The current flowing through the Zener diode affects its voltage, increasing slightly with increasing current.

Questions & Answers

Q: How does a Zener diode work as a voltage regulator?

A Zener diode maintains a relatively constant output voltage regardless of the input voltage. It achieves this by allowing current flow in reverse bias mode, resulting in a voltage drop that keeps the output voltage stable.

Q: What happens if the input voltage falls below the Zener voltage?

If the input voltage is lower than the Zener voltage, the Zener diode will be off, and the output voltage will be the same as the input voltage.

Q: Why does the voltage across the Zener diode increase slightly as the current flowing through it increases?

The voltage across the Zener diode increases slightly with increasing current due to the IV characteristics of the diode. It is not a linear relationship but remains relatively constant within a wide range of currents.

Q: How does load resistance affect Zener diode voltage regulation?

When the load resistance is above a certain threshold, the Zener diode can maintain voltage regulation. However, if the load resistance falls below this threshold, voltage regulation is lost, and the output voltage will depend on the voltage divider circuit formed by the load resistance and series resistance.

Summary & Key Takeaways

• The video demonstrates the relationship between the output voltage across the Zener diode and the current flowing through it, as well as the variations in the power source.

• The Zener diode used in the video is specifically the PN1N5349B BJ53 12V 5W Zener diode.

• The experiment shows how the output voltage remains relatively constant at around 12V, despite changes in the input voltage or load resistance.
