Directional couplers are microwave passive components used for power coupling and signal analysis in waveguide-based systems.

Transcript

click the bell icon to get latest videos from akira hello friends I welcome you all to this video we are with the 12th chapter of microwave engineering where we have the various microwave components to be addressed here we started to see what exactly the microwave hybrid circuitries are there we have seen the waveguide junctions the waveguide T is ... Read More

Key Insights

• ✊ Directional couplers are microwave components used for power coupling and signal analysis in waveguide-based systems.
• 👻 They have four ports and a 4x4 scattering matrix, allowing for efficient coupling and measurement of microwave power.
• 🕳️ Different types of directional couplers exist, such as two-hole, four-hole, swinger, and Beth hole couplers, offering various coupling orientations and configurations.
• 🤩 The coupling factor is a key performance metric of a directional coupler, representing the ratio of power levels between the primary and secondary waveguides.
• 👋 Directivity is another performance metric, indicating how well a forward wave in the primary waveguide couples to the secondary waveguide.
• ❓ While ideal directivity is infinite, practical directional couplers typically have directivity values of 35 to 45 decibels.

Questions & Answers

Q: What is the purpose of a directional coupler?

Directional couplers are used to couple microwave signals and analyze their power in waveguide-based systems. They allow measurement and manipulation of microwave power levels.

Q: How many ports does a directional coupler have?

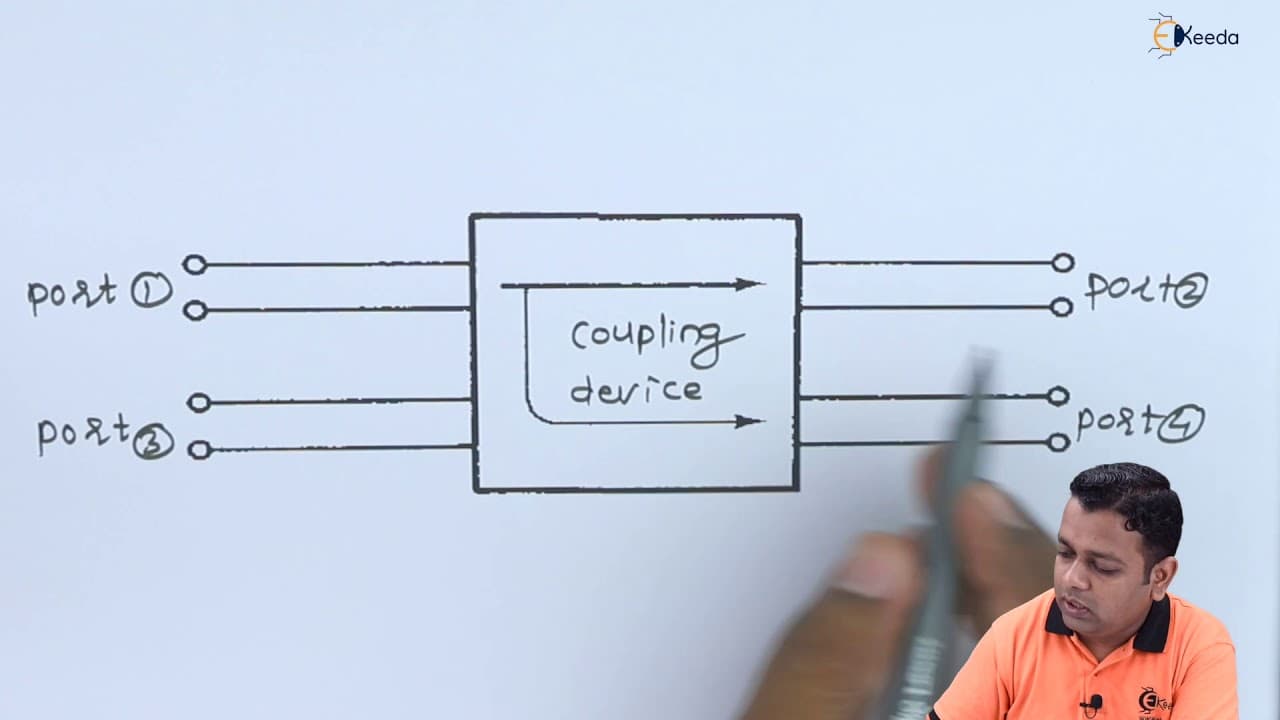

A directional coupler has four ports: one input port, one output port, and two coupled ports.

Q: What is the difference between a primary and a secondary waveguide in a directional coupler?

The primary waveguide carries the main microwave signal, while the secondary waveguide is used for analysis, measurement, or coupling to other devices.

Q: How is the coupling factor of a directional coupler defined?

The coupling factor is a measure of the power ratio between the primary waveguide and the secondary waveguide, expressed in decibels. It is calculated using the formula C = 10 log10(P1/P4).

Summary & Key Takeaways

• Directional couplers are components used to couple and analyze microwave signals in waveguide-based systems.

• They have four ports and a scattering matrix of 4x4, allowing for the coupling and measurement of microwave power.

• The primary waveguide carries the main signal, while the secondary waveguide is used for analysis or measurement.
