Problem 1: Centre and Circle of Curvature - Polar Curve - Engineering Mathematics - 2

TL;DR

Finding the circle of curvature for a given curve by calculating the first and second derivatives and using them to determine the radius and equation of the circle.

Transcript

hello so in this session we'll see the first problem on center and circle of curvature so the question is find the circle of curvature for the curve given here which is root of x plus root of y equal to root of a and the point is also mentioned that is a by 4 comma a by 4. so we know that for the radius of curvature or for the x coordinate or y coo... Read More

Key Insights

• ⭕ The problem involves finding the circle of curvature for a given curve equation by calculating its first and second derivatives.
• 😥 The first derivative represents the slope of the tangent at any point on the curve.
• 💁 The second derivative provides information about the concavity of the curve.
• ❓ The radius of curvature is determined using the first and second derivatives.
• ❓ The center of curvature can be found from the coordinates obtained using the first derivative.

Questions & Answers

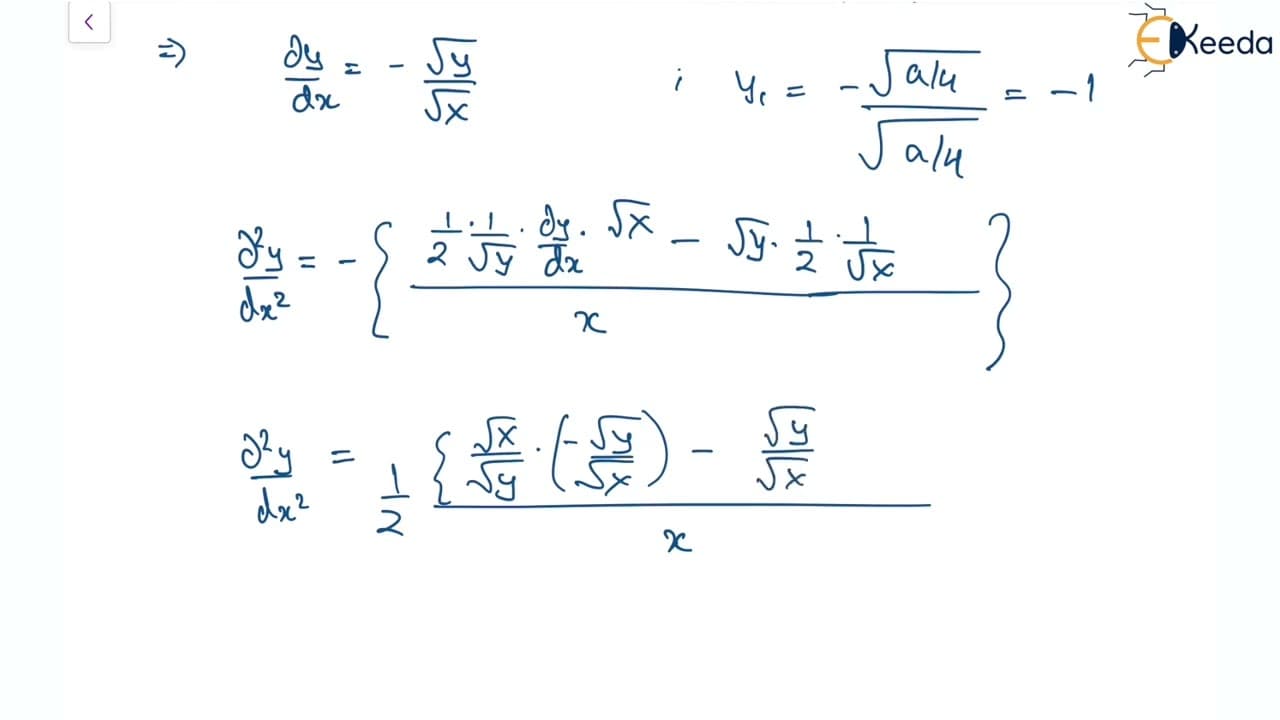

Q: What is the first and second derivative of the given curve equation?

The first derivative is found to be dy/dx = -√y/√x. The second derivative is calculated as d²y/dx² = 1/2x(1 + √y/√x).

Q: How is the first derivative calculated at a specific point?

Substitute the x and y values of the point into the first derivative expression. For example, at a point (a/4, a/4), the first derivative is -1.

Q: How is the second derivative calculated at a specific point?

Substitute the x and y values of the point into the second derivative expression. For example, at a point (a/4, a/4), the second derivative is 4/a.

Q: What is the expression for the radius of curvature?

The radius of curvature expression is (1 + y₁²)^(3/2) / y₂, where y₁ is the first derivative and y₂ is the second derivative.

Q: What are the center coordinates of the circle of curvature?

The x-coordinate of the center is calculated as (3a/4), and the y-coordinate of the center is also (3a/4).

Q: What is the equation of the circle of curvature?

The equation of the circle of curvature is (x - 3a/4)² + (y - 3a/4)² = a²/2.

Summary & Key Takeaways

• The problem involves finding the circle of curvature for a given curve equation.

• The first and second derivatives of the curve equation are calculated.

• Using the first and second derivatives, the radius of curvature and the center coordinates of the circle are determined.

• The equation of the circle of curvature is derived.
