Decimal to BCD Encoder | Number System and Code | Digital Circuit Design in EXTC Engineering

TL;DR

This video discusses the design and realization of a Decimal to BCD Encoder, which is a combinational circuit that converts decimal numbers into binary-coded decimal (BCD) numbers.

Transcript

click the bell icon to get latest videos from ekeeda hello friends we are going to discuss the decimal to bcd encoder let's start with the discussion so your heading is decimal to bcd encoder so encoder is a combinational circuit which has output depend on present input only we have to design decimal to bcd encoder for that for input side you requi... Read More

Key Insights

• #️⃣ A Decimal to BCD Encoder is a combinational circuit that converts decimal numbers to BCD numbers.
• 😑 The design process involves creating a truth table, deriving logical expressions, and realizing the circuit using a block diagram.
• 🔢 Each output bit of the encoder has its own logical expression based on the input decimal numbers.
• 😑 The Decimal to BCD Encoder requires connections to be made according to the derived logical expressions for each output bit.

Questions & Answers

Q: What is a Decimal to BCD Encoder?

A Decimal to BCD Encoder is a circuit that converts decimal numbers into Binary-Coded Decimal (BCD) numbers, which use four bits to represent each decimal digit.

Q: How do you design a Decimal to BCD Encoder?

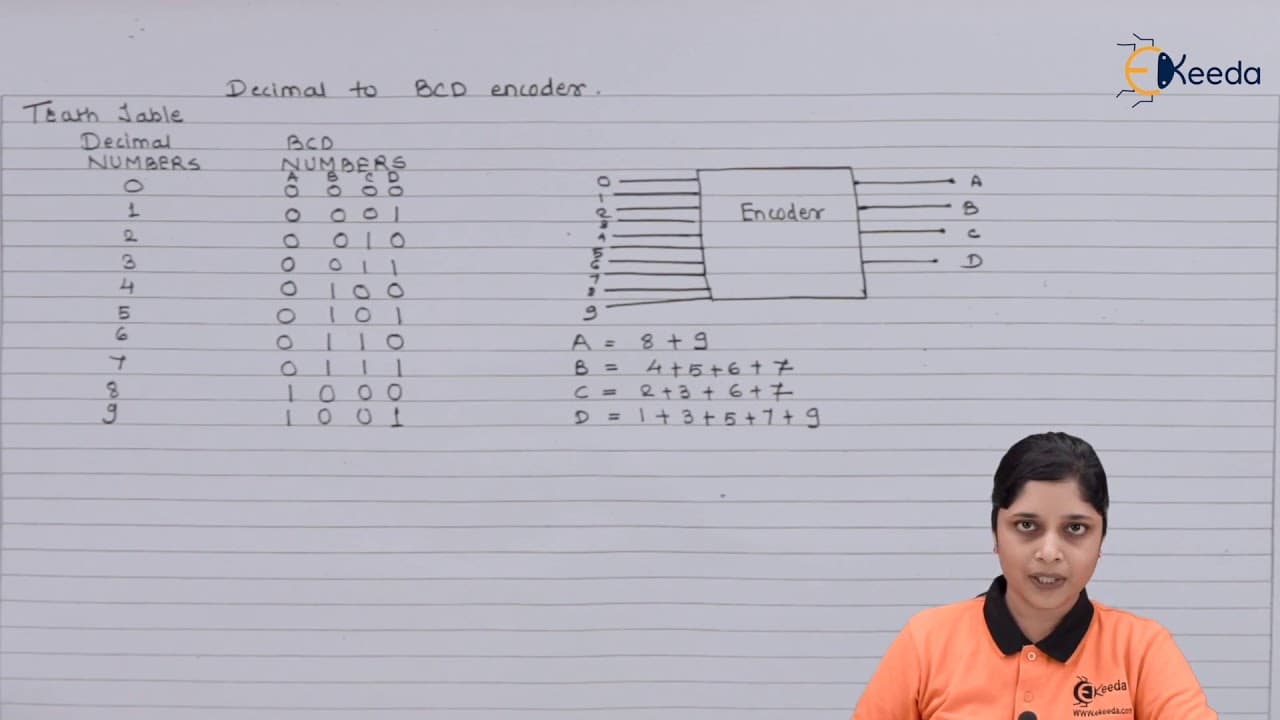

To design a Decimal to BCD Encoder, you start by creating a truth table with decimal numbers (0-9) and their corresponding BCD representations. Then, you derive logical expressions for each output bit (A, B, C, D) based on the truth table. Finally, you realize the encoder using a block diagram and make the necessary connections.

Q: What are the logical expressions for the output bits of a Decimal to BCD Encoder?

The logical expressions for the outputs of a Decimal to BCD Encoder depend on the specific decimal numbers. For example, A = 8 + 9, B = 4 + 5 + 6 + 7, C = 2 + 3 + 6 + 7, and D = 1 + 3 + 5 + 7 + 9.

Q: How is the Decimal to BCD Encoder realized?

The Decimal to BCD Encoder is realized by connecting the decimal number inputs (0-9) to the appropriate logic gates based on the derived logical expressions. Each output bit is represented by a separate connection, and the overall circuit is drawn as a block diagram.

Summary & Key Takeaways

• An encoder is a combinational circuit with an output that depends on the present input only.

• The Decimal to BCD Encoder converts decimal numbers (0-9) into BCD numbers represented by four bits (A, B, C, D).

• The video explains the process of designing the encoder using truth tables, block diagrams, and realization steps.
