Linear Measurement By Micrometer - Introduction To Metrology - Metrology and Quality Engineering

TL;DR

Micrometers are precise measuring instruments used for accurate measurement and come in various types for different applications.

Transcript

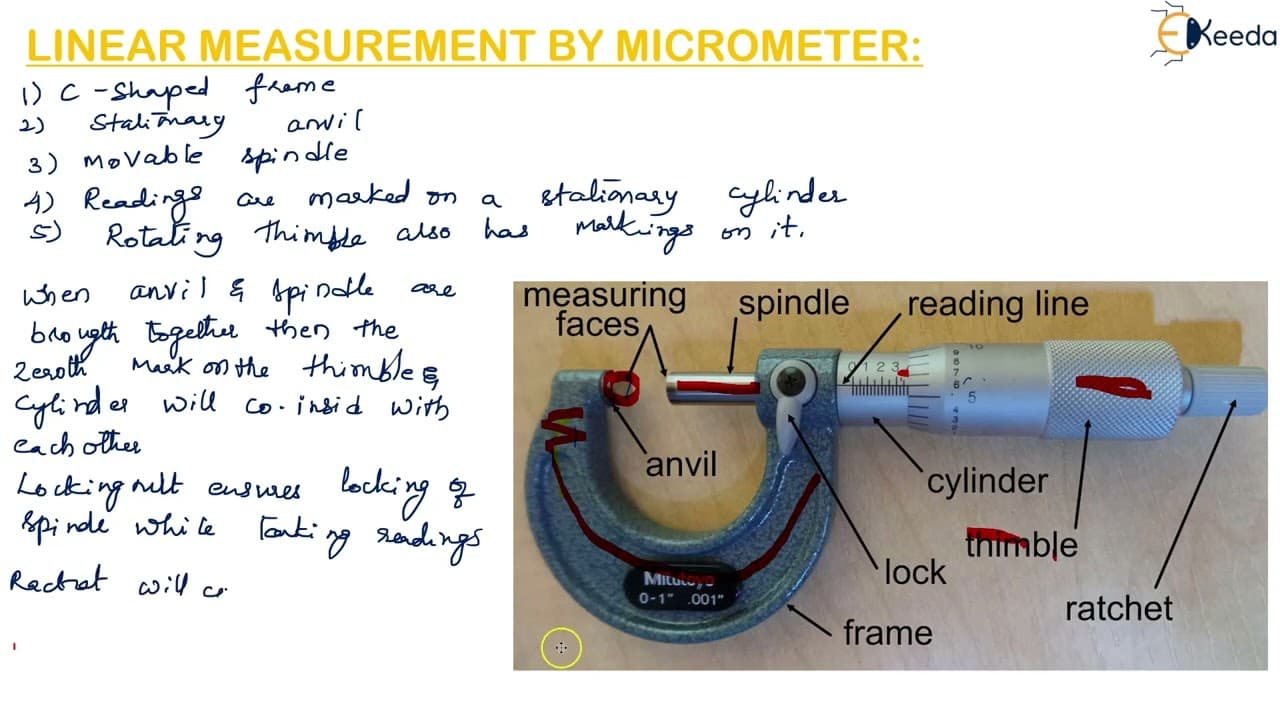

hello students today let us discuss the topic linear measurements made by the micro meter so the word micrometer is known by two different meanings the first one is a unit of measure which may be one thousandth of a millimeter the second meaning is a handheld measuring instrument using a screw-based mechanism so the word micrometer was originated i... Read More

Key Insights

• 🇬🇷 Micrometers originated in Greece and are known for their accuracy and precision.
• 🫥 The line of measurement in micrometers is in line with the instrument's axis, leading to better accuracy compared to Vernier calipers.
• 🥏 Micrometers have different types, such as disc, screw thread, dial, blade, and universal micrometers, each suitable for specific measurement applications.
• ✋ Using a locking nut and ratchet stop feature helps ensure accurate readings and prevents damage from excessive force.
• ❓ Regular cleaning, inspection, and proper maintenance are essential for reliable and precise measurements with micrometers.
• 💬 Micrometers have a range of measurements, typically from 0 to 25mm, 25 to 50mm, or 0 to 50mm.
• 🍉 Micrometers offer better readability, long-term accuracy retention, portability, and affordability compared to Vernier calipers.

Questions & Answers

Q: What are the two meanings of the word "micrometer"?

The word "micrometer" can refer to a unit of measure or a handheld measuring instrument.

Q: Why are micrometers more accurate than Vernier calipers?

Micrometers provide better accuracy because the line of measurement is in line with the axis of the instrument, which follows the principle of maximum accuracy.

Q: What are the different types of micrometers?

The different types of micrometers are disc micrometers, screw thread micrometers, dial micrometers, blade micrometers, and universal micrometers.

Q: How do micrometers prevent excessive force from being applied?

Micrometers have a ratchet stop feature that ensures a feel while taking readings and prevents excessive application of force, thereby avoiding damage to the instrument and the workpiece.

Summary & Key Takeaways

• Micrometers have two meanings: as a unit of measure and as a handheld measuring instrument.

• Micrometers provide better accuracy than Vernier calipers because the line of measurement is in line with the axis of the instrument.

• Micrometers have different types, including disc micrometers, screw thread micrometers, dial micrometers, blade micrometers, and universal micrometers.
