Interrelationship Among Different Systems of Tool Nomenclature for Tool Angles

TL;DR

This video discusses the interrelation between different systems of nomenclature for tool angles in machining sciences and tool design.

Transcript

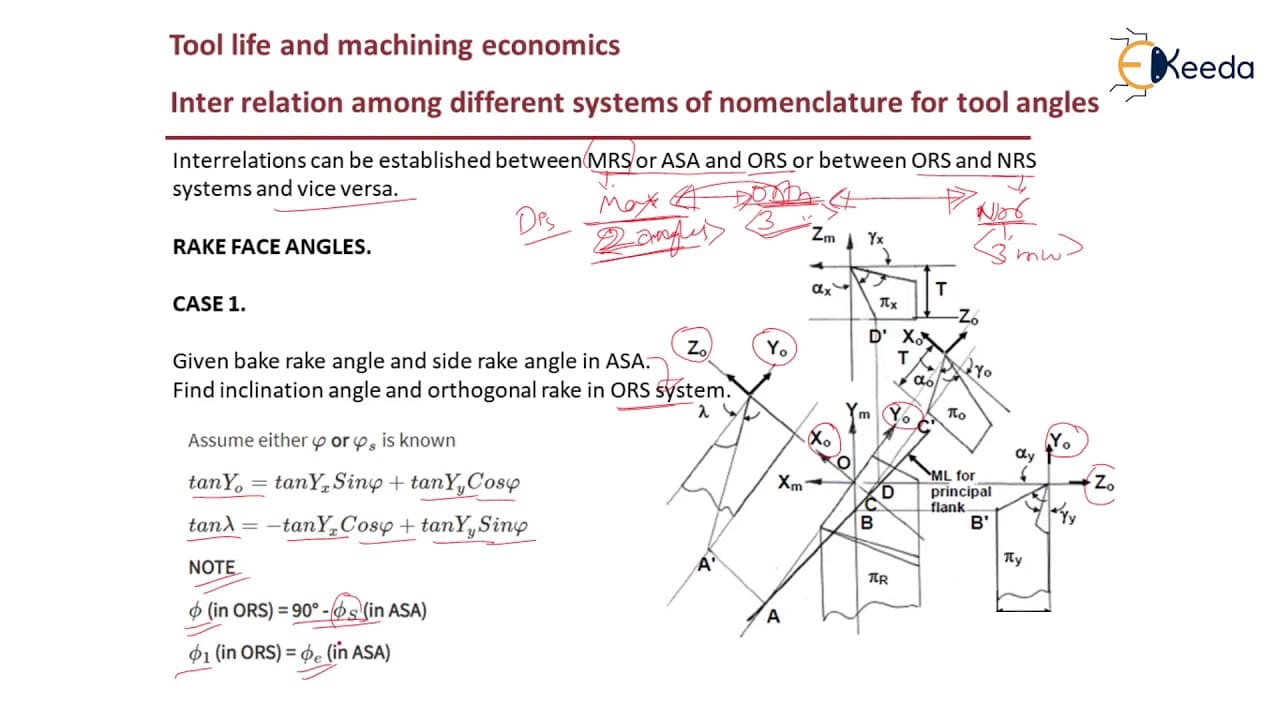

hello students welcome back to machining sciences and tool design so we are in module 5 so that is design of single point cutting tools in this video we'll be discussing about interrelation among different systems of nomenclature for tool angles in the earlier videos we have discussed different systems that is we are discussed about mrs and we are ... Read More

Key Insights

• 🔨 Different systems of nomenclature for tool angles, such as MRS, ORS, and NRS, have specific advantages and disadvantages.
• 🔺 The relationships between these systems allow for the conversion of angles measured in one system to the angles required in another system.
• ❓ Formulas and equations are provided to calculate and establish the interrelation among the different systems.
• 🔨 Accurate measurements of tool angles are crucial in machining processes to ensure optimal performance and efficiency.
• 🔨 Understanding the interrelation between different systems of nomenclature helps engineers and designers in tool selection and optimization.
• 🔺 The ORS system requires three mutually perpendicular angles, while the MRS system only requires two angles to measure the remaining angles.
• 🔺 The video emphasizes the importance of correctly converting angles between different systems to obtain accurate tool angle measurements.

Questions & Answers

Q: What are the different systems of nomenclature for tool angles discussed in the video?

The video discusses Maximum Rake Angle (MRS), Orthogonal Rake Angle (ORS), and Normal Rake Angle (NRS) as the three different systems of nomenclature for tool angles.

Q: What is the disadvantage of the Maximum Rake Angle (MRS) system?

The MRS system cannot directly measure certain angles, but they can be obtained by converting the angles measured in the ORS and NRS systems.

Q: How can the interrelation between the different systems of nomenclature be established?

The interrelation between the systems can be established by using formulas and equations that relate the angles measured in one system to the angles required in another system.

Q: What are some key angles and measurements discussed in the video?

The video discusses back rake angle, side rake angle, inclination angle, orthogonal rake angle, side clearance angle, end clearance angle, normal clearance angle, and normal rake angle.

Summary & Key Takeaways

• The video explores the different systems of nomenclature for tool angles, including Maximum Rake Angle (MRS), Orthogonal Rake Angle (ORS), and Normal Rake Angle (NRS).

• It highlights the relationship between these systems, explaining how angles obtained in one system can be converted into the angles required in another system.

• The video provides formulas and equations to establish the interrelation among the systems, making it easier to measure and determine tool angles accurately.
