Bode Plot Problem 7 - Frequency Response Analysis - Control Systems

TL;DR

This video explains how to determine the transfer function of a system using the Bode plot.

Transcript

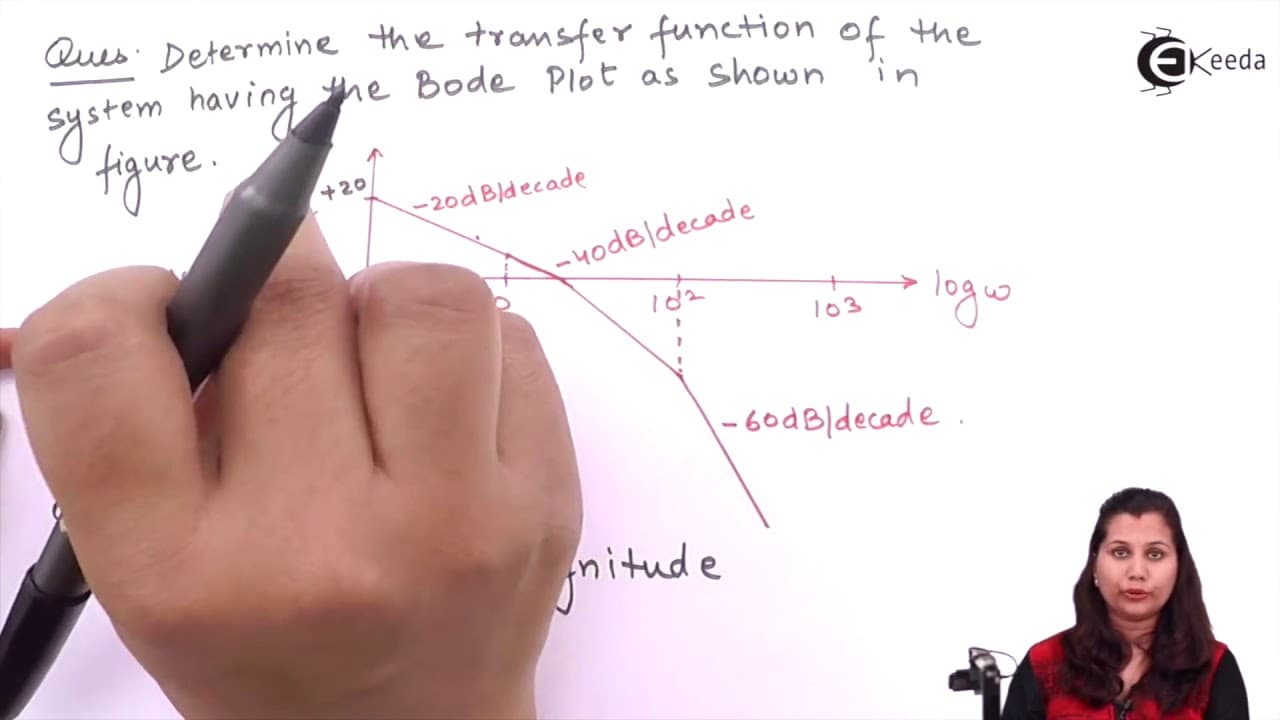

hello friends in this video we are going to solve a problem on how we can determine the transfer function of a system using the board plot so let's take a problem so our problem is to determine the transfer function of the system having the board plot and the boot plot is shown as in the figure on the y-axis we have the magnitude in the decibels db... Read More

Key Insights

• 🆘 The Bode plot helps determine the transfer function of a system by analyzing the magnitudes and slopes.
• 😥 The magnitude at a specific point on the Bode plot can be calculated using the slope and the difference in logarithmic frequencies.
• 😥 The gain or constant term of the system can be determined based on the magnitude at the starting point of the Bode plot.
• 🧑‍🏭 Changes in slope at specific frequencies indicate the presence of integral or first-order factors in the transfer function.
• 💱 Corner frequencies represent the frequencies at which the slopes change in the Bode plot.
• 🧑‍🏭 Time constants can be calculated based on the corner frequencies to determine the transfer function for first-order factors.
• 🧑‍🏭 The open-loop transfer function is a combination of the constant term, integral factors, and first-order factors.

Questions & Answers

Q: What is the first step in determining the transfer function of a system using the Bode plot?

The first step is to calculate the magnitude at a specific point on the Bode plot using the slope and the difference in logarithmic frequencies.

Q: How is the constant term or gain of the system calculated?

The constant term or gain of the system is calculated based on the magnitude at the starting point of the Bode plot.

Q: What does a change in slope at a specific frequency indicate?

A change in slope at a specific frequency indicates the presence of an integral or first-order factor in the transfer function.

Q: How can the transfer function for a first-order factor be determined?

The transfer function for a first-order factor can be determined by writing it as 1 plus the frequency variable divided by the corner frequency.

Summary & Key Takeaways

• The video teaches how to calculate the magnitude at a specific point on the Bode plot by using the slope and the difference in logarithmic frequencies.

• The constant term or gain of the system can be calculated based on the magnitude at the starting point of the Bode plot.

• The video demonstrates how to identify integral factors, first-order factors, and determine their corresponding transfer function based on the change in slope and corner frequencies.
