Create Geometry of Different Truss

TL;DR

Learn how to create complex truss geometries in Stag Pro software for industrial building design.

Transcript

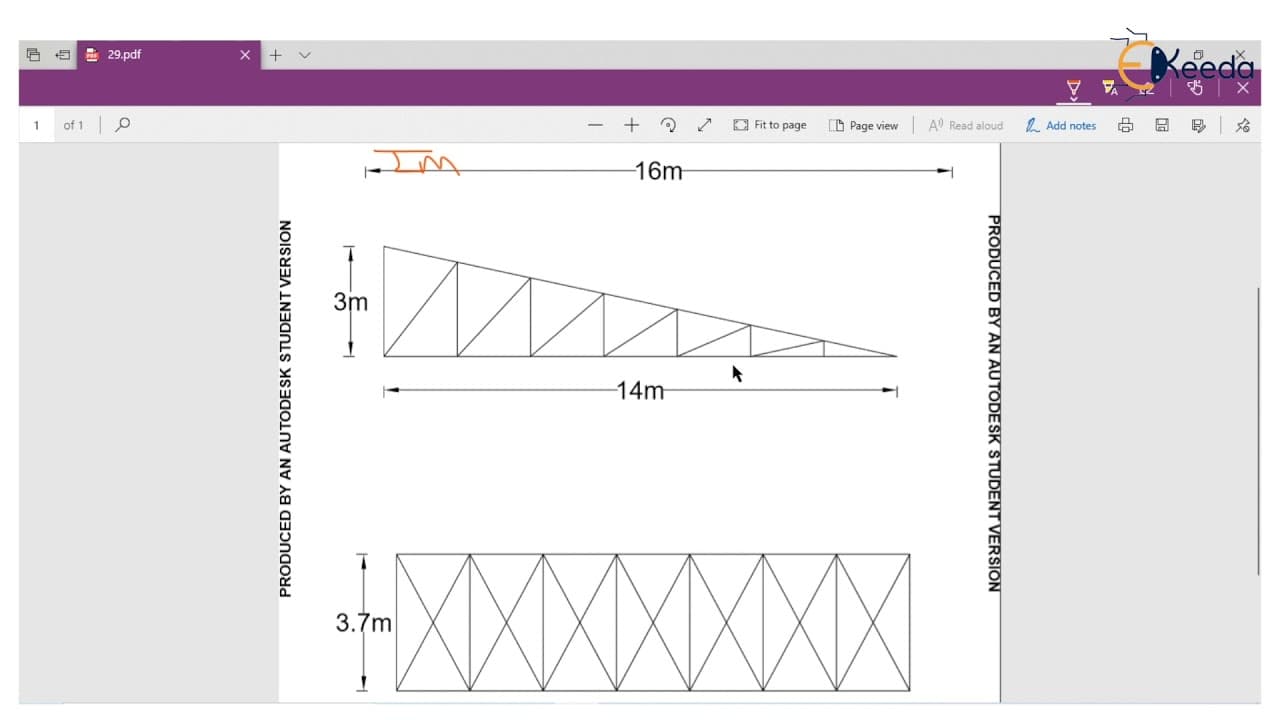

hey guys welcome back in this lecture we will learn how to create a geometry of different trusses which are somehow complicated to design in stag pro software look at this there is a three dressed and you have to create geometry instead Pro software first one three meter height and 16 meter length of brutal dress span and believer I divided into ei... Read More

Key Insights

• 🏛️ Stag Pro software can be used to create complex truss geometries for industrial building design.
• 🗂️ Trusses can be divided into multiple segments to achieve desired structural properties.
• 😁 Adding nodes and connecting beams in Stag Pro software allows for precise truss geometry creation.

Questions & Answers

Q: What software is used in the video tutorial?

The video tutorial demonstrates creating truss geometry using Stag Pro software.

Q: How many segments are there in the first truss?

The first truss is divided into eight segments, each with a length of 2 meters.

Q: What are the dimensions of the second truss?

The second truss has a height of 3 meters and a length of 14 meters.

Q: How many nodes are there in the third truss?

The third truss has six nodes.

Summary & Key Takeaways

• The video tutorial teaches how to create the geometry of three different trusses using Stag Pro software.

• The first truss has a height of 3 meters, a length of 16 meters, and is divided into eight segments.

• The second truss has a height of 3 meters, a length of 14 meters, and is divided into six segments.
