Difference Between CPLD and FPGA | Programmable Logic Devices | Digital Electronics in EXTC

TL;DR

CPLDs and FPGAs have differences in terms of full form, logic resources, delays, power consumption, security, applications, flexibility, and price.

Transcript

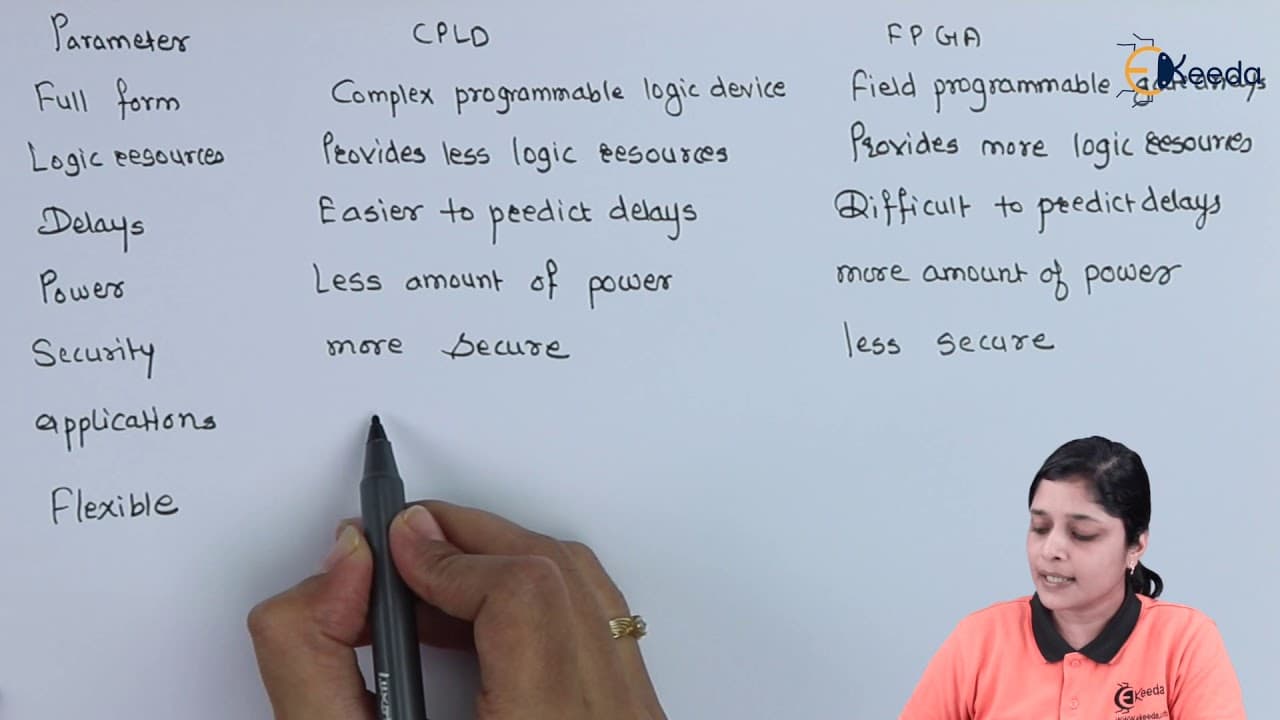

click the bell icon to get latest videos from Ikeda hello friends now we will see the comparison of cpld with FPGA let's start the discussion so with the use of this parameter we are going to compare the cpld with FPGA first of all you should know the full form of cpld and full form of fpg Cpl distance for complex programmable logic devices and FPG... Read More

Key Insights

• ✊ CPLDs and FPGAs have differences in terms of their full form, logic resources, delays, power consumption, security, applications, flexibility, price, and structural composition.
• 🎨 CPLDs provide a minimum number of logic resources, while FPGAs offer maximum logic resources for designing digital circuits.
• 🎨 CPLDs are easier to predict delays in circuit design, while FPGAs have more unpredictable delays.
• ✊ CPLDs consume less power, making them more energy-efficient than FPGAs.
• 💁 CPLDs are more secure for storing information, reducing the risk of data loss.
• 🈸 CPLDs are suitable for small and medium applications, while FPGAs are capable of handling complex applications.
• 👻 FPGAs are more flexible compared to CPLDs, allowing for greater versatility in circuit design.
• ❓ CPLDs are generally less expensive than FPGAs.

Questions & Answers

Q: What is the difference between CPLD and FPGA?

CPLD stands for complex programmable logic devices, while FPGA stands for field programmable gate arrays. CPLDs provide a minimum number of logic resources, while FPGAs provide maximum logic resources.

Q: Which type of circuit design is easier to predict delays in?

CPLDs are easier to predict delays in circuit design compared to FPGAs.

Q: How do CPLDs and FPGAs differ in terms of power consumption?

CPLDs consume less power, while FPGAs consume more power.

Q: What are the security differences between CPLDs and FPGAs?

CPLDs are more secure as the information stored in their sockets is less likely to be lost, while FPGAs have higher chances of losing information.

Q: Which type of applications are CPLDs and FPGAs suitable for?

CPLDs are useful for small and medium applications, while FPGAs can handle complex applications.

Q: How do CPLDs and FPGAs differ in terms of flexibility?

CPLDs are less flexible compared to FPGAs.

Q: Which type of design is generally less expensive, CPLD or FPGA?

CPLD circuit design requires less cost compared to FPGA circuit design.

Q: What are the structural differences between CPLDs and FPGAs?

CPLDs consist of Programmable Logic Devices (PLDs), while FPGAs consist of Configurable Logic Blocks (CLBs).

Summary & Key Takeaways

• CPLD stands for complex programmable logic devices, while FPGA stands for field programmable gate arrays.

• CPLDs provide a minimum number of logic resources, while FPGAs provide maximum logic resources for designing digital circuits.

• CPLDs are easier to predict delays in circuit design, while FPGAs have more unpredictable delays.

• CPLDs consume less power, while FPGAs consume more power.

• CPLDs are more secure for storing information, while FPGAs have higher chances of losing information.

• CPLDs are suitable for small and medium applications, while FPGAs can handle complex applications.

• CPLDs are less flexible compared to FPGAs.

• CPLDs are generally less expensive than FPGAs.

• CPLDs consist of Programmable Logic Devices (PLDs), while FPGAs consist of Configurable Logic Blocks (CLBs).
