Virtual Short And Virtual Ground Concept

TL;DR

Op-Amps have the concept of virtual short and virtual ground, where both input terminals are at the same potential due to high input impedance and open loop gain.

Transcript

click the bell icon to get latest videos from ekeeda hello friends in today's video we are going to see what do you mean by virtual short and virtual ground concept in case of oppa the virtual shorter virtual ground concept having its own important in case of op-amp as we are going to use the same concept in many applications so let's see what is v... Read More

Key Insights

• 👻 The virtual short concept in Op-Amps ensures that both input terminals are at the same potential, allowing for accurate voltage calculations and measurements.

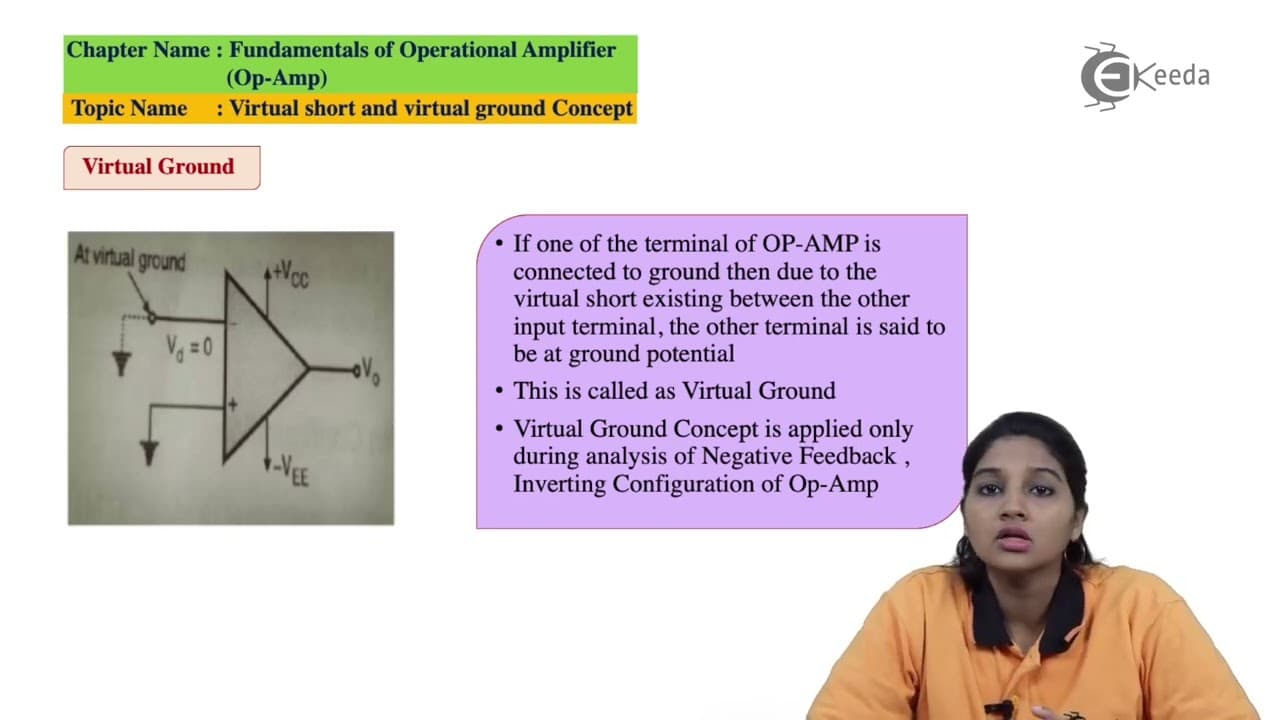

• 🛝 The virtual ground concept in Op-Amps means that when one terminal is connected to ground, the other terminal becomes connected to ground as well.
• 😚 The virtual short and virtual ground concepts have significant importance in various Op-Amp applications, including inverting and non-inverting amplifiers, adder subtractors, integrators, differentiators, and closed-loop configurations.
• 🤗 Op-Amps with high input impedance and open loop gain exhibit virtual short and virtual ground behavior.
• 😀 The virtual short and virtual ground concepts are based on the input resistance (ri) of an Op-Amp, which is ideally infinite and practically 2 mega ohms.
• 👻 The virtual short concept allows for accurate voltage measurements, as there is no actual physical connection between the input terminals.
• 🛝 The virtual ground concept ensures that both input terminals are at the same potential, simplifying circuit analysis and calculations.

Questions & Answers

Q: What is the significance of the virtual short concept in Op-Amps?

The virtual short concept in Op-Amps ensures that both input terminals are at the same potential, allowing for accurate voltage measurements and calculations.

Q: How does the virtual ground concept work in Op-Amps?

The virtual ground concept in Op-Amps states that when one terminal is connected to ground, the other terminal also becomes connected to ground, resulting in both terminals being at the same potential.

Q: What are the applications of the virtual short and virtual ground concept in Op-Amps?

The virtual short and virtual ground concepts are crucial in various Op-Amp applications, including inverting and non-inverting amplifiers, adder subtractors, integrators, differentiators, and closed-loop configurations.

Q: How is the virtual short concept achieved in an ideal Op-Amp?

In an ideal Op-Amp, the input resistance is considered infinite, resulting in zero current flowing into the input terminals and zero voltage dropped across them, effectively creating a virtual short.

Summary & Key Takeaways

• Op-Amps have an input resistance (ri) that is ideally infinite and practically 2 mega ohms.

• Due to this high input resistance, the current flowing into the input terminals becomes zero.

• As a result, the voltage dropped across the input terminals of the Op-Amp becomes zero, leading to the concept of virtual short.
