Problem 1 Charge Coupled Devices - Microwave Transistors and Tunnel Diodes - Microwave Engineering

TL;DR

In this video, a problem on charge-coupled devices is solved, determining the power dissipation per bit based on given parameters.

Transcript

click the bell icon to get latest videos from equator hello parents I welcome you all to this video in this video we are going to solve a problem based on to the charge-coupled devices in the previous video as we have covered the understanding of this particular topic under the title of microwave transistors internal diode under this chapter title ... Read More

Key Insights

• 🈂️ Charge-coupled devices are semiconductor devices used to store and shift electrical charges.
• 🈂️ The power dissipation per bit in a charge-coupled device is determined by the applied voltage, number of phases, clock frequency, and maximum stored charges.
• 🚫 The formula to calculate power dissipation per bit is: P = n * 2 * F * V * Qmax.
• ✊ In the given problem statement, the power dissipation per bit is calculated to be 12 micro rads.
• ✊ Understanding power dissipation in charge-coupled devices is crucial for efficient device operation and system design.
• 🧑‍🤝‍🧑 Charge-coupled devices are commonly used in imaging sensors for digital cameras and other optical systems.
• 🫦 Power dissipation per bit is a measure of energy consumption for each bit operation.

Questions & Answers

Q: What is a charge-coupled device?

A charge-coupled device (CCD) is a semiconductor device that can store and shift electrical charges, commonly used in imaging sensors for digital cameras and other optical systems.

Q: How is the power dissipation per bit calculated?

The power dissipation per bit (P) is calculated by multiplying the number of phases (n) by 2 times the clock frequency (F), multiplied by the applied voltage (V), and the maximum stored charges (Qmax).

Q: What are the given parameters in the problem statement?

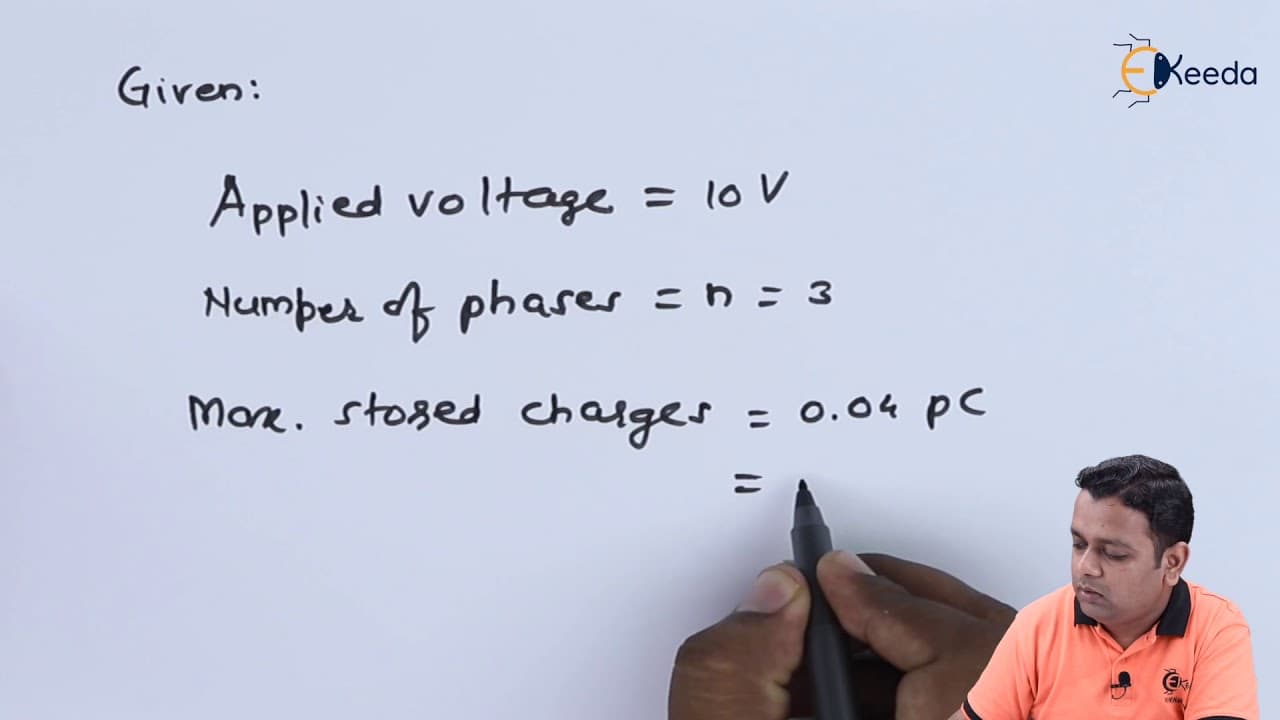

The given parameters in the problem statement are: applied voltage (V = 10 volts), number of phases (n = 3), maximum stored charges (Qmax = 0.04 picocoulombs), and clock frequency (F = 10 megahertz).

Q: What is the significance of power dissipation per bit in charge-coupled devices?

Power dissipation per bit is a measure of the energy consumed by each bit operation in a charge-coupled device. It is important to understand and optimize power dissipation for efficient device operation and overall system design.

Summary & Key Takeaways

• The video covers the topic of charge-coupled devices, specifically focusing on solving a problem related to power dissipation per bit.

• The problem statement provides four parameters: applied voltage, number of phases, maximum stored charges, and clock frequency.

• By using the given parameters, the power dissipation per bit is calculated to be 12 micro rads.
