Power IGBTs - Other Power Semiconductor Devices - Power Electronics

TL;DR

Power IGBT is an insulated gate bipolar junction transistor that can handle high voltages, high currents, and operate in high-frequency applications.

Transcript

click the bell icon to get latest videos from akira hello friends today we are going to discuss about power IG bTW so friends we all know what an IG beauties IGBT stands for insulated gate bipolar Junction transistor so what is a power IGBT and how can we differentiate a power IGBT from IGBT first of all a power IGBT is an insulated gate bipolar Ju... Read More

Key Insights

• ✊ Power IGBT can handle high voltages and currents, making it suitable for power applications.
• 💨 Its ability to operate in high-frequency applications results in fast response times.
• ✊ Heavily doping the semiconductor material increases the power IGBT's current-carrying capacity.

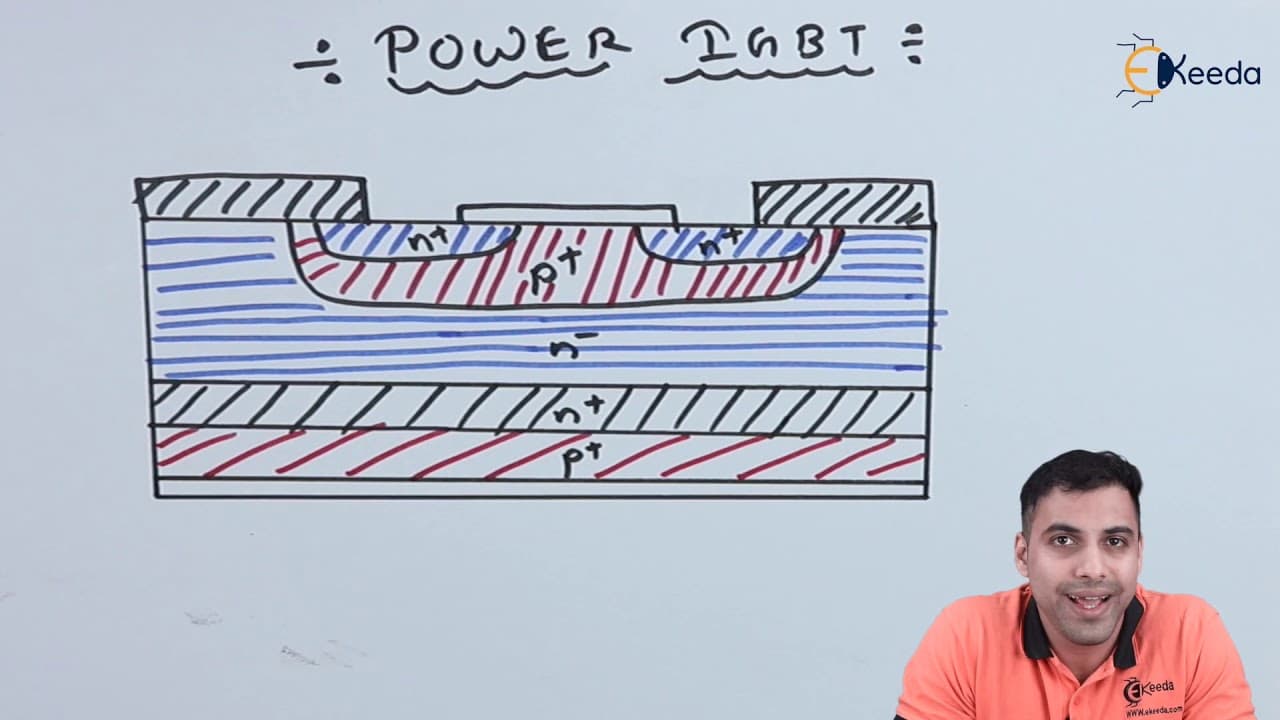

• ✊ The internal structure of a power IGBT involves different layers, including an injecting layer, buffer layer, collector drift, and body region.
• 👻 The gate terminal controls the conductivity of the power IGBT, allowing it to conduct or block current.
• ⚡ Power IGBT offers advantages over conventional IGBT, including faster response times and higher current and voltage handling capabilities.
• 🤘 Metal coatings are applied to the gate, collector, and emitter terminals of a power IGBT to enhance conductivity.

Questions & Answers

Q: What is the main difference between a power IGBT and a regular IGBT?

The main difference is that a power IGBT can handle high voltages and currents, while a regular IGBT may not have the same capabilities.

Q: Why is the ability to operate in high-frequency applications important for a power IGBT?

High-frequency operation allows the power IGBT to switch rapidly, resulting in faster response times and efficiency in certain applications like motor control or power converters.

Q: How does heavily doping the semiconductor material impact the power IGBT?

Heavily doping the semiconductor material increases its current-carrying capacity, enabling the power IGBT to handle high currents and voltages without malfunctioning.

Q: What are the advantages of using a power IGBT over a conventional IGBT?

The advantages include extremely high response times, fast switching speeds, the capability to handle heavy currents and voltages, and suitability for high-frequency applications.

Summary & Key Takeaways

• Power IGBT can withstand extremely high voltages and currents, making it suitable for high-power applications.

• A key advantage of power IGBT is its ability to operate in high-frequency applications, resulting in fast response times.

• The construction of a power IGBT involves heavily doping the semiconductor material to increase its current-carrying capacity.
