555 Timer Signal Generators - Square Wave to Triangle Wave to Sine Wave Converter Circuit

TL;DR

Learn how to convert an incoming square wave into a triangular or sine wave using the 555 timer circuit and the appropriate values for resistors and capacitors.

Transcript

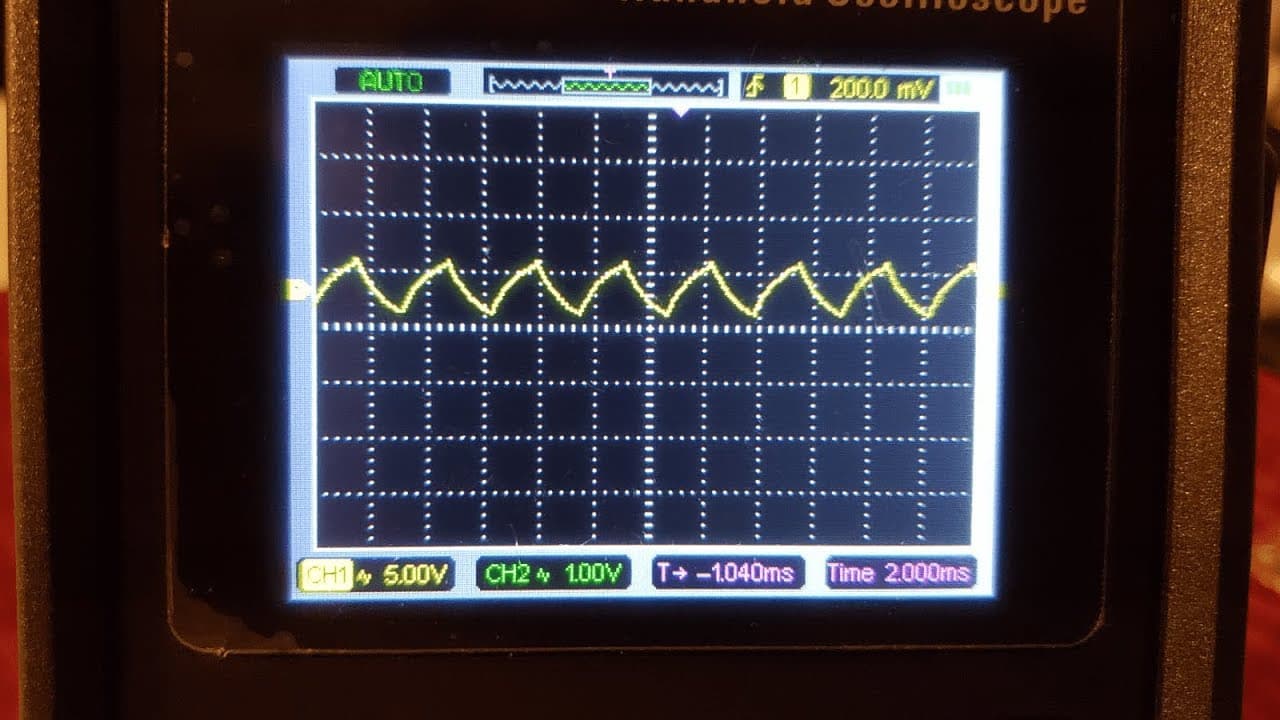

in this video we're going to talk about how to convert an incoming square wave into a triangular wave the incoming square wave can be produced by the 555 timer circuit and i have another video that shows you how you can generate that waveform now if you connect that to this rc network you can convert it to a triangular wave if you choose the right ... Read More

Key Insights

• 👋 Square waves can be converted to triangular waves by connecting the square wave to an RC network with the right values of resistors and capacitors.
• 🥺 Increasing capacitance leads to a more triangular waveform with a decreased amplitude.
• 👋 Three RC networks can be used to convert square waves to sine waves, with greatly reduced amplitudes.

Questions & Answers

Q: How can an incoming square wave be converted to a triangular wave?

The square wave can be connected to an RC network with the right values of resistors and capacitors. By adjusting the capacitance value, the waveform can be transformed into a triangular shape.

Q: What happens to the waveform as the capacitance is increased?

As the capacitance is increased, the waveform becomes more triangular. The amplitude of the waveform decreases as the RC value increases.

Q: How can a sine wave be generated from a square wave?

To generate a sine wave, three RC networks are used to filter the square wave. The same values of resistors and capacitors are used in each network. The amplitude of the sine wave is greatly reduced.

Q: How can the frequency and duty cycle of the square wave be controlled?

The frequency and duty cycle of the square wave can be controlled by choosing the appropriate values of resistors and capacitors in the 555 timer circuit. Adjusting the values of R1 and R2 allows for control over the duty cycle, while adjusting C1 controls the frequency.

Summary & Key Takeaways

• The 555 timer circuit can produce an incoming square wave, which can be converted to a triangular or sine wave using an RC network with the right values of resistors and capacitors.

• By adjusting the capacitance value, the shape of the waveform changes, with increasing capacitance leading to a more triangular waveform.

• To convert square waves to sine waves, three RC networks are used, with the same values of resistors and capacitors. The amplitude is greatly reduced in the process.

• The frequency and duty cycle of the square wave can be controlled by choosing the appropriate values of resistors and capacitors.
