Numerical 1 on MOSFET

TL;DR

The video discusses a numerical calculation to determine the flat-band voltage in an N-channel MOSFET based on given parameters.

Transcript

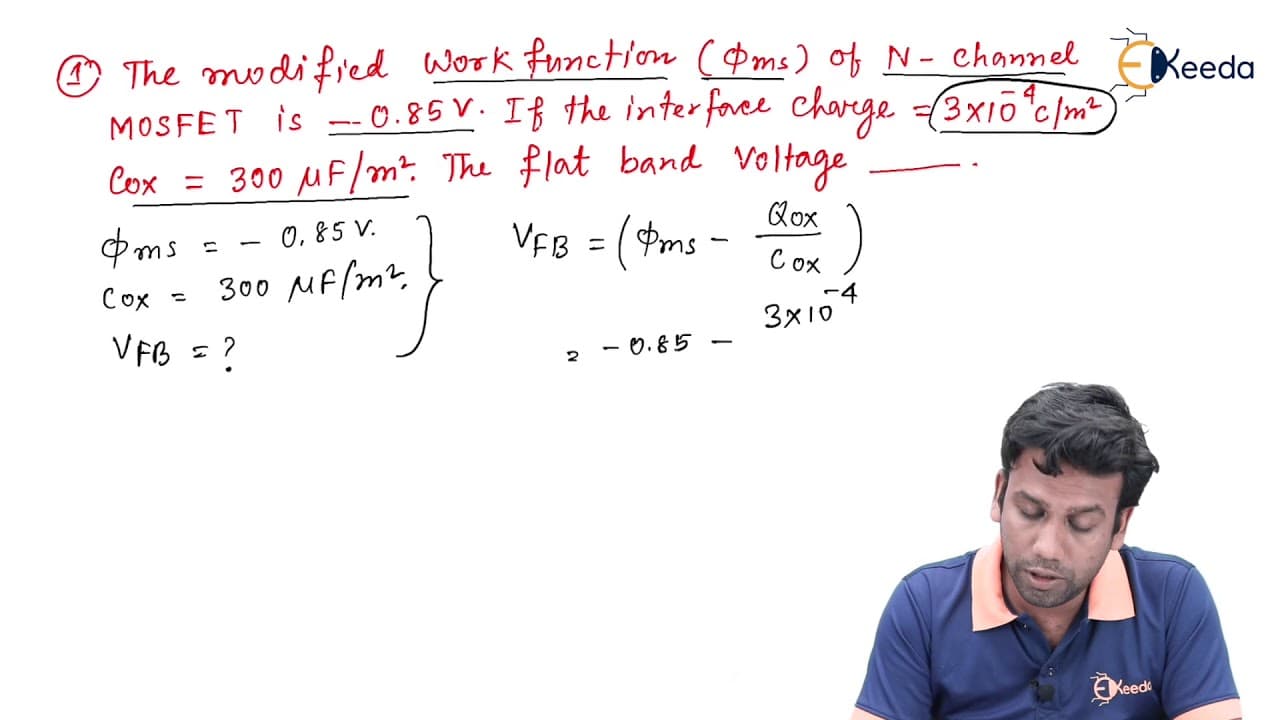

hello friends in this video we are going to discuss about a numerical on the MOSFET according to this numerical given the modified work function phi ms of n channel mosfet is given by minus 0.85 volt that means phi ms is equals to minus 0.85 volt and if the interface charge that is equals to 3 into 10 to the power minus 4 then co x is of the order ... Read More

Key Insights

• 🤩 Phi_ms, Q_X, and Co_X are key parameters in calculating the flat-band voltage in a MOSFET.
• 🤕 The flat-band voltage is necessary to eliminate band bendings within the MOSFET's metal-oxide-semiconductor structure.
• 🤕 The given numerical problem demonstrates the calculation of the flat-band voltage using the provided parameters.
• 🤕 The flat-band voltage plays a critical role in optimizing MOSFET performance and maintaining a flat band diagram.
• ⚡ Incorrect or inadequate flat-band voltage can lead to threshold voltage shifts and device instability.
• 🤕 MOSFET design and operation heavily rely on understanding and controlling the flat-band voltage.
• ⚡ The calculated flat-band voltage in the numerical problem is -1.85 volts.

Questions & Answers

Q: What is the significance of the flat-band voltage in a MOSFET?

The flat-band voltage in a MOSFET is essential in achieving a flat band diagram and eliminating any band bendings, ensuring optimal device performance.

Q: How is the flat-band voltage calculated in the numerical problem?

The flat-band voltage (V_AB) is obtained by subtracting the product of the interface charge (Q_X) and the oxide capacitance (Co_X) from the modified work function (Phi_ms).

Q: What do the given parameters represent in the numerical problem?

Phi_ms refers to the modified work function of the MOSFET, Q_X represents the interface charge, and Co_X denotes the oxide capacitance.

Q: Why is determining the flat-band voltage important in MOSFET design and operation?

Understanding the flat-band voltage is crucial for properly biasing the MOSFET and ensuring optimal device performance, avoiding undesirable effects such as threshold voltage shifts.

Summary & Key Takeaways

• The video presents a numerical problem involving a MOSFET's modified work function (Phi_ms), interface charge (Q_X), and oxide capacitance (Co_X).

• Using the equation Phi_ms - Q_X * Co_X, the flat-band voltage (V_AB) is calculated to be -1.85 volts.

• The flat-band voltage is crucial in eliminating band bendings within the metal-oxide-semiconductor field-effect transistor (MOSFET).
