Maximum, Minimum and Mixed Phase System | Signals and Systems | Problem No - 2

TL;DR

Determine if a given system is a minimum, maximum, or mixed phase system based on its function.

Transcript

click the bell icon to get latest videos from equator hello friends and today we are going to study a new problem that is problem number 2 which is based on minimum phase maximum phase and mixed phase system determine whether the following system is minimum maximum or mixed phase system the question data will remain same only the function will chan... Read More

Key Insights

• 💈 Minimum phase systems have all poles and zeros within the unit circle, ensuring stability.
• 💈 Maximum phase systems have all poles and/or zeros outside the unit circle, making them less stable.
• 💈 Mixed phase systems have a combination of poles and zeros inside and outside the unit circle.
• 🤪 Conversion of an equation into positive powers of Z simplifies the factor calculation process.
• 0️⃣ The location of zeros can be determined by equating each factor with zero and observing the resulting values.

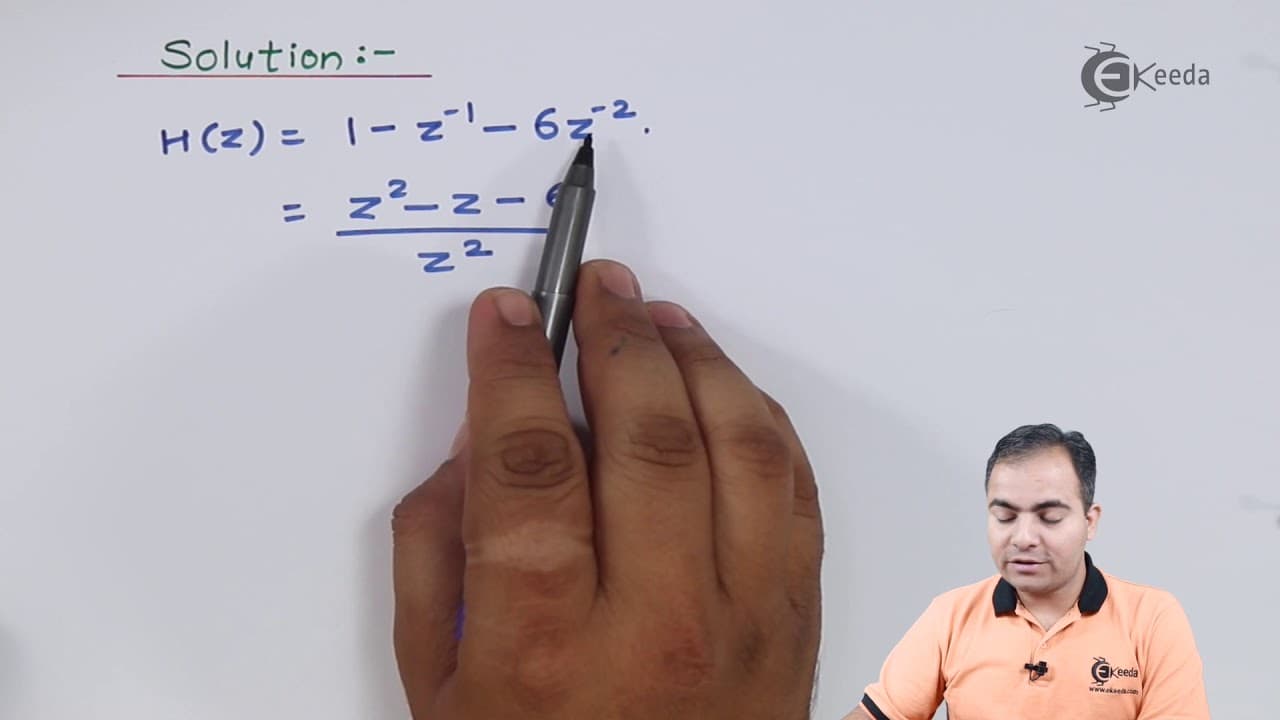

• ❓ The given function, 1 - Z^(-1) - 6Z^(-2), is identified as a maximum phase system.
• 🧑‍🏭 The factors of the system are calculated as -3 and 2, indicating two zeros.

Questions & Answers

Q: What is the difference between a minimum, maximum, and mixed phase system?

In a minimum phase system, the poles and zeros are within the unit circle, while in a maximum phase system, the poles and zeros are outside the unit circle. A mixed phase system has some poles and zeros inside the unit circle and some outside.

Q: How do you convert an equation into a positive power of Z?

To convert an equation into a positive power of Z, you can multiply the numerator and denominator by Z^(negative power). This ensures that the equation has positive powers of Z.

Q: How are the factors of a system calculated?

The factors of a system are calculated by considering the product of the outermost terms and the sum of the inner terms. For example, if the terms are 3 and 2, the factors would be -3 and 2, respectively.

Q: How do you determine the location of zeros?

To determine the location of zeros, you equate each factor with zero. The resulting value represents the location of the zero. For example, if a factor is 3, the zero is located at a distance of 3 units from the origin in the complex plane.

Summary & Key Takeaways

• The content discusses a problem related to minimum, maximum, and mixed phase systems in signal processing.

• It explains the calculation of factors and the determination of the location of zeros to identify the type of phase system.

• The given function is analyzed and determined to be a maximum phase system.
