Problem on Centroid of Channel Section - Centroid and Centre of Gravity - Engineering Mechanics

TL;DR

This video provides a step-by-step explanation of how to calculate the position of the centroid for a C-section using a series of rectangles.

Transcript

hello friends now we will take the problem of centroid based on c-section which is given in the problem so in this video we would be locating the centroid for a c-section let's read what is given in the question the question is locate the position of centroid for a channel section as shown in figure here the diagram is given as we can see here a c ... Read More

Key Insights

• 🗂️ The C-section in question is divided into three rectangles of different widths and heights.
• 🧘 The areas of these rectangles are calculated to determine their contribution to the overall centroid position.
• ❣️ The x and y coordinates for each rectangle are found based on their distance from the x and y axes.
• 🇧🇱 The x bar and y bar values are calculated by summing the products of the areas and coordinates, divided by the total area.
• 🤢 The calculated x bar and y bar values represent the position of the centroid for the C-section.
• ⚖️ Locating the centroid is important for analyzing the stability and balance of the C-section structure.
• 🎁 The method presented in the video can be applied to other shapes and sections by dividing them into appropriate rectangles.

Questions & Answers

Q: What is the purpose of finding the centroid of a C-section?

Finding the centroid helps determine the overall balance and stability of the C-section structure. It is a crucial parameter for design and analysis in engineering.

Q: How are the areas of the rectangles determined?

The areas are calculated by multiplying the width and height of each rectangle. The video provides the specific dimensions for each rectangle in the example.

Q: What does x1 and y1 represent in the calculation?

x1 represents the location of the y-axis for the first rectangle, while y1 represents the location of the x-axis for the first rectangle. These coordinates are used to calculate the centroid position.

Q: Why is the C-section divided into three rectangles?

Dividing the C-section into rectangles simplifies the calculation of the centroid position. The method used in the video is based on the principle of composite areas.

Summary & Key Takeaways

• The video presents a problem of locating the centroid for a C-section.

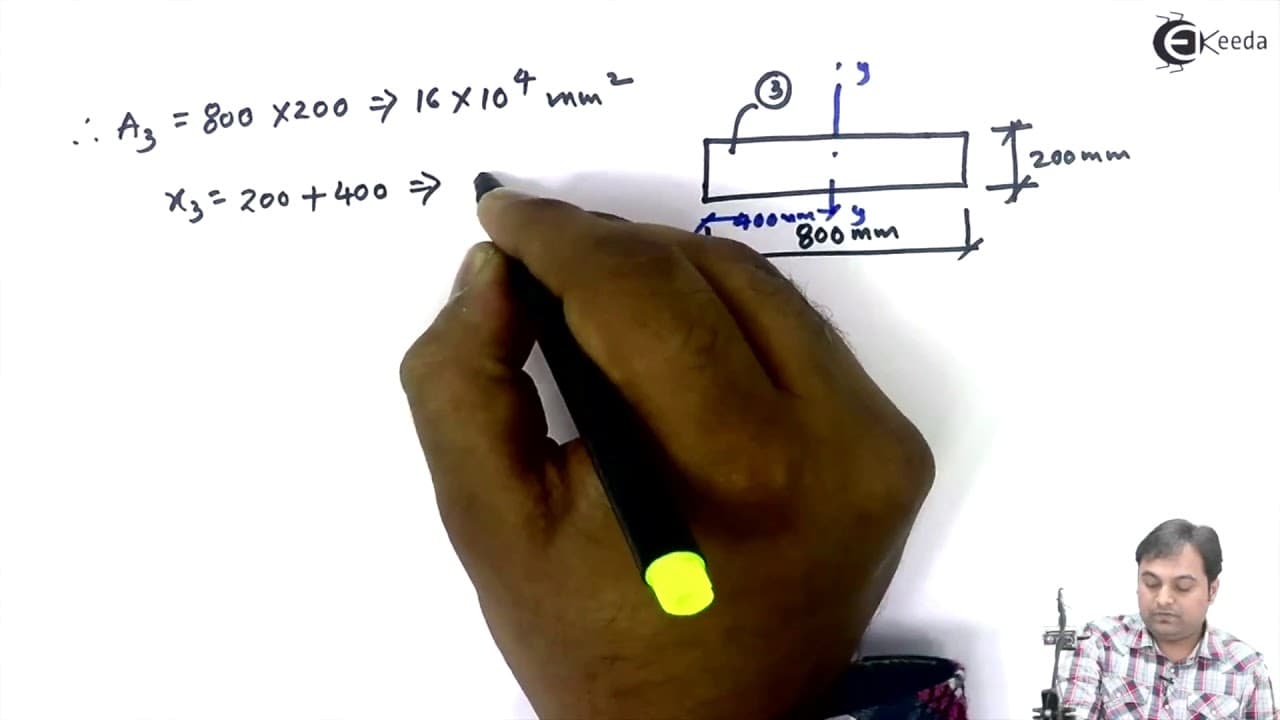

• It divides the C-section into three rectangles and calculates their areas.

• X and Y coordinates for each rectangle are determined to find the overall position of the centroid.
