Problem No.1 on Nodal Analysis - DC Circuits - Basic Electrical Engineering

TL;DR

This video explains how to use nodal analysis to find the voltages of nodes in a simple circuit problem.

Transcript

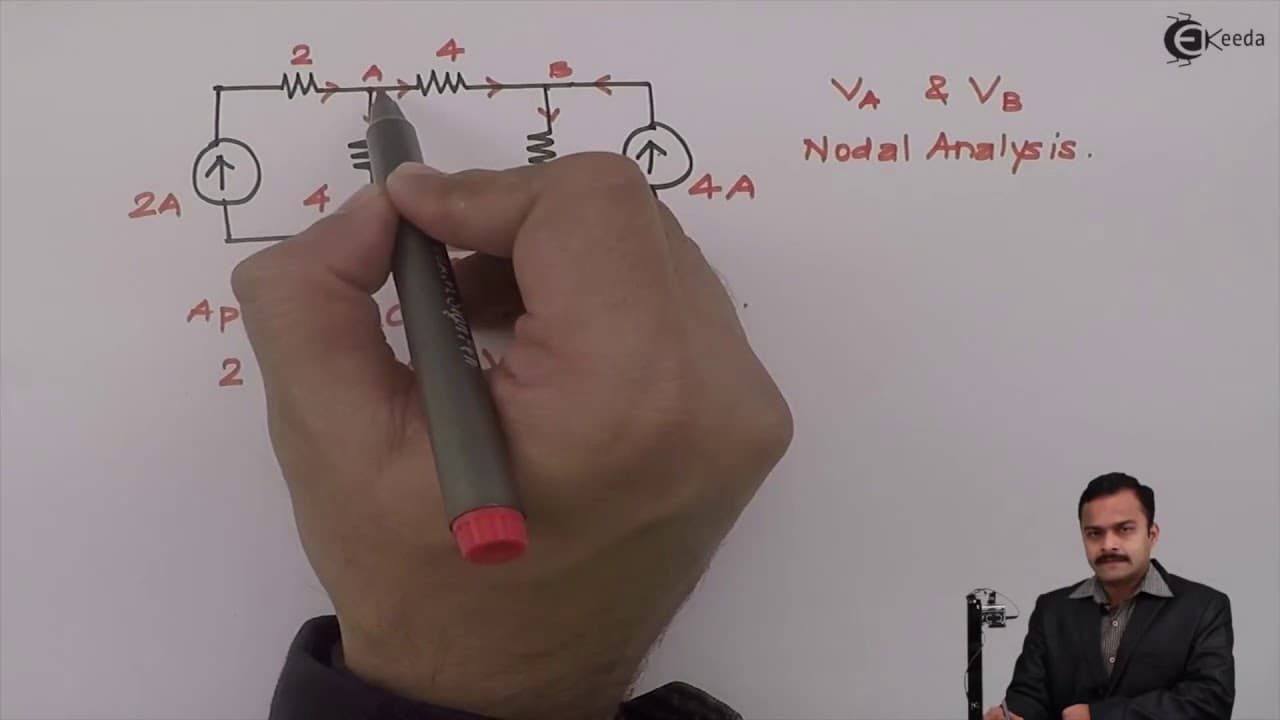

hi friends in this video we are going to see the application of nodal analysis technique to solve a problem so let's take a simple problem in a problem i am considering two current sources of 2 ampere and 4 ampere and resistances are 2 4 ohm this is also 4 ohm and let's take this as 2 the objective is to find out voltages of nodes a and b so we hav... Read More

Key Insights

• ℹ️ Nodal analysis is a powerful technique for solving circuit problems, especially those with multiple nodes and current sources.
• 🪪 Proper identification of nodes and choosing a reference node is crucial for accurate analysis.
• 👻 The application of KCL allows for the derivation of equations relating node voltages and branch currents.

Questions & Answers

Q: What is nodal analysis?

Nodal analysis is a technique used to solve circuit problems by applying Kirchhoff's Current Law to the nodes in the circuit. It allows us to determine the voltages at those nodes.

Q: How do you identify the nodes in a circuit?

Nodes are identified as points where more than two branches are connected. In this circuit, nodes A and B are identified based on the connection of the branches.

Q: Why is one node chosen as the reference?

Choosing one node as the reference simplifies the equations for nodal analysis. It allows us to set the voltage at the reference node as zero, making the calculations easier.

Q: How are the equations derived for nodal analysis?

In nodal analysis, KCL is applied to each non-reference node. By equating the outgoing and incoming currents at each node, equations relating the voltages of the nodes and the currents flowing through the branches are derived.

Summary & Key Takeaways

• The video explains the application of nodal analysis technique in solving a circuit problem with two current sources and resistances.

• The first step is to identify the nodes in the circuit, considering one node as the reference with zero voltage.

• Kirchhoff's Current Law (KCL) is applied to the remaining nodes to establish equations relating the voltages of the nodes and the currents flowing through the branches.

• By solving the resulting equations, the voltages of nodes A and B (Va and Vb) are determined to be 8 volts each.
