TL;DR

The multi-stage impulse generator, also known as the Marx circuit, is used to generate high voltage impulses through the charging and discharging of capacitors in parallel and series.

Transcript

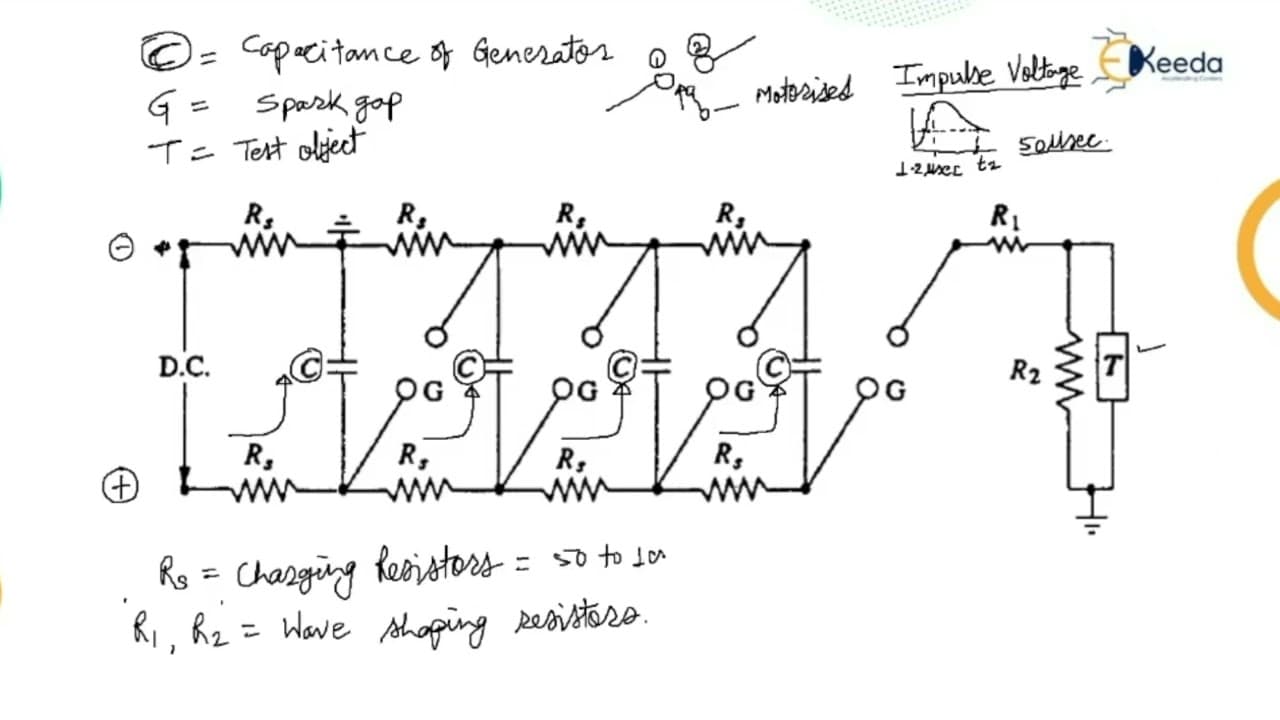

hello friends in this lecture i am going to talk on the multi-stage impulse generator that multi-stage impulse generator is called as marks circuit so we are going to discuss with the circuit diagram is available on the next slide here in the circuit there is a generator capacitance c is to be charged first and then that is to be discharged in the ... Read More

Key Insights

• ⚡ The multi-stage impulse generator allows for the generation of high voltage impulses by charging and discharging capacitors in a specific arrangement.
• ⚡ The Marx circuit, which employs multiple capacitors in parallel and series, overcomes cost and size limitations of single capacitors for high voltage applications.
• 💠 The waveform of the impulse voltage is shaped using wave shaping resistors to meet industry standards.
• 👾 The modified Marx circuit offers advantages such as space and cost savings, smaller control resistors, and improved efficiency in voltage generation.
• ⌛ The charging and discharging times are determined by the values of resistors and capacitors, ensuring the desired waveform characteristics.
• 😒 The generator uses spark gaps and triggering systems to initiate the discharge of capacitors.
• ⚡ Voltage dividers and oscilloscopes are used for voltage measurement during the testing of the impulse voltage on the test object.

Questions & Answers

Q: How does the multi-stage impulse generator work?

The generator charges capacitors in parallel and then discharges them in series, increasing the voltage as they are connected in series.

Q: Why is a bank of capacitors used instead of a single capacitor?

A single capacitor may be costly and large for high voltage ratings, so multiple capacitors are charged in parallel to overcome these limitations.

Q: How is the waveform of the impulse voltage shaped?

Wave shaping resistors are used to shape the discharge waveform, ensuring it meets the required standards for duration and amplitude.

Q: What are the advantages of the modified Marx circuit?

The modified circuit incorporates resistances inside the unit, saving space and cost. Additionally, the control resistors are smaller in size and the efficiency is higher.

Summary & Key Takeaways

• The multi-stage impulse generator uses a bank of capacitors charged in parallel and discharged in series to produce very high voltages.

• Charging resistors limit the charging current, and wave shaping resistors shape the discharge waveform.

• The modified Marx circuit incorporates resistances inside the unit to save space and cost, but may have limitations in waveform variation.
