Types of Enclosures for Motors - Selection of Motor Power Rating - Drives and control

TL;DR

This video discusses the importance of motor enclosures for protection and efficiency, and explores different types of enclosures.

Transcript

friends in this video we are detailing study about the different types of enclosures for your motor so let's begin friends first of all we can understand why enclosures are required for the motors so friends as we know that the first important aspect that's why we are requiring the enclosures that is the part will be called it as a protection but f... Read More

Key Insights

• 🧑‍🦼 Motor enclosures are essential for the protection and efficiency of motors, preventing damage from external factors.

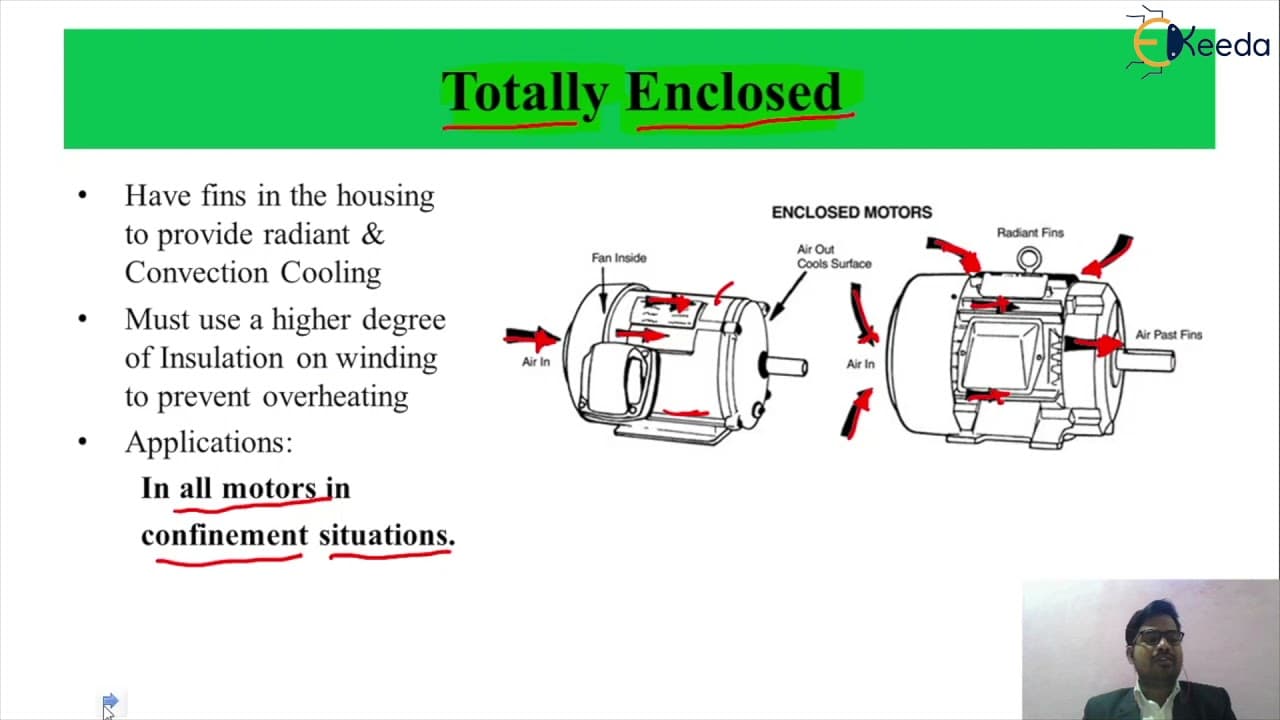

• 🤗 Open enclosures provide cooling through airflow, while totally enclosed enclosures offer maximum protection.
• 🎁 Different industries require specific types of enclosures depending on the environment and hazards present.
• 🧑‍🦼 National Electrical Manufacturers Association (NEMA) provides standard classifications for motor enclosures.
• 🤗 Enclosures can be classified as open drip proof, totally enclosed fan cooled, totally enclosed non-ventilated, air-over, wash-down, explosion-proof, and for hazardous locations.
• 🪡 Each type of enclosure has its unique features and applications, tailored to specific industry needs.
• 🧑‍🦼 Enclosures are labeled on motor number plates for easy identification and selection.

Questions & Answers

Q: Why are enclosures required for motors?

Enclosures are necessary to protect motor components such as windings and bearings from moisture, chemicals, and mechanical damages.

Q: What types of protection do different enclosures provide?

Different types of enclosures provide protection against winding temperature, moisture, dirt, dust, and even explosion-proofing.

Q: Where are open enclosures commonly used?

Open enclosures are used in indoor applications where cooling is needed, but moisture and explosive dust or gases are not present.

Q: What type of enclosure is preferred for hazardous locations?

For hazardous locations with explosive gases or dust, explosion-proof enclosures are preferred to ensure the safety of the motor and surrounding environment.

Summary & Key Takeaways

• Motor enclosures are necessary for protecting different motor components from moisture, chemicals, and mechanical damages.

• Different types of enclosures are required depending on the specific protection needs of the motor.

• Open enclosure allows airflow for cooling, while totally enclosed enclosures prevent the entry of external contaminants.
