Resistors in Electric Circuits (7 of 16) Adding Resistors in Parallel, Part 2

TL;DR

Explanation using PhET simulation on resistors in parallel circuits, demonstrating current flow and resistance changes.

Transcript

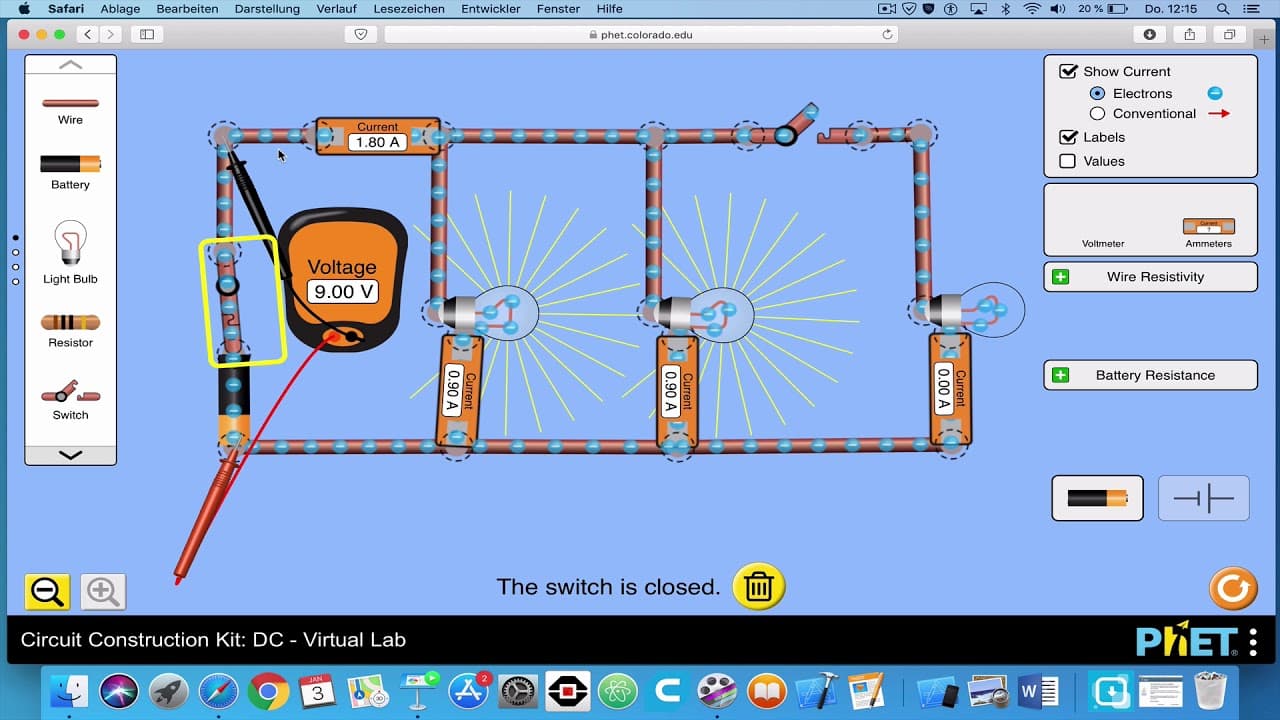

okay this video is video number two in adding resistors in parallel and this video I'm going to go through an explanation using one of the excellent simulations from PhET simulations and in the previous video I went through an explanation of detailed explanation with a keynote presentation which you can link to in the upper right hand corner of thi... Read More

Key Insights

• 😚 Closing the switch in a parallel circuit increases total current due to additional branches.
• 🪜 Adding resistors in parallel decreases the overall resistance in the circuit.
• 💦 Voltage drop across each bulb remains constant in a parallel circuit.
• 😚 Brightness of bulbs stays the same in a parallel circuit when the switch is closed.
• 💡 Current through branches and brightness of bulbs remain constant in a parallel circuit.
• 🦻 PhET simulations provide an excellent visual aid for understanding circuit phenomena.
• 👻 Parallel circuits allow for multiple paths of current flow, affecting total current and resistance.

Questions & Answers

Q: How does closing the switch in a parallel circuit affect total current?

Closing the switch in a parallel circuit increases the total current as additional branches are introduced, requiring more current flow through the circuit.

Q: Why does adding resistors in parallel decrease the overall resistance?

Adding resistors in parallel decreases resistance because current flows through multiple paths, reducing the overall resistance to current flow in the circuit.

Q: Why does the voltage drop across each bulb remain constant when the switch is closed?

The voltage drop across each bulb remains constant in a parallel circuit because each branch is directly connected to the battery, maintaining a consistent voltage supply to the bulbs.

Q: How does the brightness of bulbs in a parallel circuit stay the same when the switch is closed?

The brightness of bulbs in a parallel circuit remains constant as they are connected directly to the battery, ensuring a consistent power supply and illumination level.

Summary & Key Takeaways

• Video explores resistors in parallel circuits using PhET simulation.

• Shows how total current increases, resistance decreases, and brightness of bulbs remains constant when switch is closed.

• Demonstrates the impact on current, resistance, voltage drop, and bulb brightness with a visual simulation.
