Problem 2 Based on Continuous Time Convolution | Signals and Systems

TL;DR

Finding the convolution of two continuous time signals, x(t) and h(t), results in a signal, y(t), with specific characteristics.

Transcript

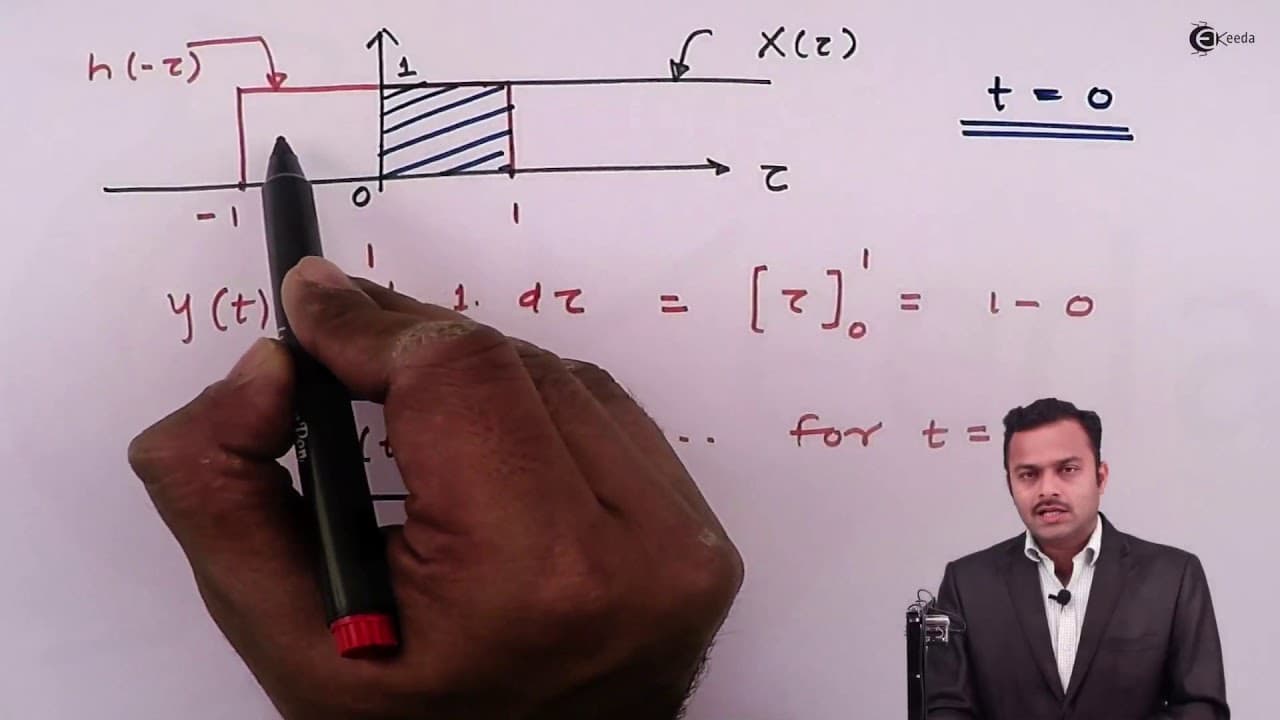

hello students in this video we are going to solve a problem based on convolution if you consider two continuous time signals so the statement of problem is like this obtain the convolution of x of t which is u of t and h of t is 1 for minus 1 less than equal to t less than equal to 1 so we have to get a y of t with the help of x of t and h of t wh... Read More

Key Insights

• 📡 The convolution of two continuous time signals involves integrating the product of the signals over a specified range of t.
• 🧡 The resulting signal, y(t), has distinct characteristics for different ranges of t.
• 🫥 The plot of y(t) consists of a straight line segment, a constant segment, and a single point.
• 🧡 The value of t determines the range in which y(t) takes on different values.
• 📡 Understanding the shift and overlap of the signals helps in determining the characteristics of the resulting signal.
• 📡 The convolution of signals helps in analyzing and understanding the combined effect of two signals.
• 📡 The convolution operation is a fundamental concept in signal processing.

Questions & Answers

Q: What is the problem in this video about?

The problem in this video involves finding the convolution of two continuous time signals, x(t) and h(t), given specific characteristics for each signal.

Q: How is the convolution of the signals obtained?

The convolution is obtained by using the convolution formula, which involves integrating the product of the two signals, x(t) and h(t), over a certain range of t.

Q: What are the characteristics of the resulting signal, y(t)?

The resulting signal, y(t), has different values for different ranges of t. It consists of a straight line segment, a constant segment, and a single point.

Q: How does the value of t affect the resulting signal, y(t)?

The value of t determines the range in which y(t) takes on different values. For different ranges of t, y(t) can be a straight line segment, a constant segment, or a single point.

Summary & Key Takeaways

• The problem involves finding the convolution of two signals, x(t) and h(t), where x(t) is a unit step function and h(t) is an impulse response with a value of 1 for -1 ≤ t ≤ 1.

• By using the convolution formula and plotting the signals, the integral is solved to obtain the values of y(t) for different ranges of t.

• The resulting plot of y(t) consists of a straight line segment, a constant segment, and a single point.
