Instruction Formats - CPU Architecture - Computer Organization and Architecture

TL;DR

Instruction formats in computer architecture determine the number of operands that can be supported by an instruction. Different register organizations have different formats, such as the single accumulator supporting one operand, general register supporting two or three operands, and stack organization with zero operands.

Transcript

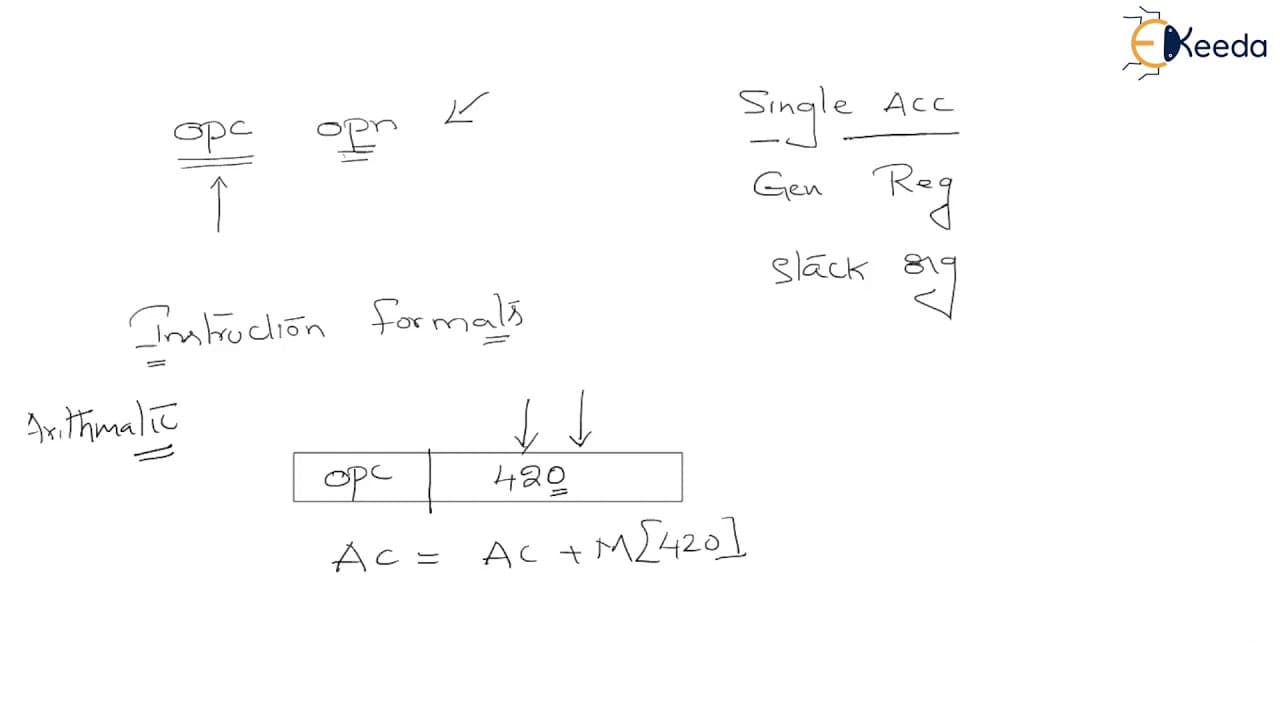

hello everyone in this session let us discuss a simple topic that is instruction format what do you mean by the instruction format let us recall an instruction when you talk about an instruction you know that instruction has an opcode instruction has a few operands right the instruction is generally in this form initially the instruction is going t... Read More

Key Insights

• 💁 Instruction formats determine the number and arrangement of operands in an instruction.
• 🔂 Single accumulator organization supports one operand, with the second operand always being the accumulator.
• ®️ General register organization can support two or three operands in an instruction.
• 0️⃣ Stack organization supports zero address instructions within the stack.
• 🔂 One address instructions can be found in the single accumulator organization.
• ®️ Two and three address instructions can be found in the general register organization.
• 🎭 Opcode specifies the operation to be performed, while operands provide the data.

Questions & Answers

Q: What is an instruction format in computer architecture?

An instruction format in computer architecture determines the structure and number of operands that can be supported by an instruction. It specifies how the opcode and operands are arranged in the instruction.

Q: What are the three types of register organizations mentioned in the content?

The three types of register organizations mentioned are single accumulator, general register, and stack organization.

Q: How many operands does the single accumulator organization support in an instruction?

The single accumulator organization supports one operand in an instruction. The second operand is always the accumulator.

Q: How many operands can the general register organization support in an instruction?

The general register organization can support a maximum of three operands in an instruction. It can be either a two-operand or three-operand instruction.

Summary & Key Takeaways

• Instruction formats determine the number of operands supported by an instruction.

• Single accumulator organization supports one operand, with the second operand always being the accumulator.

• General register organization supports two or three operands in an instruction.
