How to Measure Screw Thread Elements Accurately

TL;DR

To accurately measure screw thread elements, use methods like replica casting, two-wire, or three-wire techniques for dimensions such as major and minor diameters, pitch, flank angles, and effective diameters. Errors can arise from specification variations, making control of measurements essential to ensure mechanical strength and proper functionality.

Transcript

hello students today let us discuss the topic screw thread measurements so in this crude thread measurement we are going to learn the introduction of screw threads introduction of screw thread so a screw thread comprises of a helical group of specified cross sectional shape so here we can see this is a screw thread so it consists of a helical groov... Read More

Key Insights

• 😵 Screw threads have helical grooves with specified cross-sectional shapes and affect the function of fastening and power transmission.
• 🎮 Errors in screw thread measurements arise from specification variations and can be controlled through dimensional control.
• 🛜 Methods such as replica casting, two-wire or three-wire methods, and optical projection are used to measure different dimensions of screw threads.

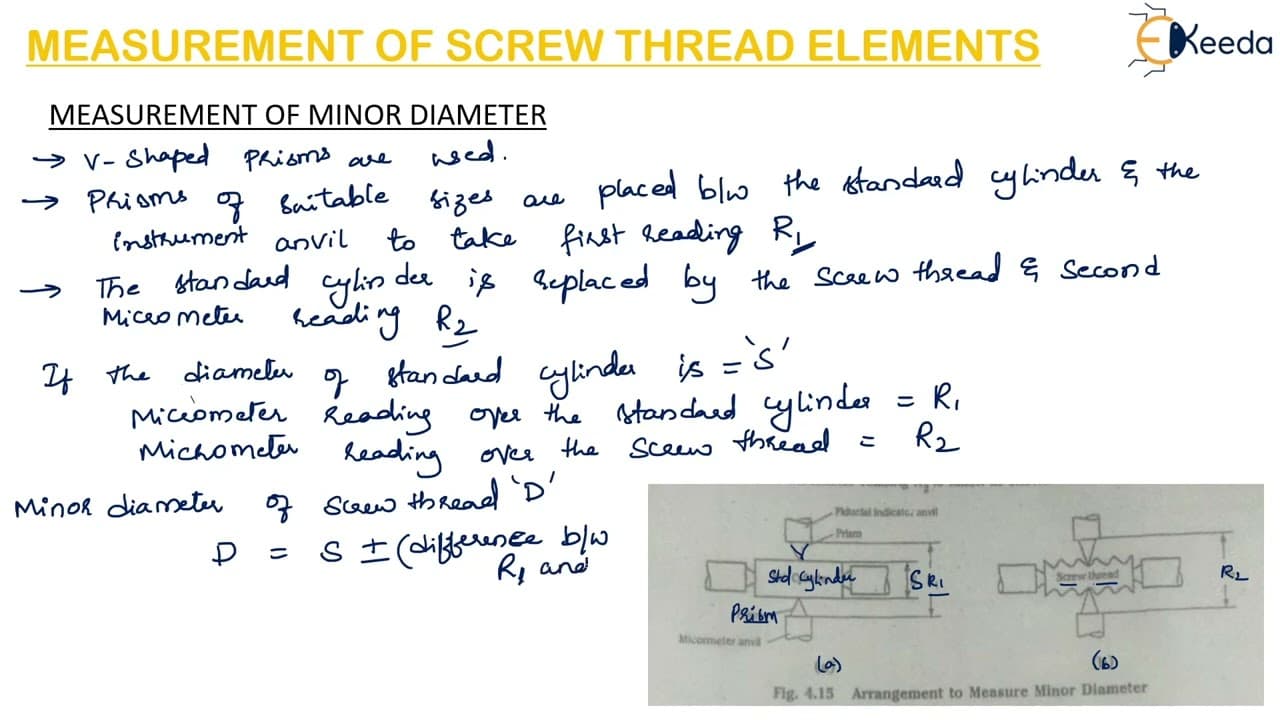

• 🎢 The minor diameter of internal threads can be measured using taper parallels or rollers.
• 🎰 The pitch and flank angle of screw threads can be measured using specialized tools, such as pitch measuring machines or optical projectors.
• 🧵 The effective diameter of screw threads cannot be directly measured but can be calculated using measurements of major and minor diameters.
• 🫥 Best size wires, determined by their contact at the effective diameter or pitch line, can be used for accurate measurements.

Questions & Answers

Q: What are screw threads used for?

Screw threads are used in fastening, power transmission, and measuring devices like micrometers and screw gauges.

Q: How are major and minor diameters of screw threads measured?

The major diameter of external threads can be directly measured, while the major diameter of internal threads can be measured indirectly by creating a replica through casting. The minor diameter of both types can be measured using taper parallels or three-wire methods.

Q: How is the pitch of a screw thread measured?

The pitch can be measured using a tool room microscope or a pitch measuring machine, which involves moving a stylus along the screw thread and measuring the micrometer movement.

Q: What is the significance of measuring the flank angle of screw threads?

Measuring the flank angle is important to ensure that the thread functions properly. Optical projection and protractor methods are commonly used to measure the angle.

Summary & Key Takeaways

• Screw threads consist of helical grooves formed on a cylindrical shape with a specified cross-sectional shape.

• Errors in screw thread measurements arise from specification variations.

• Measurement methods include replica casting, two-wire or three-wire methods, and optical projection for dimensions such as major and minor diameter, pitch, flank angle, and effective diameter.
