What Is Gate Capacitance in E-Only MOSFETs?

TL;DR

Gate capacitance in E-only MOSFETs is determined by the oxide capacitance (CoX) and the gate dimensions. Specifically, it can be calculated as CoX multiplied by the width (W) and length (L) of the gate plate. CoX for silicon dioxide is approximately 3.45 x 10^(-11) F/m, and the capacitance is influenced by applied voltages.

Transcript

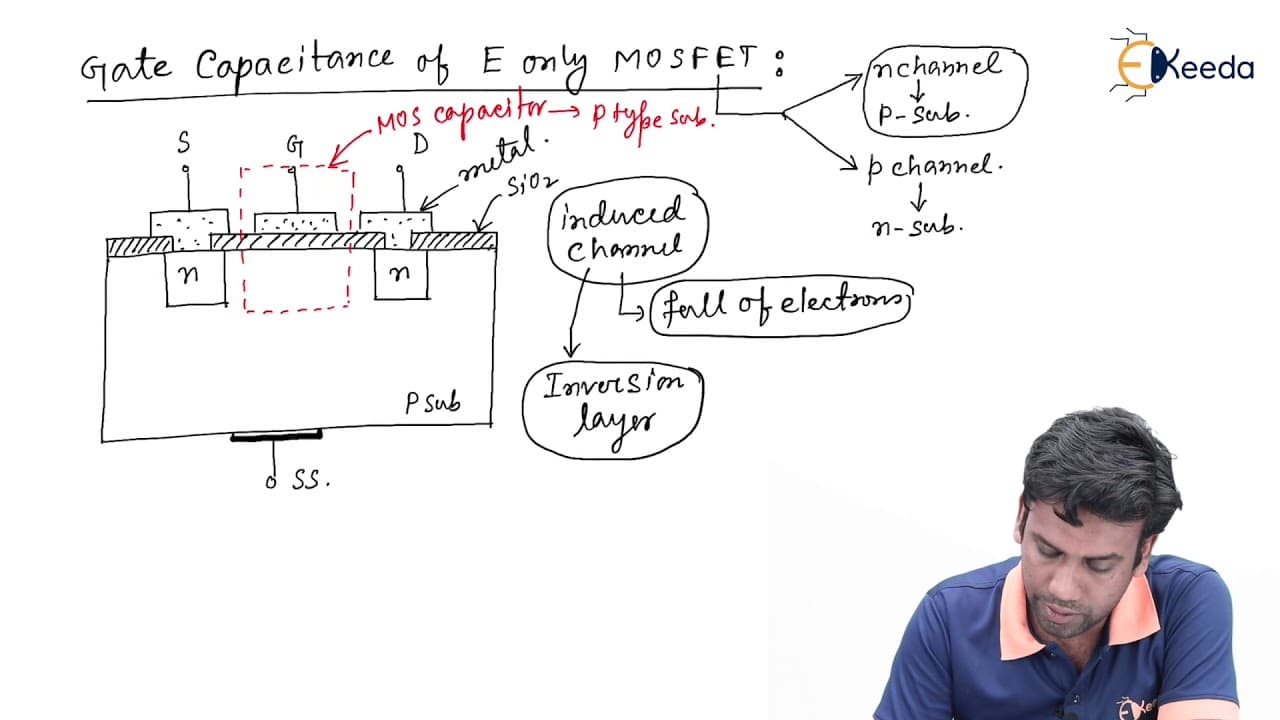

hello friends in this video we are going to discuss about the gate capacitance value of e le MOSFET so the gate capacitance of yanli MOSFET means the capacitance provided by the gate terminals now before going into the topic we know that a MOSFET or yanli MOSFET are of two types first one is in channel and the second one is p-channel and for in-cha... Read More

Key Insights

• 🍽️ Gate capacitance in an E le MOSFET is determined by the oxide capacitance per unit area and the dimensions of the gate plate.
• 😀 N-channel E le MOSFETs have a MOS capacitor with a p-type substrate.
• ⚡ The gate capacitance is voltage-controlled and can be written as CoX * W * L.
• 🆓 CoX for silicon dioxide is determined by the relative permittivity of silicon dioxide and is approximately 3.45 * 10^(-11) F/m.
• 🐎 Gate capacitance is an important parameter affecting the performance of MOSFETs, including their speed and input impedance.
• 🔬 The gate capacitance value can be influenced by adjusting the dimensions of the gate plate.
• ✊ Gate capacitance is crucial in the design of integrated circuits, as it affects power consumption and signal integrity.

Questions & Answers

Q: What is the gate capacitance in an E le MOSFET?

The gate capacitance in an E le MOSFET is determined by the capacitance of the oxide layer, which is controlled by applied voltages.

Q: How is the oxide capacitance per unit cross-sectional area (CoX) calculated?

The oxide capacitance per unit cross-sectional area (CoX) for a silicon dioxide layer is calculated using the relative permittivity (epsilon R) of silicon dioxide.

Q: How is the total gate capacitance (Cgate) calculated?

The total gate capacitance (Cgate) is calculated by multiplying the CoX value with the width (W) and length (L) of the gate plate.

Q: What is the significance of the gate capacitance in MOSFETs?

The gate capacitance in MOSFETs plays a crucial role in determining the input impedance, switching speed, and overall performance of the device.

Summary & Key Takeaways

• The gate capacitance of an N-channel E le MOSFET is determined by the capacitance of the oxide layer, which is controlled by applied voltages.

• The oxide capacitance per unit cross-sectional area (CoX) for a silicon dioxide layer can be calculated using the relative permittivity (epsilon R) of silicon dioxide.

• The total gate capacitance (Cgate) is calculated by multiplying CoX with the width (W) and length (L) of the gate plate.
