Design of Shear Wall at Core of Building

TL;DR

This lecture provides a revision on designing a share wall using different parameters and commands, emphasizing the importance of analyzing various aspects.

Transcript

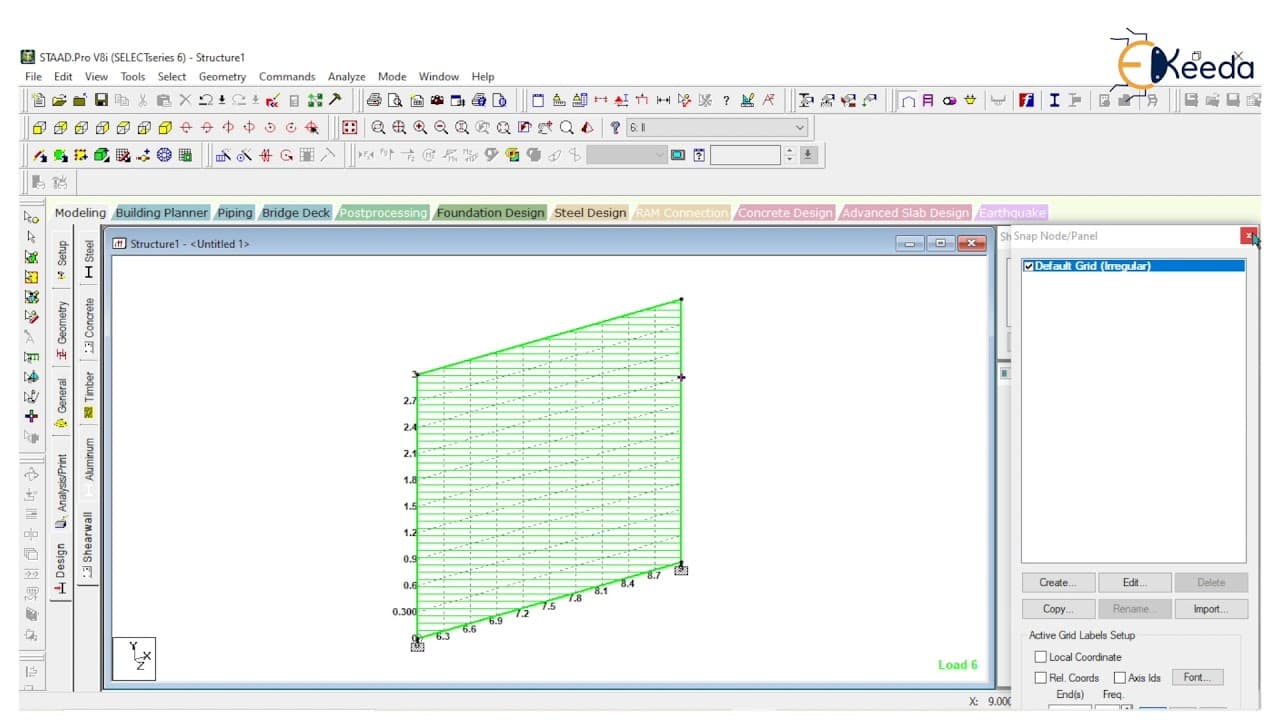

hey guys welcome back in this lecture we will learn how to design a share one at the core of that particular building in previous lecture we created a share wall at the pour the process of design of share wall at pour and at the phases are same this lecture is for revision of the design I have created a share wall at one place because of the time i... Read More

Key Insights

• 🎨 Designing a share wall involves creating patterns, selecting panel types, and assigning parameters.
• 🏛️ The design process remains consistent for all phases of the building, including corners.
• 🇼🇫 Analyzing and calculating the design for multiple share walls is crucial, as the time required increases with the number of walls.
• 🧑‍🏭 The reinforcement for share walls can vary based on the height, with the center-to-center distance also being a factor.
• 📽️ Real projects may have a significant number of share walls, requiring thorough consideration and calculation.
• 🎨 The lecture emphasizes the importance of assigning parameters and analyzing the design for efficient results.
• 👻 Adjusting the reinforcement based on the height of the share wall allows for customization and structural optimization.

Questions & Answers

Q: What are the key steps to consider when designing a share wall?

The key steps include creating panels, selecting panel types, assigning parameters, and analyzing the design. These steps ensure a comprehensive and efficient design process for the share wall.

Q: How does the time required for design and analysis change with the number of share walls?

The time required increases as the number of share walls increases. It is important to calculate for all share walls in real projects, considering that there may be 20, 40, or even 50 share walls in some buildings.

Q: Are there any variations in reinforcement based on the height of the share wall?

Yes, the reinforcement may vary based on the height of the share wall. For example, at a height of three meters, two bars of 12mm diameter are recommended, with a center-to-center distance of 450 mm.

Q: How do you adjust the reinforcement as per the height of the share wall?

To adjust the reinforcement, the number of bars and their diameter can be changed according to the height of the share wall. The lecture provides examples of reinforcement changes at various heights.

Summary & Key Takeaways

• The lecture revisits the process of designing a share wall, focusing on creating patterns, selecting panel types, and assigning parameters.

• The design process remains consistent for all phases of the building, with the same steps being implemented for share walls at corners.

• The lecture highlights the importance of analyzing and calculating the design for multiple share walls, as the time required increases with the number of walls.
