4th Numerical of Impact of Jets - Impact of Jets - Applied Hydraulics

TL;DR

A detailed explanation of how to calculate the rate of flow of water in a jet impacting a fixed plate.

Transcript

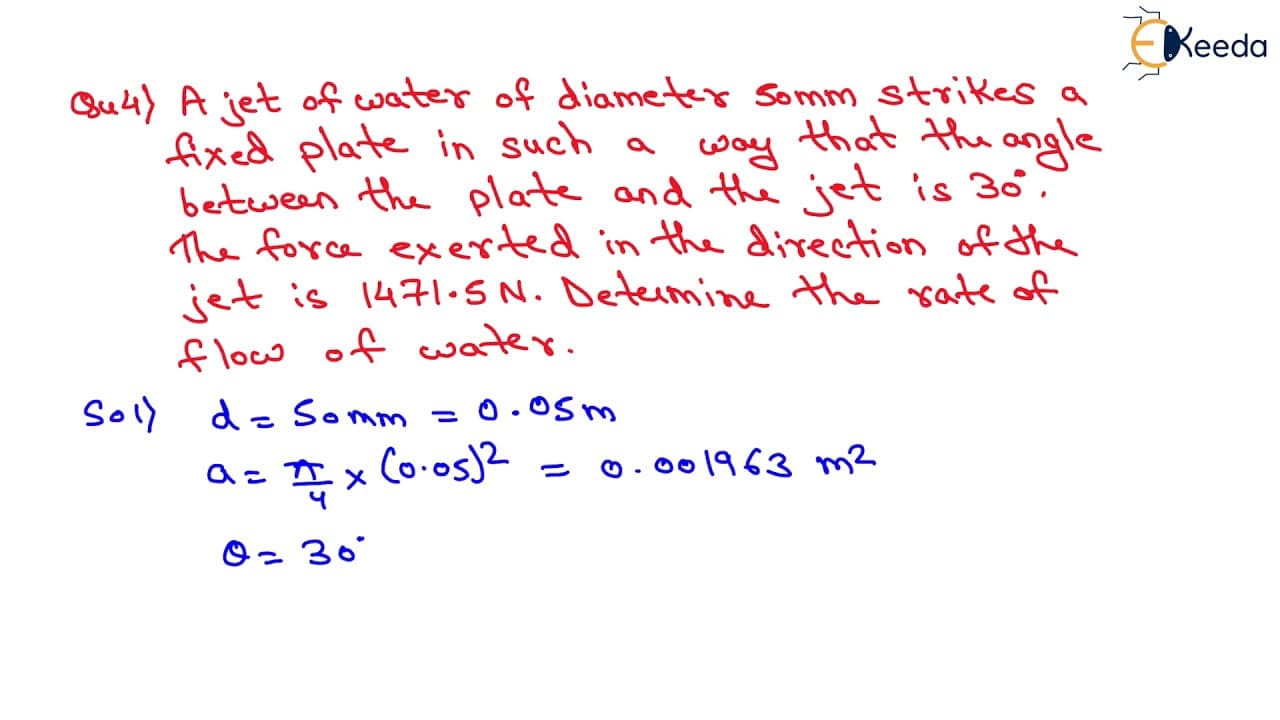

hello students today we are going to solve fourth numerical of impact of jet question is given as a jet of water of diameter 50 mm strikes a fixed plate in such a way that the angle between the plate and the jet is 30 degree the force exerted in the direction of the jet is 1471.5 newton now we have to determine the rate of flow of water now we will... Read More

Key Insights

• 🤽 The diameter of the nozzle and the angle between the jet and the plate play a significant role in determining the force and rate of flow of the water jet.
• ☠️ Calculating the cross-sectional area of the nozzle is essential for determining the rate of flow of water.
• 😵 The velocity of the water jet can be found using the given force, cross-sectional area, and angle.

Questions & Answers

Q: How is the cross-sectional area of the nozzle calculated?

The cross-sectional area of the nozzle is calculated using the formula A = π/4 * (diameter)^2, which in this case is equal to 0.001963 meter square.

Q: How is the velocity of the water jet determined?

The velocity is found using the equation fx = ρAV^2sin^2(θ), where fx is the force in the direction of the jet, ρ is the density of water, A is the cross-sectional area, V is the velocity, and θ is the angle between the jet and the plate. Rearranging the equation, we can solve for V, which is found to be 54.77 meter per second.

Q: How is the rate of flow of water calculated?

The rate of flow, or discharge, is calculated by multiplying the cross-sectional area of the nozzle with the velocity. In this case, the discharge is found to be 0.1075 meter cube per second, which can be converted to 107.5 liters per second.

Q: What is the significance of determining the rate of flow of water in this context?

The rate of flow of water is important in understanding the impact force and efficiency of a water jet on a fixed plate. It can help in analyzing and optimizing the design and performance of systems that use water jets, such as hydraulic machinery or cleaning equipment.

Summary & Key Takeaways

• The problem involves a jet of water with a diameter of 50 mm striking a fixed plate at an angle of 30 degrees, exerting a force of 1471.5 newton in the direction of the jet.

• Using the given measurements, the cross-sectional area of the nozzle is calculated to be 0.001963 meter square, and the velocity is found to be 54.77 meter per second.

• By multiplying the cross-sectional area with the velocity, the discharge or rate of flow of water is determined to be 107.5 liters per second.
