Forced Vibrations Numerical 1 - Forced Single Degree of Freedom Vibratory System

TL;DR

This video discusses a numerical problem involving forced vibrations and parallel springs, aiming to find the stiffness value.

Transcript

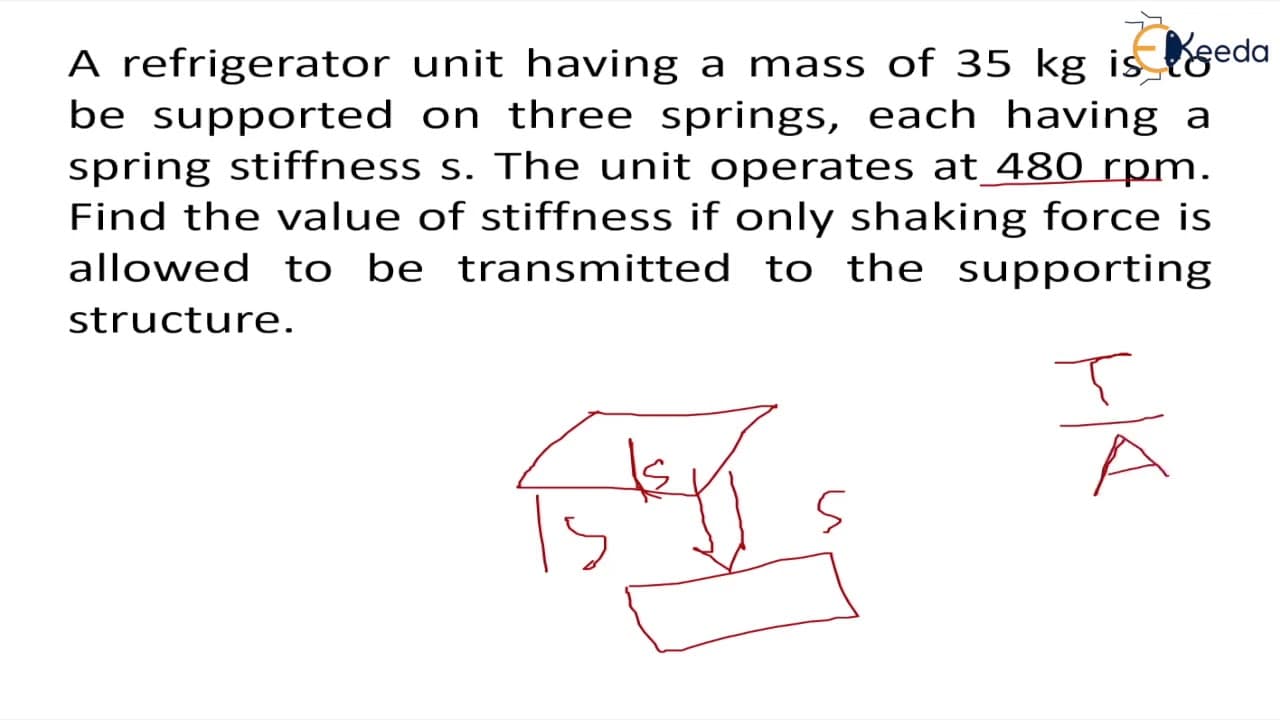

hello everyone in this video we'll discuss a numerical on forced vibrations the question says that there is a refrigerator unit which has a mass of 35 kilogram and it is supported by three springs now when any body is supported by springs that means these springs are in parallel right so if let's say the body is being supported in this way so we se... Read More

Key Insights

• 🤝 Forced vibrations can be analyzed using the transmissibility formula to understand the transmission of shaking forces in a system.
• 🤝 Parallel springs offer effective support in absorbing and transmitting shaking forces.
• 💬 Equivalent stiffness is the combined stiffness of multiple springs in parallel, and in this case, it is found to be 2.679 Newton per mm.
• 💆 The natural frequency of a system can be calculated using the mass and spring stiffness.
• 🤘 Finding a valid solution often requires considering both the positive and negative signs in equations.
• 🎁 Damper usage affects the transmissibility formulas but is not present in this particular problem.
• 🦾 Studying forced vibrations can provide insights into the behavior and performance of mechanical systems.

Questions & Answers

Q: What is the purpose of finding the value of stiffness in this numerical problem?

The stiffness value helps determine how much shaking force is transmitted to the supporting structure and allows for understanding the system's behavior during forced vibrations.

Q: How is the transmissibility of the force defined?

Transmissibility is the ratio of the transmitted force to the applied force. It provides insights into the efficiency of transferring shaking forces in the system.

Q: Why are parallel springs used in this problem?

Parallel springs offer increased support and stability to the refrigerator unit, allowing for better absorption and transmission of shaking forces during vibrations.

Q: Why did the positive sign in the equation for equivalent stiffness yield an impossible solution?

The positive sign in the equation leads to an incorrect solution because it violates the physical constraints of the system. Using the negative sign provides a valid solution.

Summary & Key Takeaways

• The video introduces a numerical problem on forced vibrations, focusing on a refrigerator unit supported by three parallel springs.

• The task is to determine the stiffness value if only shaking forces are transmitted to the supporting structure.

• The transmissibility formula is used to calculate the equivalent stiffness and natural frequency of the system.
