B+ tree is a balanced multiversion tree with leaf nodes connected sequentially and all non-leaf keys stored again in leaf nodes.

Transcript

dear students i am sameer valenkar i welcome all of you to this another video on bplustree now in the earlier four three four videos we saw b3 balanced multivatory now b plus tree is just an extension of b3 as the name suggests b plus so it has some added features basically all the properties of p tree are there in b plus tree also so b plus tree i... Read More

Key Insights

• 🎋 B+ trees are an extension of B-trees, with added features and properties.
• 🌲 All leaf nodes in a B+ tree are at the same level and connected sequentially using additional pointers.
• 🍀 Non-leaf keys in a B+ tree are stored again in one of the leaf nodes, following a specific rule.
• 👻 B+ trees allow for efficient range queries and are commonly used in database management systems.
• 🌲 B+ trees provide balanced searching and insertion operations.

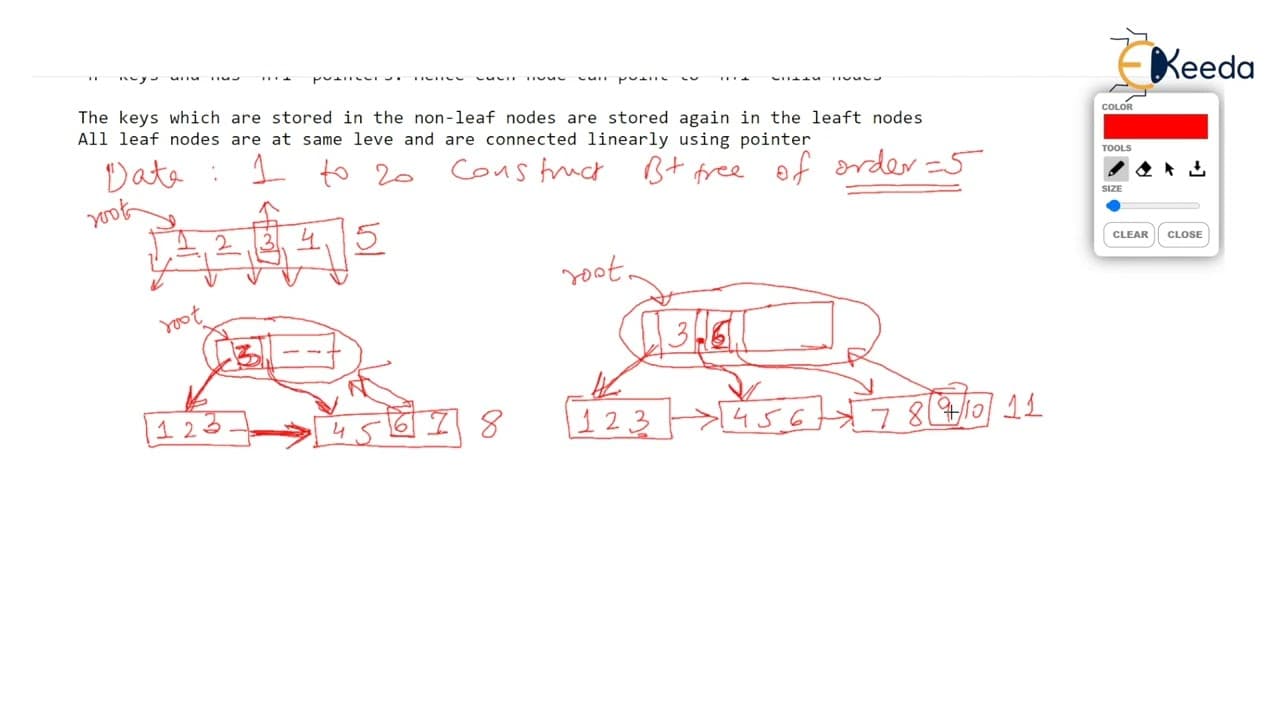

• 🤩 B+ trees are constructed by inserting keys in sorted order and splitting nodes when they become full.
• 🤩 The construction of a B+ tree ensures that all leaf nodes are connected and keys are stored in sorted order.

Questions & Answers

Q: What is the main difference between a B-tree and a B+ tree?

The main difference is that all leaf nodes in a B+ tree are connected sequentially using additional pointers. In a B-tree, leaf nodes are not connected sequentially.

Q: How are non-leaf keys stored in a B+ tree?

Non-leaf keys in a B+ tree are stored again in one of the leaf nodes. The specific leaf node where the key is stored depends on the rule set by the programmer.

Q: What are the advantages of using a B+ tree?

B+ trees allow for efficient range queries, as all leaf nodes are connected and keys are stored in sorted order. B+ trees are also balanced and provide fast searching and insertion operations.

Q: How is a B+ tree constructed?

To construct a B+ tree, keys are inserted in sorted order. If a node becomes full, it is split into two nodes, and the median value is propagated up to become a new parent node.

Summary & Key Takeaways

• B+ tree is an extension of the B-tree, with added features and properties.

• All leaf nodes in a B+ tree are at the same level and connected sequentially using additional pointers.

• Each non-leaf key in a B+ tree is also stored in one of the leaf nodes, following a specific rule.
