Bar Bending Schedule of Columns

TL;DR

This content provides a detailed explanation of how to calculate the quantity of reinforcement for columns in construction projects.

Transcript

hello everyone i welcome you all to this course certification in quantity survey and we are dealing with the quantity calculation of the reinforcement in this module we are going to look for the quantity calculation of the column itself so let us see what exactly are the dimensions given to us and what are the learnings from the given you know diag... Read More

Key Insights

• 😓 Columns and foundations are cast together on-site, although they are calculated separately for quantity determination.
• 🤢 Reinforcement for columns includes longitudinal bars, which run the entire length of the column, and lateral ties, which hold the reinforcement in place.
• 🤢 Dimensions such as cover thickness and bar diameter are taken into account in the calculations.
• 🤢 The length of longitudinal bars is determined by counting the number of bars present.
• 👔 The number and length of lateral ties are calculated using specific formulas.
• ❓ The calculation of reinforcement quantity is crucial for ensuring the structural integrity and durability of columns.
• 🤢 Bar bending schedules provide a comprehensive representation of the reinforcement details.

Questions & Answers

Q: How are column reinforcement and foundation reinforcement cast and calculated?

Column reinforcement and foundation reinforcement are cast together on-site, even though they are calculated separately. This is done to ensure better structural integrity and maximum output.

Q: What are lateral ties and what is their function?

Lateral ties are horizontal bars that hold the vertical reinforcement in place to prevent bulging or shear stresses caused by gravity. They help to maintain the integrity of the reinforcement.

Q: How is the length of longitudinal bars calculated?

The length of longitudinal bars in a column is simply counted based on the number of bars present. There is no need for a formula to calculate their length.

Q: How is the number of lateral ties determined?

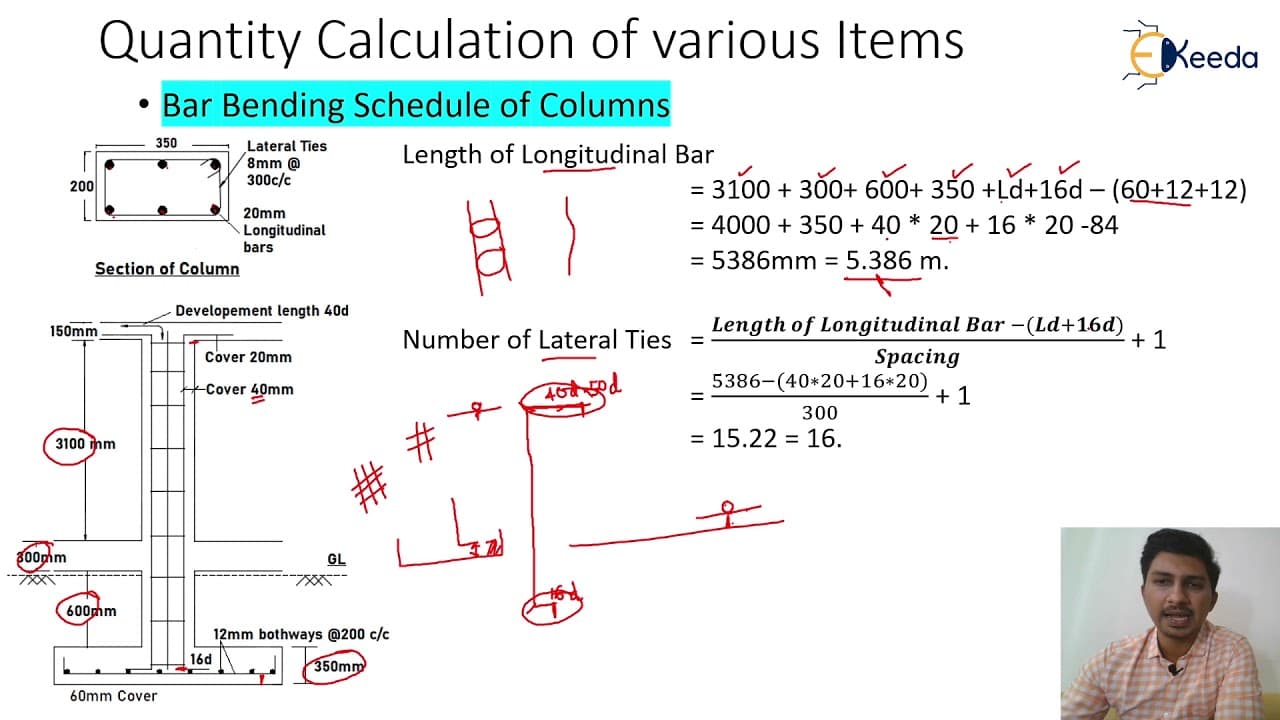

The number of lateral ties is determined by subtracting the development length and 16 times the diameter of the bar from the total length of the longitudinal bars. It is then divided by the spacing between the ties, and one additional tie is added to complete the total value.

Summary & Key Takeaways

• The content discusses the dimensions and components of column reinforcement, including longitudinal bars, lateral ties, and foundations.

• It explains how the reinforcement for columns and foundations are cast together on-site, despite being calculated separately.

• The content provides formulas and calculations for determining the length and number of bars and ties, taking into account cover dimensions and bending factors.
