Types of Joints - Welding Process - Production Process 1

TL;DR

This video discusses the various types of joint welding, including butt joint, corner joint, T joint, lap joint, and edge joint.

Transcript

click the bell icon to get latest videos from Ekeeda Hello friends today we are going to do any with joints and what are the types of joining welding comes with joining so in welding joining takes place in a different way so hot are the types of joint that we are going to see in this video so I'll talk about joints two or more parts as I had said n... Read More

Key Insights

• 🥳 Joint welding involves joining two or more parts using different processes.
• 🅰️ The five basic types of joint welding are butt joint, corner joint, T joint, lap joint, and edge joint.
• ✈️ Butt joint welding is done in a single plane, while corner joint welding is done at the corners of a structure or object.
• ✈️ T joint welding involves joining two planes aligned like a T shape.
• ❓ Lap joint welding involves overlapping two surfaces partially.
• 🦔 Edge joint welding only welds specific edges, making it weaker compared to other types of joint welding.
• 🅰️ Each type of joint welding has its own applications and characteristics.

Questions & Answers

Q: What is a butt joint in welding?

A butt joint is a type of joint welding where two parts or planes are joined in a single plane. Welding is done between the two joint surfaces using gas arc or other methods.

Q: How is corner joint welding performed?

In corner joint welding, the welding is done at the corner of a structure or object. If the corner is at a right angle, welding is done on the outer corner, while if the corner is obtuse or acute, welding is done on the inner corner.

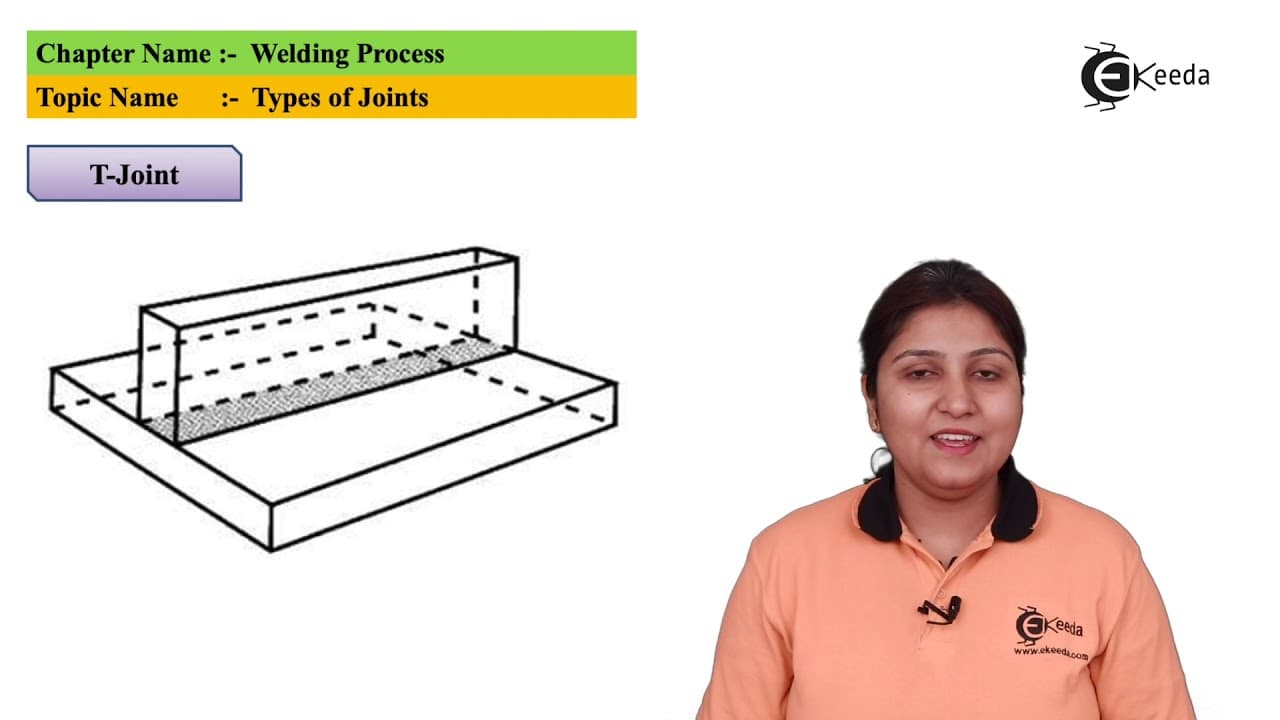

Q: What is the significance of T joint welding?

T joint welding involves joining two planes in the shape of a T. It can be done at one or two corners, making it a strong joint. The joining surfaces are aligned, resembling a single plane.

Q: How does a lap joint differ from other types of joint welding?

In a lap joint, two surfaces are joined together, but not in a single plane. The welding is done partially on one surface and partially on another, creating an overlapping effect.

Summary & Key Takeaways

• The video introduces the concept of joint welding and explains that it involves joining two or more parts using different processes.

• It highlights the five basic types of joint welding: butt joint, corner joint, T joint, lap joint, and edge joint.

• Each type of joint welding is described, highlighting their unique characteristics and applications.
