Controllability and Observability Problem No 4 - State Space Analysis - Control Systems

TL;DR

Learn how to check the controllability and observability of a system using state space equations and matrix calculations.

Transcript

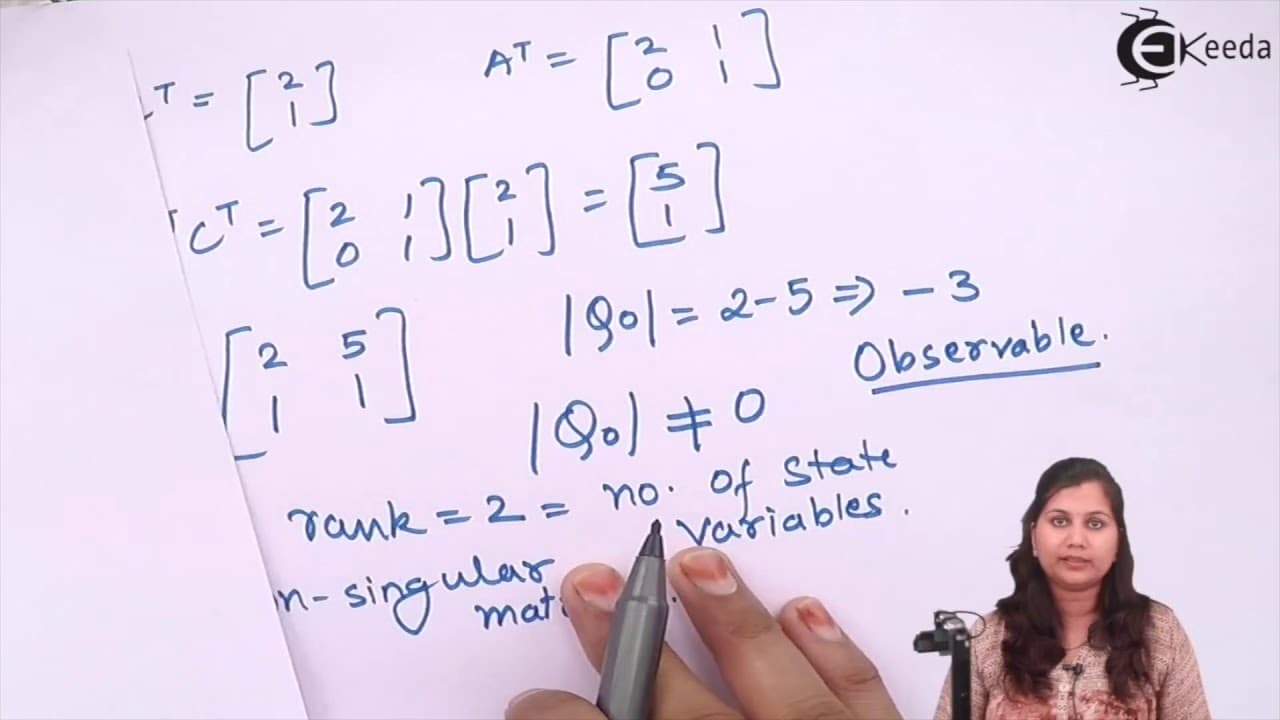

hello friends in this video we are going to solve a problem on how to check the controllability and observability of a system so let's take a problem so our question is to with we have to check whether the system is fully controllable and observable and equations are given to us the state space equations and the value of abc matrices is also given ... Read More

Key Insights

• ❓ Controllability and observability are crucial properties to analyze when studying system behavior.
• ✖️ Calculating the controllability and observability matrices involves matrix multiplications and determinants.
• 😜 The rank of the controllability and observability matrices determines the system's controllability and observability.
• ❓ Singular matrices indicate the system is either not controllable or not observable.

Questions & Answers

Q: What is the purpose of checking the controllability and observability of a system?

Checking the controllability and observability of a system helps determine whether the system can be effectively controlled and observed. It ensures that the system's behavior can be properly analyzed and controlled in real-world applications.

Q: How do you calculate the controllability test matrix (qc)?

To calculate qc, multiply the matrix a and matrix b. The elements of qc matrix are determined by multiplying the corresponding elements of a and b, and adding them up. The rank of the qc matrix is then checked to determine controllability.

Q: What does it mean if the determinant of the qc matrix is zero?

If the determinant of the qc matrix is zero, it indicates that the system is not controllable. A zero determinant means that the qc matrix is a singular matrix and does not have full control over the system's behavior.

Q: How do you calculate the observability test matrix (q naught)?

To calculate q naught, multiply the transpose of matrix c and the transpose of matrix a, and then multiply the result with matrix c. The elements of q naught matrix are determined by these calculations. The rank of the q naught matrix is then checked to determine observability.

Summary & Key Takeaways

• The video discusses how to check if a system is fully controllable and observable based on given state space equations and matrix values.

• It provides step-by-step instructions on calculating the controllability test matrix (qc) and the observability test matrix (q naught) to determine the system's controllability and observability.

• The video presents two example systems and demonstrates how to apply the calculations to determine their controllability and observability.
