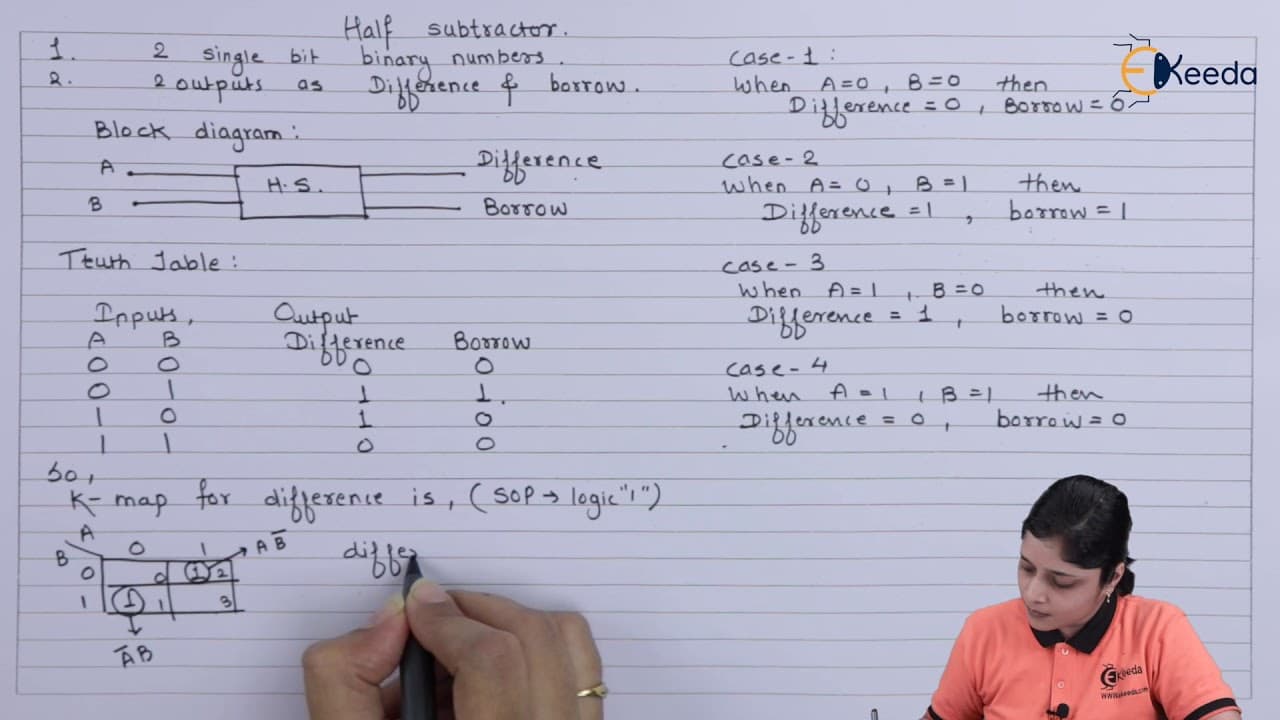

Half Subtractor Circuit | Number System and Code | Digital Circuit Design in EXTC Engineering

TL;DR

Half subtractor circuits are used to subtract two single bit binary numbers, providing outputs for difference and borrow.

Transcript

click the Bell icon to get latest videos from akira hello friends now we are going to consider the concept of half subtractor let's start the discussion with half subtracted now we have already seen the half adder then we have seen full adder after that we have half subtractor now for subtraction purpose half subtractor circuit is used let's see it... Read More

Key Insights

• 🫦 Half subtractor circuits are used for subtracting two single bit binary numbers.
• 🔠 The circuit has two inputs (A and B) and two outputs (difference and borrow).
• 🛀 The truth table shows the different combinations of inputs and their corresponding outputs.
• 🚰 The equations for difference and borrow can be derived from the truth table.
• 🔬 The circuit for difference involves an XOR gate, while the circuit for borrow involves an AND gate.
• 🔬 The circuits can be realized using basic logic gates.
• 🍁 The Karnaugh map technique can be used to derive the minimized equations for difference and borrow.

Questions & Answers

Q: What is the purpose of a half subtractor circuit?

The purpose of a half subtractor circuit is to subtract two single bit binary numbers, providing outputs for difference and borrow.

Q: How many inputs and outputs does a half subtractor circuit have?

A half subtractor circuit has two inputs, A and B, and two outputs, difference and borrow.

Q: Can you explain the truth table for a half subtractor circuit?

The truth table for a half subtractor circuit has 4 rows, representing 4 different combinations of inputs (0 0, 0 1, 1 0, 1 1). It shows the corresponding outputs for difference and borrow.

Q: What are the equations for difference and borrow in a half subtractor circuit?

The equation for difference is A XOR B, which can also be written as A B' + A' B. The equation for borrow is A' B.

Summary & Key Takeaways

• Half subtractor circuits are used for subtraction purposes, subtracting two single bit binary numbers.

• The circuit has two inputs, A and B, and two outputs, difference and borrow.

• The truth table for the circuit shows the different combinations of inputs and their corresponding outputs.
