Unit Setting

TL;DR

Learn how to set the units for a model in Trio software, either by converting dimensions or interpreting them.

Transcript

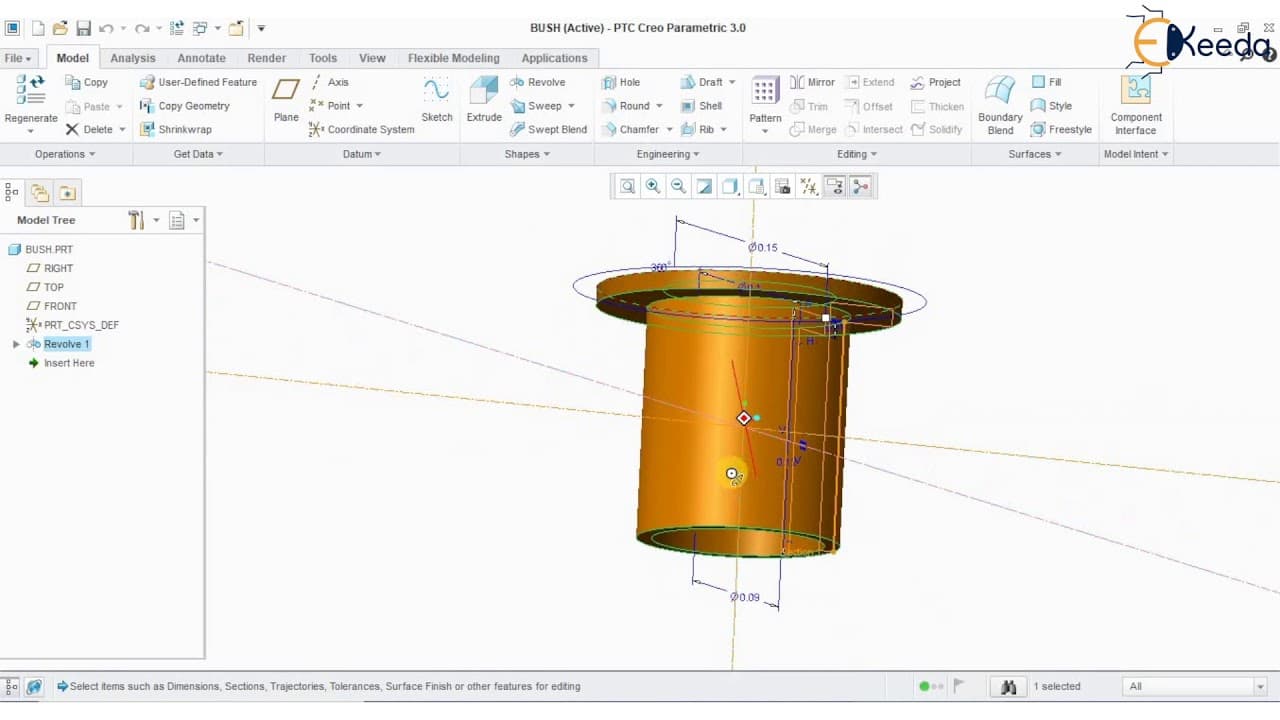

hello students today we will see how to set the units for the given model we have an example here it's a bush model i want to set the units for this push let us see how to do this go to file we have this option here something called repair file click prepare model properties in the modern property tab you have something called units by default we w... Read More

Key Insights

• 😫 Trio software allows users to set the units for a model, providing options for converting dimensions or interpreting them.
• 🤒 The units can be defined as millimeter newton second, centimeter gram second, meter kilogram second, inches pound second, or other available systems.
• 🇦🇪 Converting dimensions will adjust all dimension values according to the chosen units, while interpreting dimensions only changes the unit places.
• 🪡 It is possible to switch between different unit systems, converting or interpreting the dimensions as needed.
• 👻 Double-clicking on dimensions allows users to check and verify the converted values.
• 👻 Trio software offers flexibility in unit management, allowing customization based on user preferences.
• 🇦🇪 The system of units in Trio software ensures consistency and accuracy in modeling and calculations.

Questions & Answers

Q: How can I set the units for a model in Trio software?

To set the units, go to File, click on Prepare Model Properties, and select the desired system. You can then choose to convert dimensions or interpret them.

Q: What happens when I choose to convert dimensions?

When you choose to convert dimensions, the complete units will be converted according to the selected system. All dimension values will be adjusted accordingly.

Q: Can I change the units without converting the dimension values?

Yes, you can choose to interpret dimensions instead of converting them. This will only change the unit places, leaving the dimension values as they are.

Q: How can I switch back to the original units after converting or interpreting dimensions?

To switch back, go to File, click on Prepare Model Properties, and choose the original units. This will convert the dimensions back to their original values.

Summary & Key Takeaways

• To set the units for a model in Trio software, go to File and click on Prepare Model Properties. In the Units section, select the desired system (e.g. millimeter newton second).

• If you want to convert existing dimensions, choose the "Convert Dimensions" option. If you want to keep the dimension values and only change the units, choose the "Interpret Dimensions" option.

• The dimensions will be converted accordingly, and you can double-click on them to check the changes.
