RC Band Pass Filters - How To Design The Circuit | Summary and Q&A

TL;DR

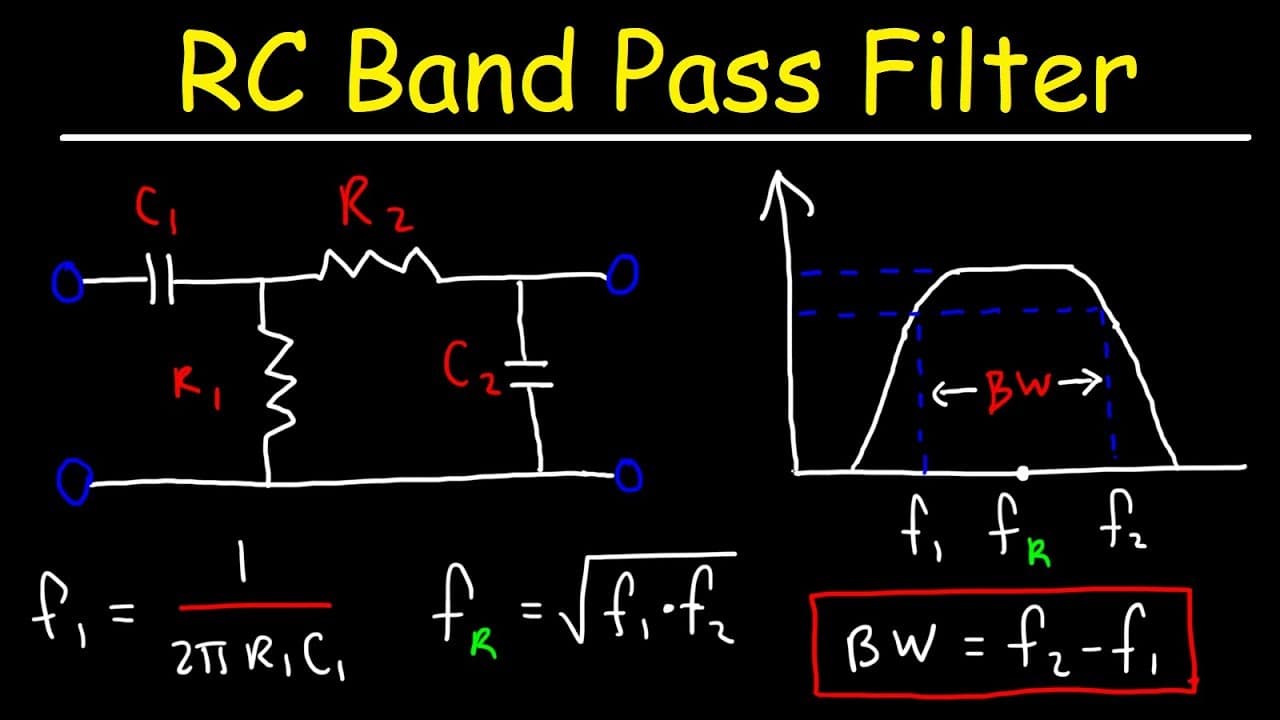

This video explains the concepts of high pass, low pass, and bandpass filters using RC circuits, and provides examples of calculating cutoff frequencies, resonant frequencies, and bandwidth for bandpass filters.

Key Insights

• 👻 RC circuits can be used to create high pass and low pass filters to allow or block specific frequency ranges.
• 👻 Combining high pass and low pass circuits creates a bandpass filter that allows mid-level signals to pass through while blocking low and high frequencies.
• ❓ The cutoff frequencies, resonant frequency, and bandwidth of a bandpass filter can be calculated using specific formulas involving the resistor and capacitor values.
• 👻 Adjusting the resistor and capacitor values allows us to tailor the center frequency and bandwidth of a bandpass filter.

Transcript

Read and summarize the transcript of this video on Glasp Reader (beta).

Questions & Answers

Q: What is the main purpose of an RC bandpass filter?

The main purpose of an RC bandpass filter is to allow a specific range of frequencies, known as the mid-level signals, to pass through while blocking both low and high frequencies.

Q: How is the resonant frequency of a bandpass filter calculated?

The resonant frequency of a bandpass filter can be calculated by taking the square root of the product of the two cutoff frequencies.

Q: Can we adjust the center frequency and bandwidth of a bandpass filter?

Yes, by modifying the values of the resistors and capacitors in the circuit, we can adjust the center frequency and bandwidth of a bandpass filter.

Q: What happens if the bandwidth of a bandpass filter is much smaller than the resonant frequency?

When the bandwidth is small compared to the resonant frequency, the average frequency and resonant frequency will be approximately the same, allowing us to calculate the cutoff frequencies using the resonant frequency and half of the bandwidth.

Summary & Key Takeaways

• The video starts by explaining high pass and low pass filters using RC circuits, demonstrating how they allow certain frequencies to pass while blocking others.

• The concept of combining high pass and low pass circuits to create a bandpass filter is then explained, along with the frequency response graph for this type of filter.

• The video provides examples of calculating cutoff frequencies, resonant frequencies, and bandwidth for different bandpass filters using given resistor and capacitor values.
