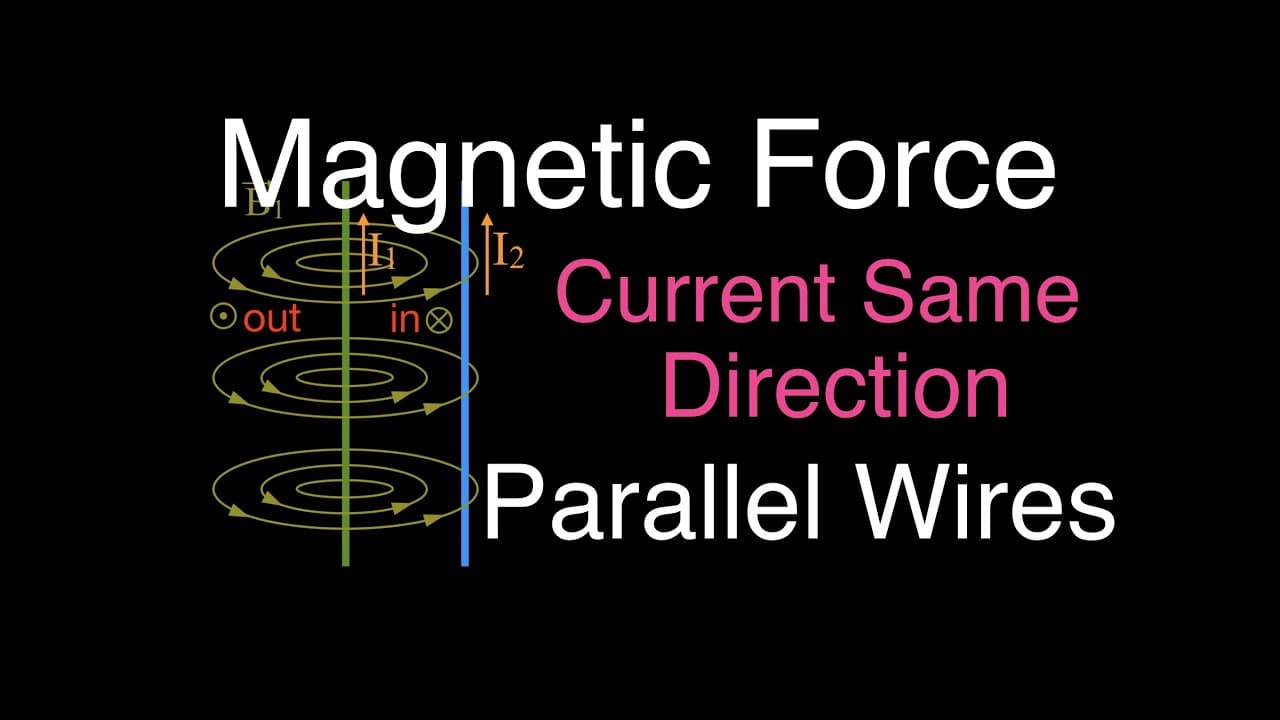

Magnetism (10 of 13) Magnetic Force Due to Parallel Wires, Current Same Direction

TL;DR

This video explains how to determine the direction of forces on parallel wires carrying currents in the same direction.

Transcript

and see in today's video we're gonna be going over how to determine the direction of the forces on parallel wires that are carrying a current through them and in this video we talked about the forces from parallel wires that have the currents are flowing in the same direction in the next video we'll do that for opposite directions and then we'll al... Read More

Key Insights

• 🛜 Parallel wires carrying currents in the same direction experience a force of attraction between them.
• 🫱 Determining the direction of the force between two parallel wires involves using the right-hand rule.
• 🛜 Magnetic fields produced by current-carrying wires interact with each other, resulting in the force between the wires.
• 🛜 The force between parallel wires carrying currents in opposite directions is a force of repulsion.
• 🏑 The direction of the current and the magnetic field determines the direction of the force between the wires.
• 🫱 The right-hand rule is a useful tool in determining the direction of the force in current-carrying wire systems.
• 🎮 The video suggests watching the next video for determining the amount of force between parallel wires.

Questions & Answers

Q: How do you determine the direction of force on wire 2 from wire 1?

By using the right-hand rule, point your thumb in the direction of the current and your fingers in the direction of the magnetic field created by wire 1. The palm of your hand will indicate the direction of the force, which is to the left.

Q: What happens when the currents in the parallel wires are flowing in the opposite direction?

When the currents in the wires are flowing in the opposite direction, there is a force of repulsion between the wires. The direction of this force can be determined using the same right-hand rule.

Q: Is the force always attractive between parallel wires carrying currents in the same direction?

Yes, when the currents in the wires are flowing in the same direction, the force between them is always attractive. This is because the magnetic fields generated by the currents interact with each other, resulting in an attractive force.

Q: What is the significance of using the right-hand rule in determining the direction of forces?

The right-hand rule allows us to relate the direction of current, magnetic field, and force. By assigning specific directions to our fingers, thumb, and palm, we can easily determine the direction of the force acting on the wires.

Summary & Key Takeaways

• The video discusses how to determine the direction of force on wire 2 from wire 1 in a parallel current-carrying wire system.

• By using the right-hand rule, the video explains how to determine the direction of the magnetic field and force between the wires.

• The video concludes that parallel wires with currents in the same direction experience a force of attraction between them.
