Numerical 1 on Stability of an automobile - Gyroscope - Dynamics of Machinery

TL;DR

This video discusses the stability of an automobile during a turn and determines the limiting speed of the vehicle.

Transcript

hello everyone in this video we'll discuss a numerical of stability of an automobile so the question we are given that each wheel of a four wheeled engine has moment of inertia 2.4 kilogram meter square so this is i w and effective diameter is 660 mm so radius will be 330 mm the rotating parts uh the moment of inertia for rotating parts is given as... Read More

Key Insights

• 🏋️ The stability of an automobile during a turn depends on the balance between the weight, gyroscopic couple, and centrifugal force reactions.
• 🏋️ The reaction due to weight is always upward, while the reactions due to the gyroscopic couple and centrifugal force vary depending on the direction of rotation and turn direction.
• 🥳 The gear ratio plays a crucial role in determining the reaction due to the engine rotating parts.
• 🏋️ The stability condition requires the weight reaction to be greater than or equal to the sum of the reactions due to the gyroscopic couple and centrifugal force.

Questions & Answers

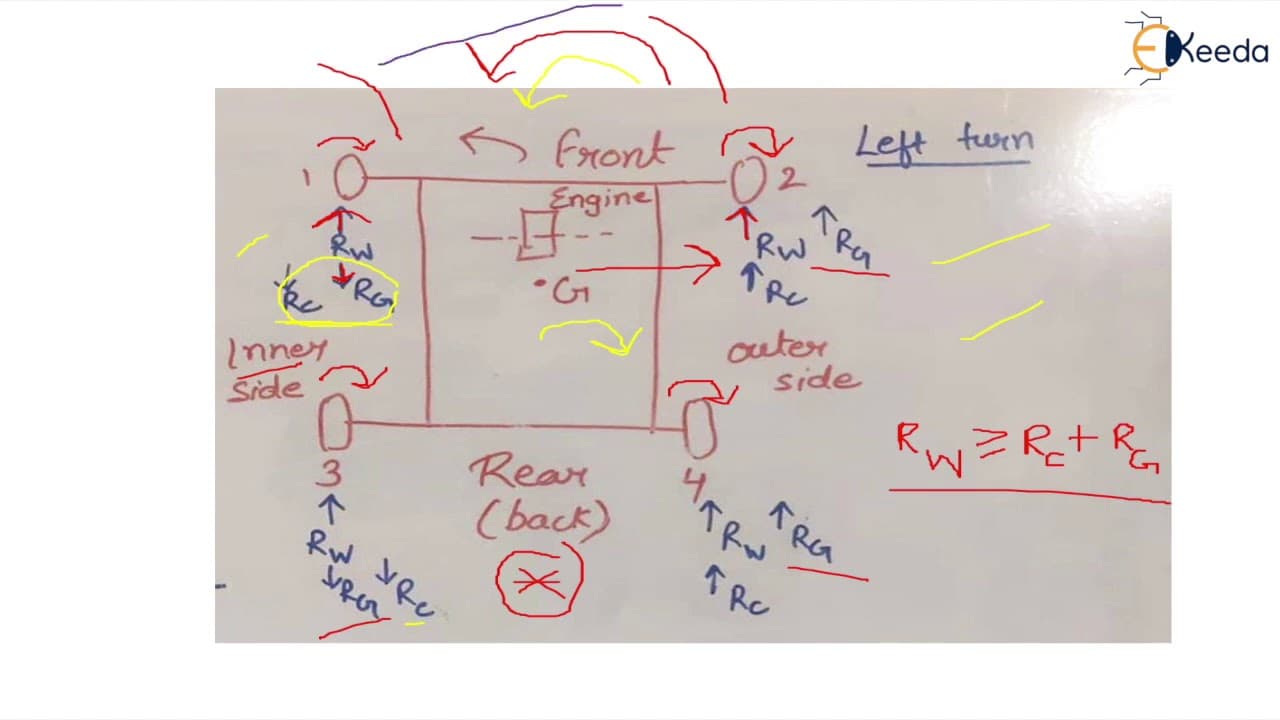

Q: What are the three reactions acting on the wheels of a four-wheeled automobile during a turn?

The reactions are weight, gyroscopic couple, and centrifugal force. The weight reaction is always upward, while the gyroscopic and centrifugal force reactions vary depending on the direction of rotation and turn direction.

Q: How can the stability of a vehicle be determined during a turn?

The stability is determined by comparing the weight reaction with the reactions due to the gyroscopic couple and centrifugal force. If the weight reaction is greater than or equal to the sum of the other two reactions, the vehicle is stable.

Q: How is the gyroscopic couple calculated for the wheels of an automobile?

The gyroscopic couple is calculated by multiplying the moment of inertia of the wheels by the angular velocity of the wheels divided by the radius of curvature. This value is then multiplied by four, considering all four wheels.

Q: What is the significance of the gear ratio in stability analysis?

The gear ratio is used to relate the angular velocity of the engine rotating parts to the angular velocity of the wheels. It helps determine the reaction due to the engine rotating parts, which affects the stability of the vehicle.

Summary & Key Takeaways

• The video analyzes the stability of a four-wheeled automobile during a turn with an 80-meter radius.

• The reactions acting on the wheels include weight, gyroscopic couple, and centrifugal force.

• The condition for stability is that the weight reaction should be greater than or equal to the reactions due to the gyroscopic couple and centrifugal force.
