Transistor Audio Mixer Circuit

TL;DR

This video explains how to create an audio mixer circuit, which involves an amplifier circuit with multiple inputs.

Transcript

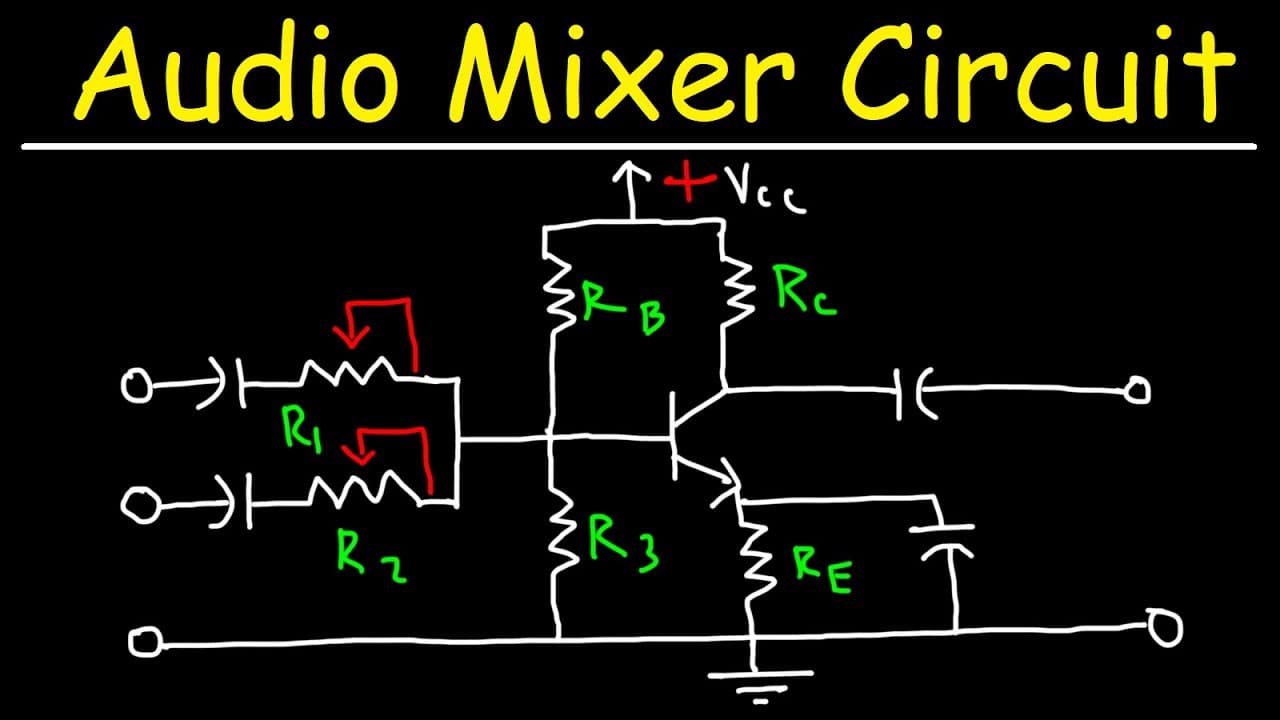

in this video we're going to talk about how to draw an audio mixer circuit so basically what we need is an amplifier circuit with multiple inputs so let's start with the first input we're going to have a capacitor and we're going to have a potential meter the purpose of the potentiometer is to control the volume at the input at the same time it man... Read More

Key Insights

• 😒 The audio mixer circuit uses an amplifier circuit with multiple inputs to mix multiple signals.
• ⚡ Potentiometers, capacitors, and resistors are crucial components for controlling voltage, volume, and reducing distortion.
• 🧑‍🤝‍🧑 Voltage dividers and coupling capacitors help separate DC and AC signals effectively.
• ⚡ The choice of collector resistance and collector supply voltage can affect the voltage gain of the circuit.

Questions & Answers

Q: What is the purpose of a potentiometer in the audio mixer circuit?

The potentiometer controls the volume at the input and manages the input voltage, preventing distortion by not driving the transistor to cut off or saturation mode.

Q: How does the bypass capacitor affect the circuit's voltage gain?

The bypass capacitor reduces the AC resistance, increasing the voltage gain of the entire circuit. It blocks DC but allows AC to pass through, improving the overall performance.

Q: How does increasing the collector supply voltage affect the circuit?

Increasing VCC raises the maximum AC output voltage the circuit can generate, thereby increasing the voltage gain. It allows for greater flexibility and customization.

Q: How do resistors RB and R3 impact the circuit's voltage?

RB and R3 form a voltage divider circuit that determines the voltage at point B. The voltage would be slightly lower than the calculated value due to the current drawn by the connected transistor.

Summary & Key Takeaways

• The audio mixer circuit consists of a capacitor and a potentiometer at each input, which helps control the volume and input voltage to minimize distortion.

• The inputs are connected to the base of a transistor, with an emitter resistor and a bypass capacitor to reduce AC resistance and increase voltage gain.

• Voltage dividers formed by resistors control the input voltage, while coupling capacitors block DC and allow AC to pass through. The collector resistance, RC, and collector supply voltage, VCC, can increase voltage gain.
