Numericals on Gyroscopic Effect on Naval Ships - Gyroscope - Dynamics of Machinery

TL;DR

This video discusses a numerical problem on gyroscopic effects on naval ships, including calculating gyroscopic couple and its effects in different scenarios.

Transcript

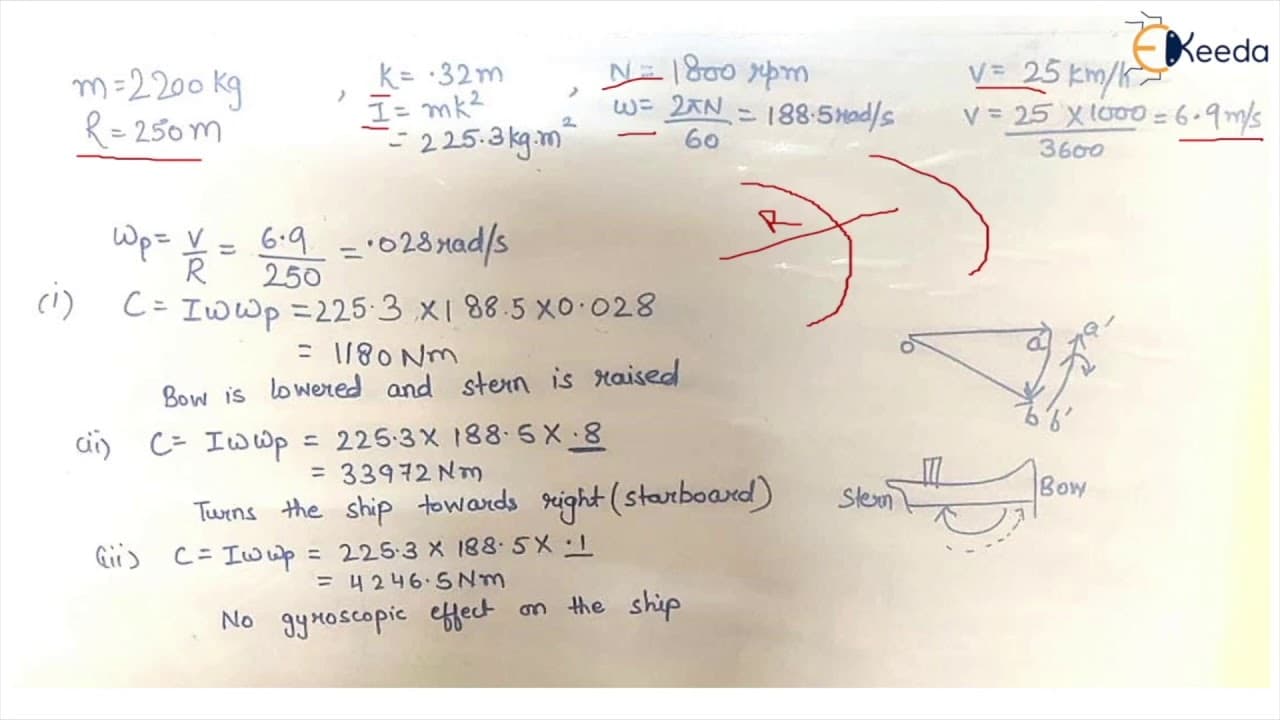

hello everyone in this video we'll discuss a numerical on gyroscopic effects on naval ships now the question says that there is a ship right and the ship the rotor of the turbine of ship it has a mass of 2.2 tons the speed of rotation that is omega is 1800 rpm and the sense is given clockwise when we are viewing from the aft that means from the ste... Read More

Key Insights

• ❤️‍🩹 The viewpoint (aft or rear end) is crucial in determining the direction and effects of the gyroscopic couple on naval ships.
• 🧑‍🤝‍🧑 The formula for calculating the gyroscopic couple is i * ωp, where i is the moment of inertia and ωp is the angular velocity of precession.
• ↘️ The gyroscopic couple tends to raise the stern and lower the bow of the ship when turning right.
• ⚓ When the bow of the ship rises, the gyroscopic couple acts in a counterclockwise direction, causing the ship to turn towards the left or port side.

Questions & Answers

Q: What are the key factors to consider when solving gyroscopic problems in naval ships?

When solving gyroscopic problems in naval ships, it is crucial to consider the viewpoint, whether it is from the aft or rear end. This affects the direction of the gyroscopic couple and its effects on the ship's movement.

Q: How is the gyroscopic couple calculated in the given problem?

The formula for calculating the gyroscopic couple is i * ωp, where i is the moment of inertia and ωp is the angular velocity of the precession. By substituting the given values, we can calculate the gyroscopic couple.

Q: What effect does the gyroscopic couple have when the ship turns right at a radius of 250 meters?

The gyroscopic couple tends to raise the stern and lower the bow of the ship when it turns right. This effect is due to the clockwise motion of the gyroscopic couple.

Q: What is the effect of gyroscopic couple when the bow of the ship rises at an angular velocity of 0.8 radians per second?

When the bow of the ship rises, the gyroscopic couple acts in a counterclockwise direction. This causes the ship to turn towards the left or port side.

Summary & Key Takeaways

• The video discusses a numerical problem on gyroscopic effects on naval ships, focusing on finding the gyroscopic couple and its effects in different situations.

• It emphasizes the importance of considering the viewpoint (aft or rear end) when solving gyroscopic problems.

• The video provides step-by-step calculations for finding the gyroscopic couple and examines its effects on ship turning and pitching.
