High Power and Gridded Control TWTs - Microwave Linear Beam Tubes O Type - Microwave Engineering

TL;DR

This video explains the concept of microwave linear beam tubes and the modifications made in graded control traveling wave tubes (TWTs) for handling high power with greater control.

Transcript

click the bell icon to get latest videos from akira hello friends i welcome you all to this video here we are going to end chapter two of microwave engineering in the chapter we have gone through the understanding of microbial linear beam tubes so microwave tubes are actually the essential modifications from the conventional vacuum tubes and they a... Read More

Key Insights

• 🧪 Microwave tubes are crucial for the generation and amplification of microwave signals in communication systems.
• 🎮 Graded control TWTs are modifications of conventional microwave tubes to handle high power with greater control over electron beam direction.

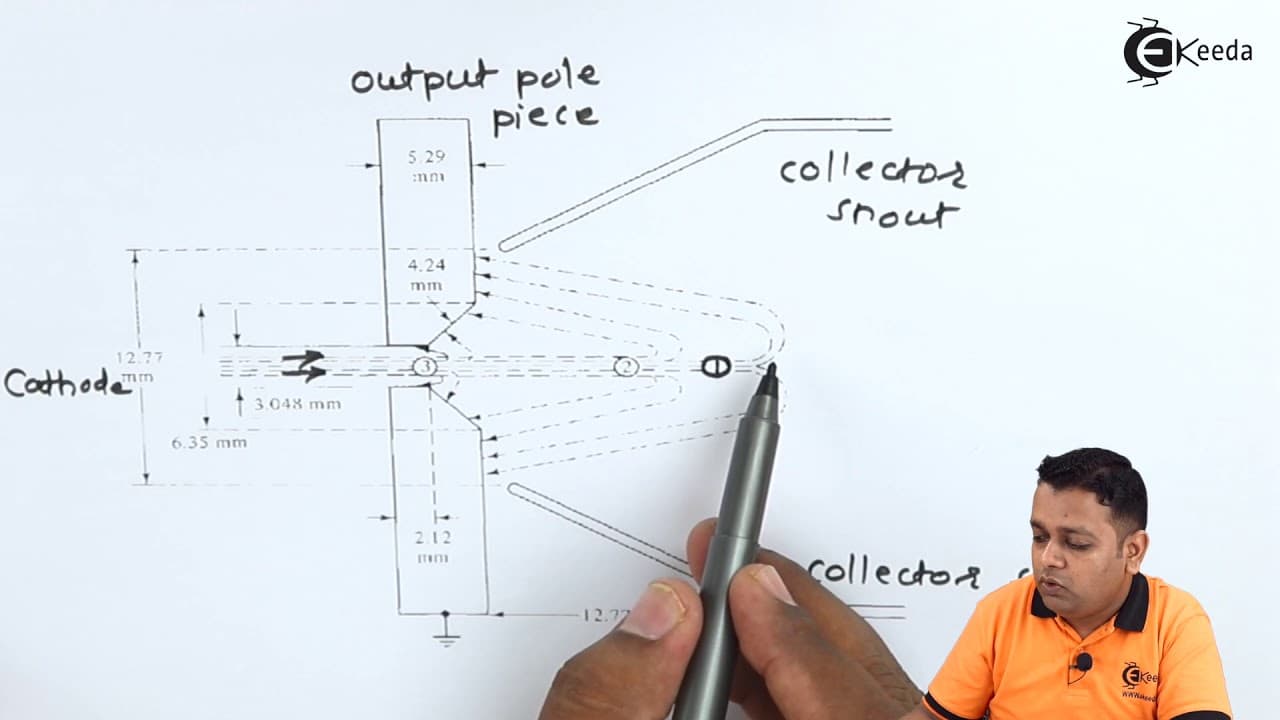

• 🎮 The shadow grid and control grid in graded control TWTs play a significant role in suppressing electron spreading and focusing the electron beam.

Questions & Answers

Q: What are microwave tubes used for?

Microwave tubes are used for generating and amplifying microwave signals. They are essential for the transmission and reception of microwave communication.

Q: How do graded control TWTs differ from conventional microwave tubes?

Graded control TWTs are a modification of conventional microwave tubes that offer better control over electron beam direction and reduce spreading. They are designed to handle high power efficiently.

Q: What is the purpose of a shadow grid and control grid in graded control TWTs?

The shadow grid, with a negative potential, allows a group of electrons to exit the cathode, while the control grid, with a slightly positive potential, suppresses electron spreading and focuses the beam towards the collector.

Q: Why is the collector voltage depressed in graded control TWTs?

Depressing the collector voltage by 40% with respect to the cathode voltage allows for better circuit efficiency. It ensures that the circuit efficiency is closer to the electronic efficiency, resulting in stable RF power amplification.

Summary & Key Takeaways

• Microwave tubes are essential modifications of conventional vacuum tubes used for generating or amplifying microwave signals.

• Graded control TWTs are a modification of helix traveling wave tubes, designed for high power handling and improved control over electron beam spreading.

• Graded control TWTs utilize a shadow grid, control grid, and focusing electrodes to control electron beam direction and reduce spreading.
