What Is a Spectrum Analyzer and How Does It Work?

TL;DR

A spectrum analyzer is a device used to analyze microwave signals in the frequency domain, displaying amplitude versus frequency. It includes components such as an input attenuator, tracking filter, mixer, and RF amplifier, allowing for detailed examination of frequency components in a signal. This transition from time domain to frequency domain highlights different representations of the same signal information.

Transcript

click the Bell icon to get latest videos from akira hello friends i welcome you all to this video we are with the 13th chapter of microwave engineering where we have the various parameters associated with the microwave signal generated and further processed and propagated through the different components so we have seen the VSWR which is the very i... Read More

Key Insights

• 📡 Spectrum analyzers are used to analyze microwave signals in the frequency domain.
• 📡 Spectrum refers to the frequency representation of a signal.
• 📞 Spectrum analyzers have a structure similar to superheterodyne receivers.
• 🤢 The main components of a spectrum analyzer include an attenuator, tracking filter, mixer, RF amplifier, and detector.
• ❓ Spectrum analyzers display the amplitude of frequency components in the spectrum plot.

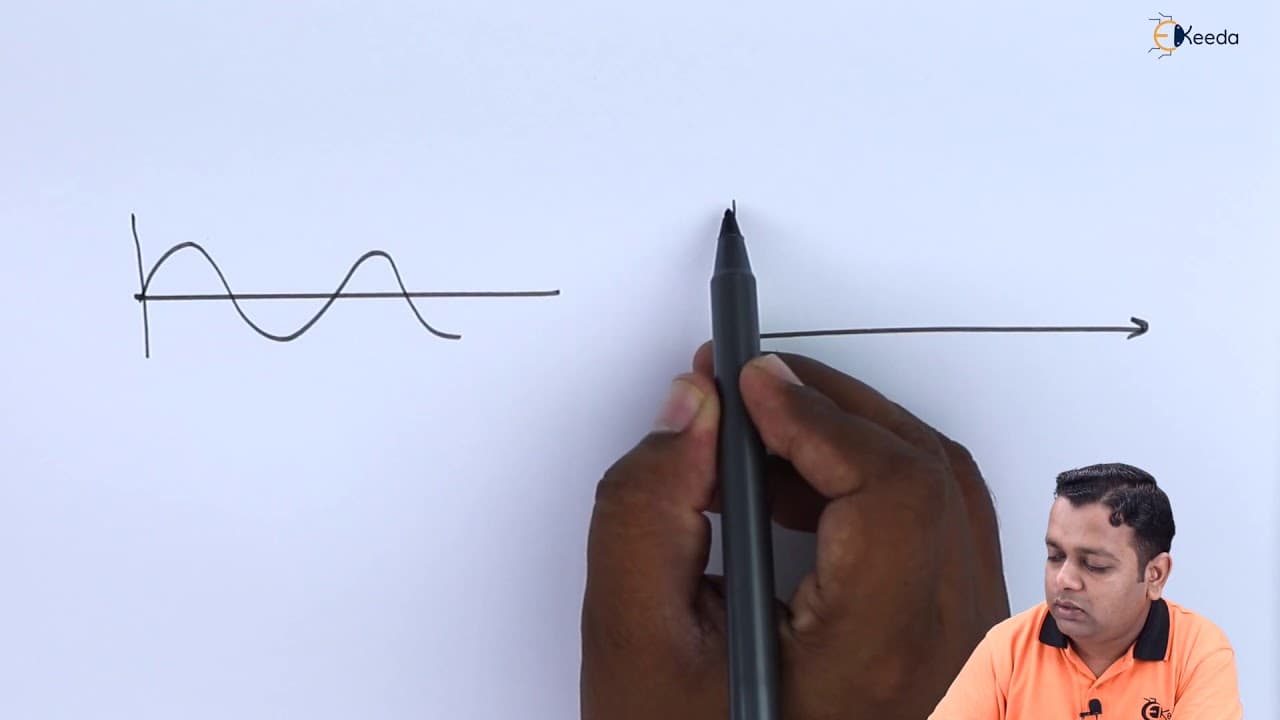

• ⌛ Time domain devices, like oscilloscopes, represent signal information in the time domain.
• 📡 Spectrum analyzers are useful for analyzing the frequency components of signals.

Questions & Answers

Q: What is a spectrum analyzer and what does it analyze?

A spectrum analyzer is a device used to analyze microwave signals in the frequency domain. It analyzes the spectrum, which refers to the frequency representation of a signal.

Q: How is a spectrum analyzer different from a time domain device like a cathode ray oscilloscope?

While a cathode ray oscilloscope represents signal information in the time domain (amplitude vs. time), a spectrum analyzer represents signal information in the frequency domain (amplitude vs. frequency).

Q: What are the components of a spectrum analyzer?

The main components of a spectrum analyzer include an input attenuator, input tracking filter, mixer, RF amplifier, and detector.

Q: How does a spectrum analyzer display the spectrum of a signal?

The spectrum analyzer displays the spectrum of a signal by plotting the amplitude of frequency components on the amplitude axis. The frequency values are represented on the frequency parameter axis.

Summary & Key Takeaways

• The video discusses the concept of spectrum, which refers to the frequency domain representation of a signal.

• The spectrum analyzer is a device used to analyze microwave signals in the frequency domain.

• The video explains the structure and components of a spectrum analyzer, including input attenuator, input tracking filter, mixer, RF amplifier, and detector.
