MATLAB Program Performance of QMF Bank

TL;DR

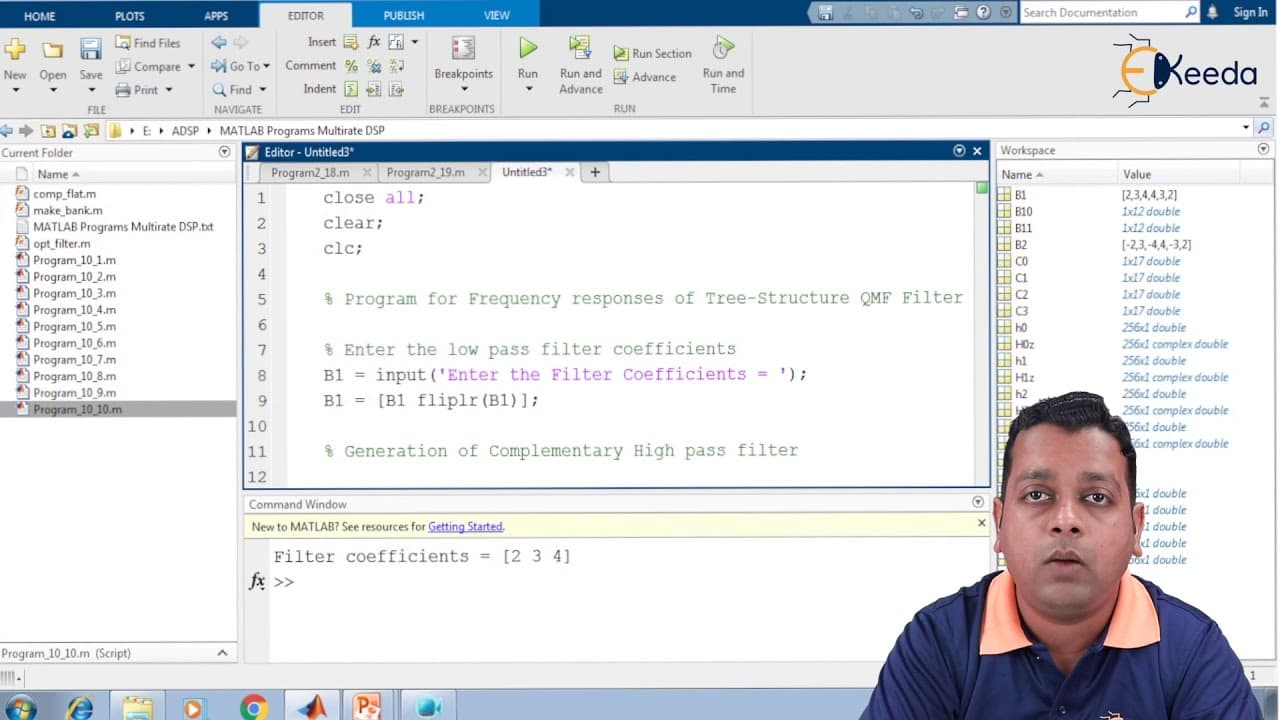

This video demonstrates a MATLAB program to illustrate the performance of a quadrature mirror filter (QMF) bank.

Transcript

hello friends I welcome you all to this video we are with the last video from the chapter 2 of advanced digital signal processing the chapter devoted to learn multi rate digital signal processing so in this chapter we started to know what exactly the key and very popular operations for multi DSP those are interpolation and decimation we have also u... Read More

Key Insights

• ☠️ Multi-rate digital signal processing involves interpolation and decimation operations.
• 🏦 The QMF filter bank is a popular tool in signal processing.
• 👻 The MATLAB program allows for real-time input of filter coefficients and plots the frequency responses of the QMF filter bank.

Questions & Answers

Q: What is the purpose of this MATLAB program?

This MATLAB program is designed to illustrate the performance of a quadrature mirror filter (QMF) bank through the computation and plotting of frequency responses.

Q: How can the filter coefficients be provided to the program?

The program prompts the user to enter the filter coefficients as an array in real-time from the command prompt. The number of coefficients should match the desired filter length.

Q: What are the four filters in the QMF filter bank?

The QMF filter bank consists of a low-pass filter, a complementary high-pass filter, and two intermediate filters. The filter coefficients for these four filters are determined using the provided input coefficients.

Q: How are the frequency responses of the filters computed?

The frequency responses are computed using the MATLAB 'freqz' function. The magnitude responses are then plotted against frequency to visualize the gains of the filters in the QMF filter bank.

Summary & Key Takeaways

• The video explores multi-rate digital signal processing and introduces the concepts of interpolation and decimation.

• It demonstrates the implementation of a QMF filter bank in MATLAB, including the initialization of filter coefficients and computation of frequency responses.

• The MATLAB program allows for real-time input of filter coefficients and plots the frequency responses of the four filters in the QMF filter bank.
