Coding Challenge #10.3: Maze Generator with p5.js - Part 3

TL;DR

A step-by-step explanation of a recursive backtracking algorithm for generating mazes using p5.js.

Transcript

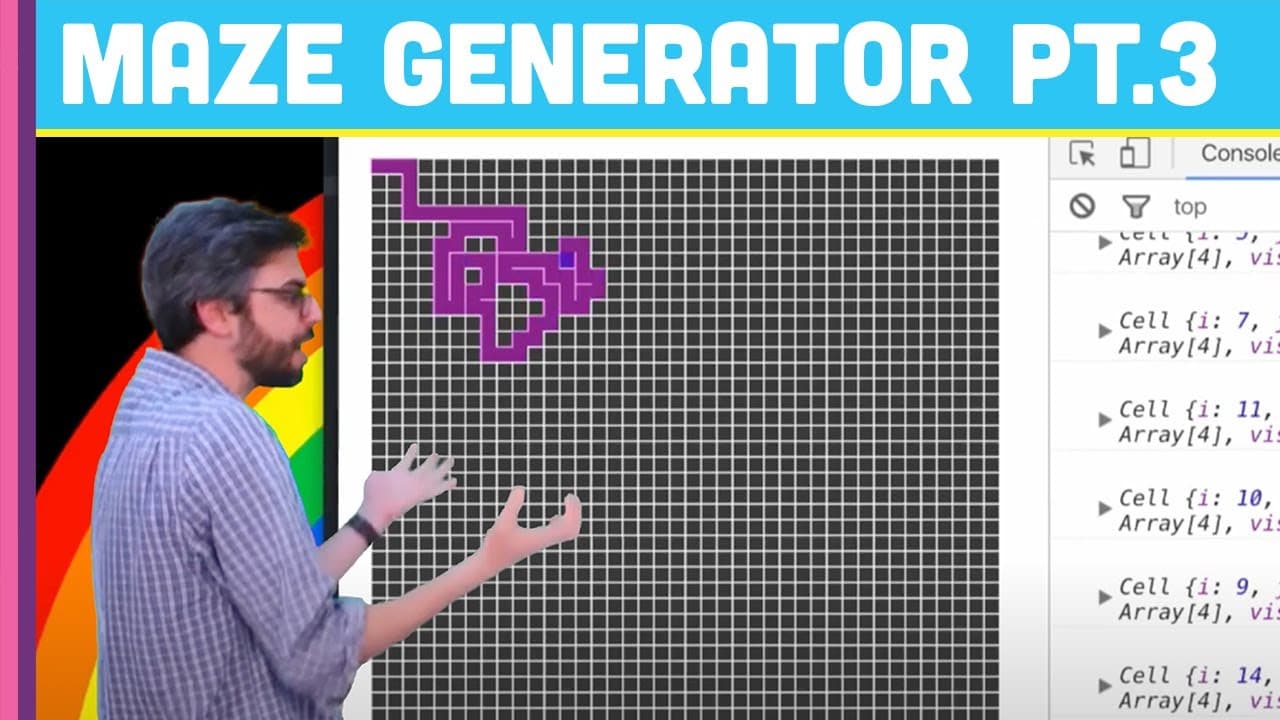

Welcome to part three of my depth first search recursive backtracking magic maze generating Algorithm in the browser using p5.js project So this is what [I'm] trying to make and where [I] am so far is kind of along the way there You can see this something similar is happening Here where I'm starting with a cell and a grid and I move to a cell next ... Read More

Key Insights

• 😲 The recursive backtracking algorithm is an efficient way to generate mazes, ensuring that all cells are reachable and forming a connected structure.
• 😲 By removing walls between cells, the algorithm creates passages that allow for finding paths through the maze.
• 😒 The use of a stack helps in backtracking, allowing the algorithm to explore different paths when it reaches a dead end.

Questions & Answers

Q: How does the recursive backtracking algorithm generate a maze?

The algorithm starts with a grid of cells and moves from one cell to another, randomly choosing an unvisited neighboring cell and marking it as visited. It continues until there are no unvisited neighbors left, effectively carving out a maze.

Q: Why is removing walls between cells important in maze generation?

Removing walls allows for creating passages between cells and forming a connected maze structure. It ensures that there is a path from any cell to any other cell in the maze.

Q: What is the purpose of the stack in the algorithm?

The stack is used to keep track of the path taken by the algorithm. Every time a cell is visited, it is pushed onto the stack. When there are no more unvisited neighbors, the algorithm pops a cell from the stack to continue exploring other possible paths.

Q: How does the algorithm determine which wall to remove between two cells?

The difference between the indices of the two cells is used to determine the relative position of the cells. A positive difference indicates a cell to the right or below, while a negative difference indicates a cell to the left or above. The algorithm then removes the appropriate wall(s) between the cells.

Summary & Key Takeaways

• The content explains the progress made in implementing a depth-first search recursive backtracking algorithm for maze generation in the browser using p5.js.

• The algorithm involves moving from one cell to another without revisiting already visited cells while removing walls between cells.

• The video focuses on implementing step 3 of the algorithm, which involves removing walls between the current cell and the chosen cell.

• The content also discusses the need for backtracking and promises to cover it in the next video.
