Description of Creep in Belt - Description of Belt and Belt Drives - Kinematics of Machinery

TL;DR

Belt creep refers to the unequal stretching of the belt during power transmission, resulting in a loss of power and reduced speed of the driven pulley.

Transcript

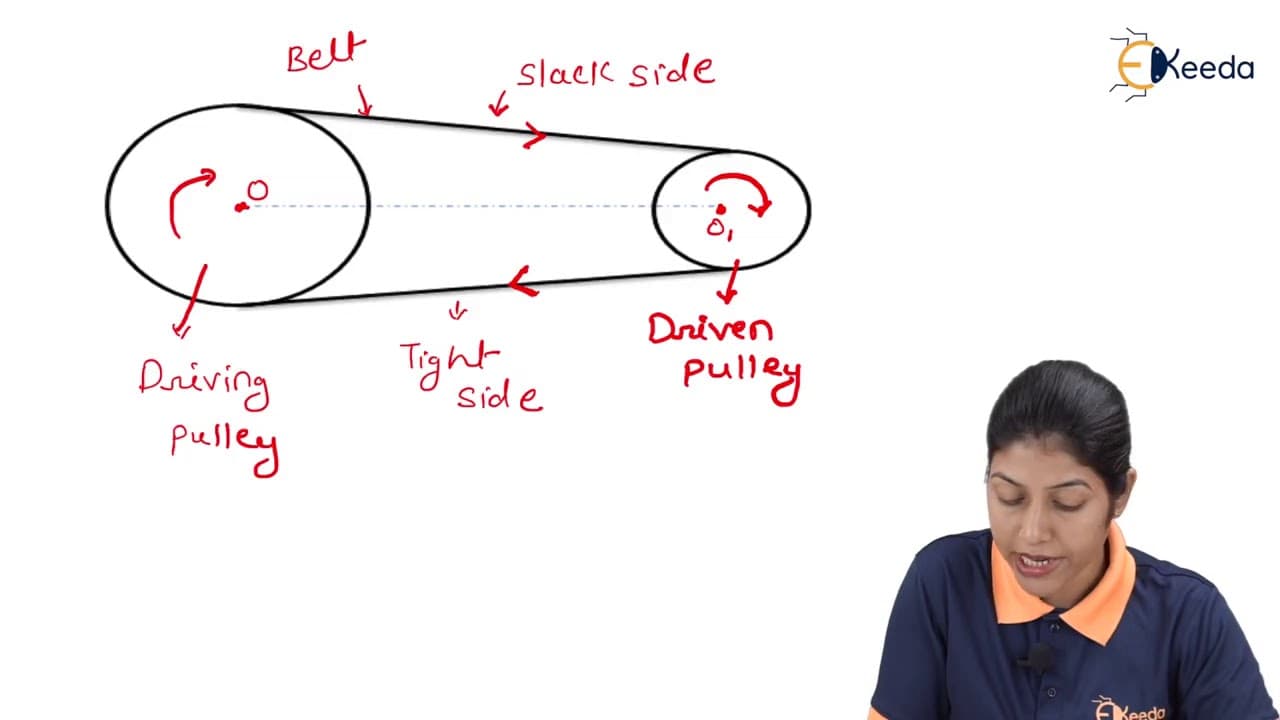

hello friends in this video I'm going to discuss about creep and belt creep generally define the loss of power in the belt so let's start the description of creep in the belt so creep generally represent the loss of power when we are transferring the power from driving pulley to driven pulley with the help of belt so here if we define creep in the ... Read More

Key Insights

• ✊ Belt creep represents the loss of power in a belt during power transmission between pulleys.
• 🏷️ The unequal stretching of the belt due to motion from the tight side to the slick side causes the creep.
• ✊ The length variation in the belt affects the speed of the driven pulley, resulting in power loss.
• 🥳 The velocity ratio in the condition of creep is determined by the pulley diameters, modulus of elasticity, and stress in the belt.

Questions & Answers

Q: What is belt creep?

Belt creep is the motion of the belt relative to the driving and driven pulleys due to unequal stretching, resulting in power loss during transmission.

Q: How does belt creep affect power transmission?

Belt creep causes a reduction in the speed of the driven pulley, leading to a decrease in the quantity of power transferred between the pulleys.

Q: What factors contribute to belt creep?

Belt creep occurs due to the unequal stretching of the belt. The motion from the tight side to the slick side and vice versa causes variations in the belt's length.

Q: How is the velocity ratio affected by creep in a flat belt drive?

The velocity ratio in the condition of creep is calculated using a formula that includes the diameter of the pulleys and the modulus of elasticity and stress of the belt material.

Summary & Key Takeaways

• Belt creep is the loss of power in a belt during power transmission between a driving pulley and a driven pulley.

• It occurs due to the unequal stretching of the two sides of the belt, resulting in motion relative to the pulleys.

• The varying length of the belt causes a reduction in the speed of the driven pulley, leading to power loss.
