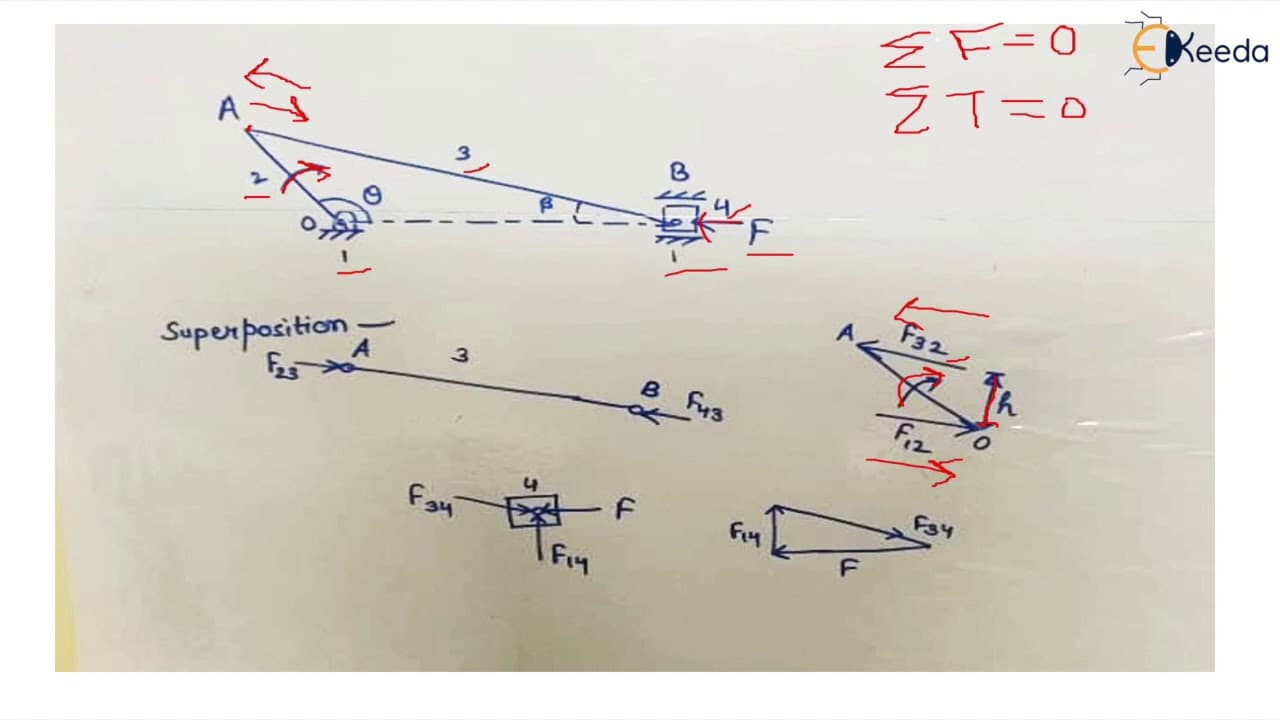

This video discusses the static force analysis of a slider crank mechanism, focusing on free body diagrams, superposition method, and the equilibrium of forces and torques.

Transcript

hello everyone in this video we'll discuss about static force analysis of slider crank mechanism now we know that for static equilibrium in any system the vector sum of all the forces should be equal to zero and vector sum of all the torques should be equal to zero now to do the analysis of any system whether it's slider correct mechanism or four b... Read More

Key Insights

• 🍹 Static equilibrium requires the sum of forces and torques to be zero.
• 🥶 Free body diagrams are essential for analyzing individual components of a mechanism.
• 🖐️ Reaction forces between connected links play a crucial role in determining unknown forces.
• ❓ Vector diagrams can be used to find the resultant of multiple forces.
• 🦻 The superposition method aids in identifying unknowns in a system.
• ❓ External and reaction forces must be considered in force analysis.
• ✖️ Torques can be calculated using the concept of force multiplied by perpendicular distance.

Questions & Answers

Q: What is the key requirement for static equilibrium in any system?

The vector sum of all forces should be zero, and the vector sum of all torques should also be zero.

Q: How is the analysis of a slider crank mechanism conducted?

The analysis involves breaking down the system into individual links, studying their free body diagrams, and applying the principles of superposition.

Q: What role do action-reaction forces play in the analysis?

Action-reaction forces exist in pairs between connected links, and when separating out each link, these forces become significant for analysis.

Q: How can the value of an unknown force or torque be found?

By using the concept of torque as force multiplied by perpendicular distance, the value of a force or torque can be determined based on given values.

Summary & Key Takeaways

• Static force analysis requires the vector sum of forces and torques to be zero for equilibrium in any system.

• The free body diagrams of individual components are studied to identify unknowns using the superposition method.

• External forces and torques are considered along with reaction forces between connected links.
