Design of Bush Pin Type Coupling - Numerical Part 01 - Design of Shaft, Keys & Couplings

TL;DR

Design a suitable coupling to transmit 10 kilowatts at 960 rpm using the design procedure of bush pin type coupling.

Transcript

click the bell icon to get latest videos from ekeeda hello friends welcome back to the subject of machine design one we are right now learning about the design procedure of bush pin type coupling which is also a kind of flexible coupling today let us solve a numerical based on the same aspect so friends you can see the numerical statement on the sc... Read More

Key Insights

• 😴 The design procedure of a bush pin type coupling involves selecting a suitable prime mover and coupling based on given parameters.
• 📶 Material selection for different components is crucial to ensure the coupling's strength and performance.
• 🫢 The use of a rubber bush in the coupling provides benefits such as shock absorption and proper alignment.
• 📔 Phd data books and standard coupling designations can be referenced for selecting appropriate dimensions and parameters.

Questions & Answers

Q: What is the purpose of a bush pin type coupling in machine design?

A bush pin type coupling is a flexible coupling used to transmit power between a prime mover and a driven end, allowing for slight misalignments in the shaft.

Q: How is the power to be transmitted calculated in the given numerical problem?

The power to be transmitted is calculated using the formula: Torque (Nm) = (Power (kW) * 1000) / (2π * RPM).

Q: Why is an electric motor selected as the prime mover in this scenario?

An electric motor is the most suitable prime mover because the given power requirement is not high, and the expected RPM is not large.

Q: How is the material selection done for different components of the coupling?

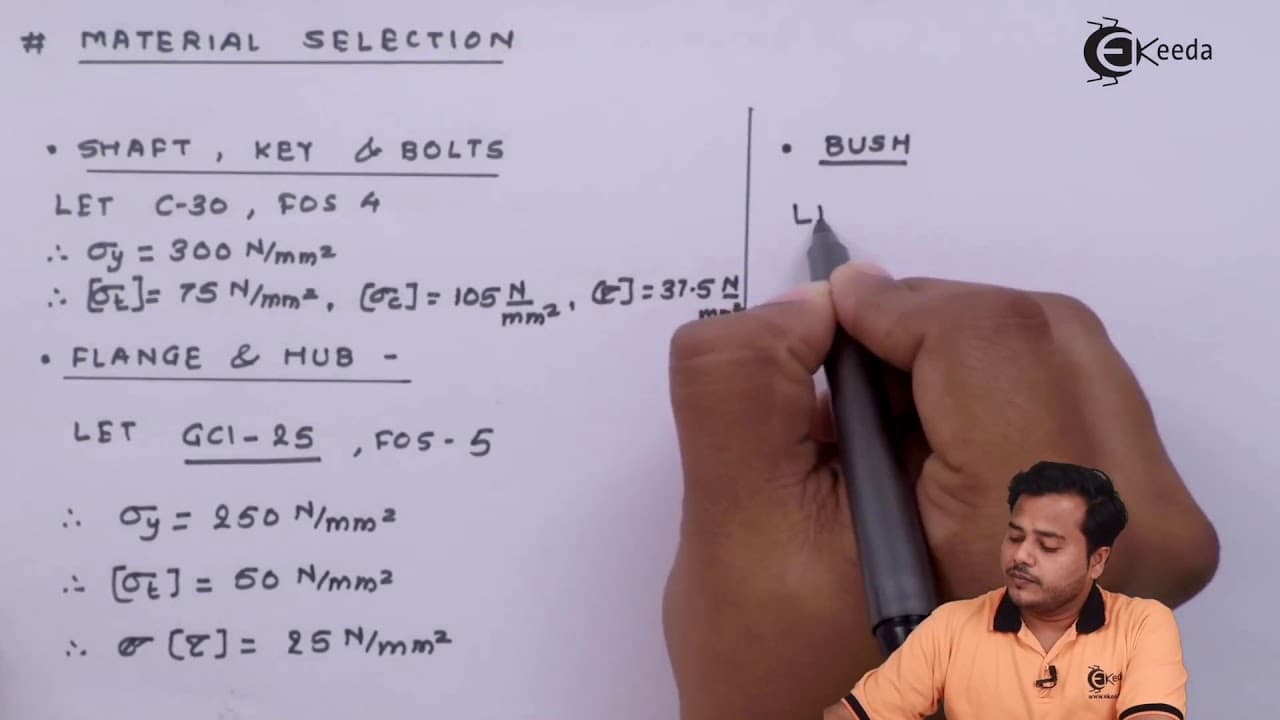

The material selection is done based on factors such as strength, stress limits, and application requirements. In this case, C30 steel is selected for shafts, keys, and bolts, while cast iron (GCI25) is chosen for hubs and flanges. A rubber bush is selected for shock absorption and proper alignment.

Summary & Key Takeaways

• The video focuses on solving a numerical problem related to the design procedure of bush pin type coupling in machine design.

• The power to be transmitted is given as 10 kilowatts with an rpm of 960.

• The selection of a proper prime mover (electric motor) and a suitable coupling (flexible coupling of bush pin type) is discussed.
