Screw/screw gearing

TL;DR

This video explores different types of geared mechanisms, including spur gears, bevel gears, worm drives, and translate/translate gears.

Transcript

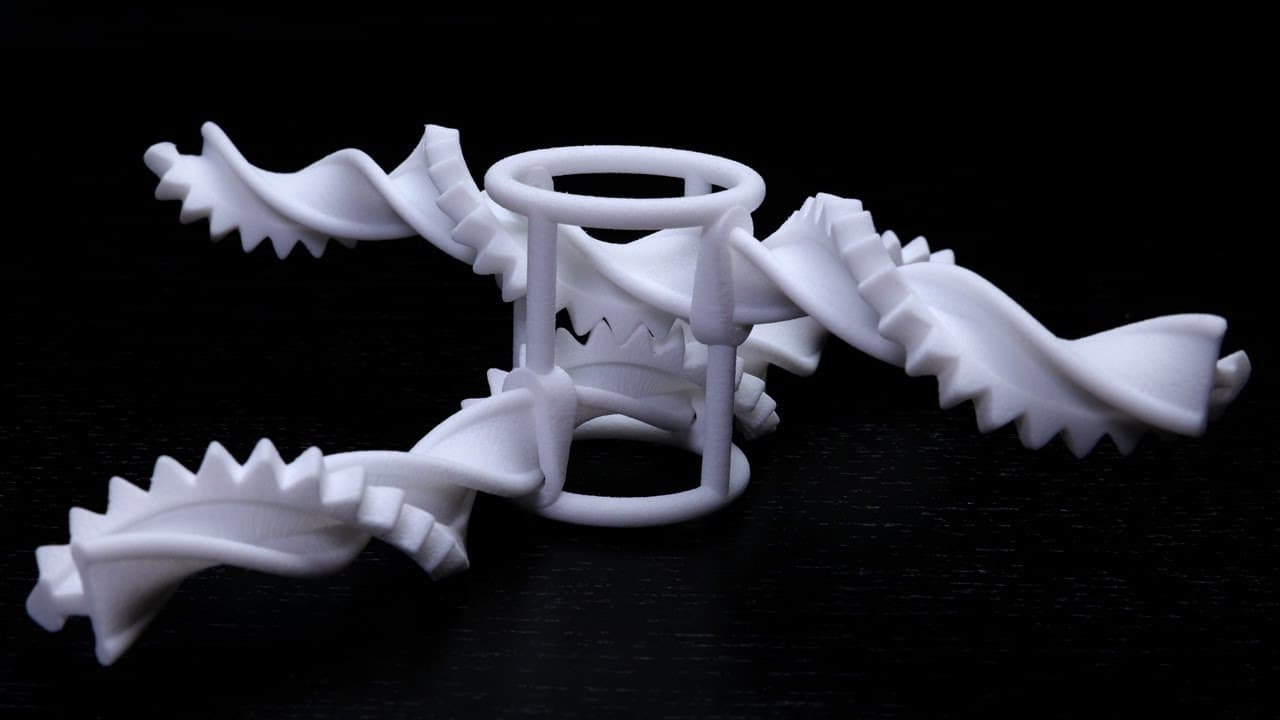

Hi, I'm Henry Segerman, and we'll get to this thing later on. But first, let's look at gears. There are lots of different kinds of geared mechanism. Here are three of them: spur gears, bevel gears, and this is a worm drive. In all of these mechanisms, there are two "gear" parts and a third "frame" part that the gears are attached to and rotate rela... Read More

Key Insights

• 🧩 Different types of geared mechanisms include spur gears, bevel gears, worm drives, rack and pinion, and Borromean racks. These mechanisms vary in the position of axles and types of motion.
• ⚙️ The Triple helix design features two gears rotating at the same speed, similar to a worm drive, but different from other rotating gear mechanisms.
• 🚿 Corkscrews utilize a rotate/screw geared mechanism, with the extractor following a screw motion as it screws into the cork. However, during cork extraction, the levers slide out, creating a rotate/translate motion.
• 🔧 Adjustable spanners have a translate/screw gearing, with the worm gear causing the jaw to slide when the handle rotates, or vice versa depending on the chosen frame of the mechanism.
• 🔄 The teeth on spur gears, racks, and bevel gears are designed to transfer force efficiently, while the tooth shape on the helical gears in this demonstration is based on a simple sine wave.
• 🛠️ No known examples of a screw/screw geared mechanism were mentioned, but the presented helical gear design shows potential for further exploration of rotate/screw and translate/screw mechanisms.
• 📐 The shapes of the teeth on helical gears could be subject to further research to determine the most efficient transfer of force and optimize their functionality.
• 🎓 This video provides insights into various geared mechanisms, illustrating the different combinations of motion and showcasing potential areas for further study and research.

Questions & Answers

Q: What are the three types of geared mechanisms discussed in the video?

The three types of geared mechanisms discussed in the video are rotate/rotate, rotate/translate, and translate/translate.

Q: What is the difference between spur gears and bevel gears in terms of axle positioning?

Spur gears have axles that are parallel to each other and rotate in a common plane, while bevel gears have axles at an angle and meet at a point.

Q: How does a rack and pinion mechanism work?

A rack and pinion mechanism consists of a gear (pinion) that rotates and a rack that translates instead of rotating. The pinion's movement causes the rack to slide.

Q: What is an example of a rotate/translate geared mechanism shown in the video?

An adjustable spanner is an example of a rotate/translate geared mechanism shown in the video. Depending on the frame of reference, either the handle or the jaw can be considered the frame, leading to a different type of motion.

Summary & Key Takeaways

• The video discusses three types of geared mechanisms: rotate/rotate, rotate/translate, and translate/translate.

• It showcases examples of each type, such as spur gears, worm drives, rack and pinion mechanisms, and Borromean racks.

• The video also introduces the concept of screw motions in geared mechanisms and presents examples like a corkscrew and an adjustable spanner.
